9 Package Parameters

The FT120 is available in two different packages. The FT120T is the TSSOP-28 package option and the

FT120Q is the QFN-28 package option. The solder reflow profile for both packages is described in Section

9.5.

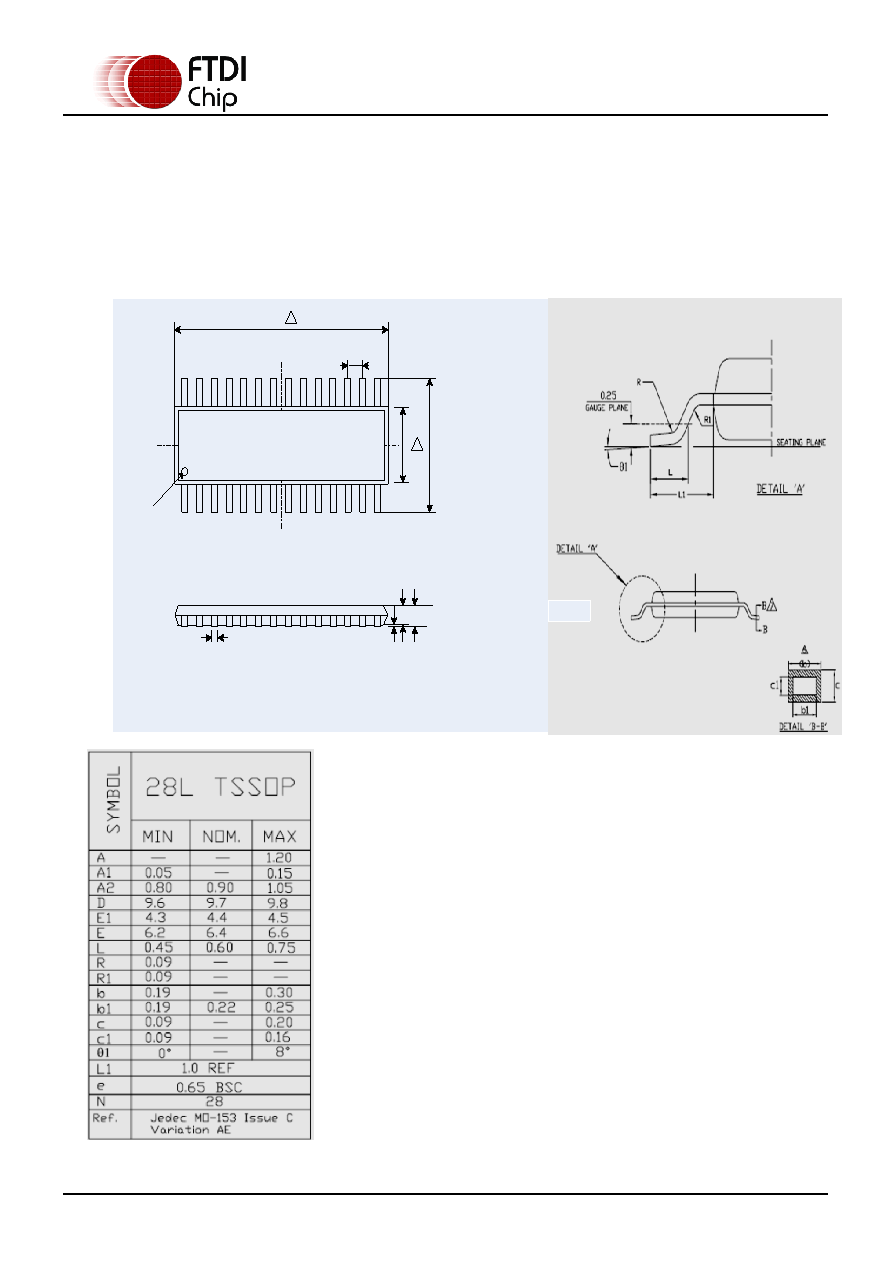

Figure 9-1 TSSOP-28 Package Dimensions

Pin 1

ID MARK

1 2 3

N

CL

CL

E1 4

E

D

3

e

b

SEATING PLANE

A1

A2

A
