FT120 USB DEVICE CONTROLLER WITH PARALLEL BUS IC
Datasheet Version 1.2
Clearance No.: FTDI#
291
3 Device Pin Out and Signal Description
3.1 TSSOP-28 Package Pin Out

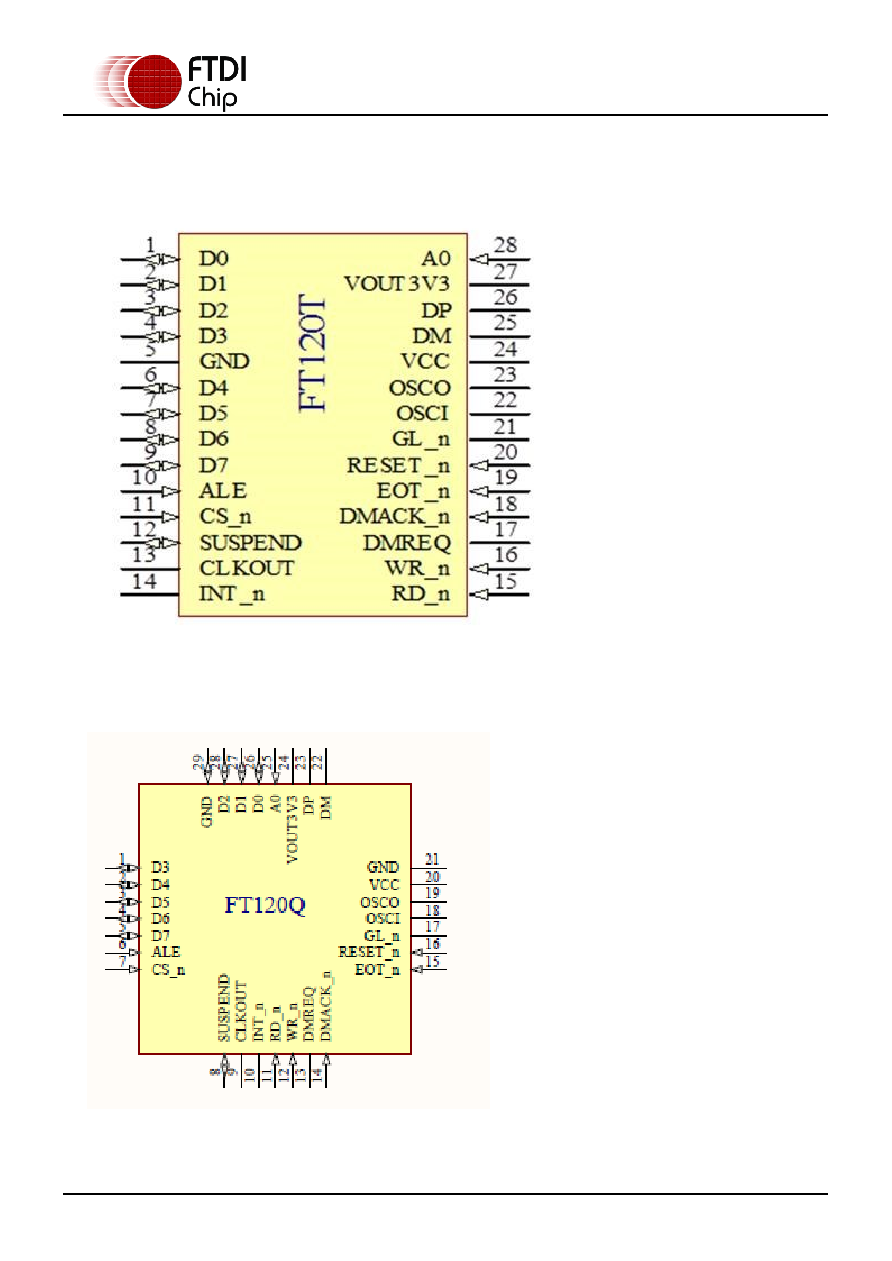

Figure 3-1 TSSOP-28 package schematic symbol
3.2 QFN-28 Package Pin Out
Figure 3-2 QFN-28 package schematic symbol
