FT121 ENHANCED USB DEVICE CONTROLLER WITH SPI SLAVE IC
Datasheet Version 1.2
Clearance No.: FTDI#
312
3 Device Pin Out and Signal Description
3.1 TSSOP-16 Package Pin Out

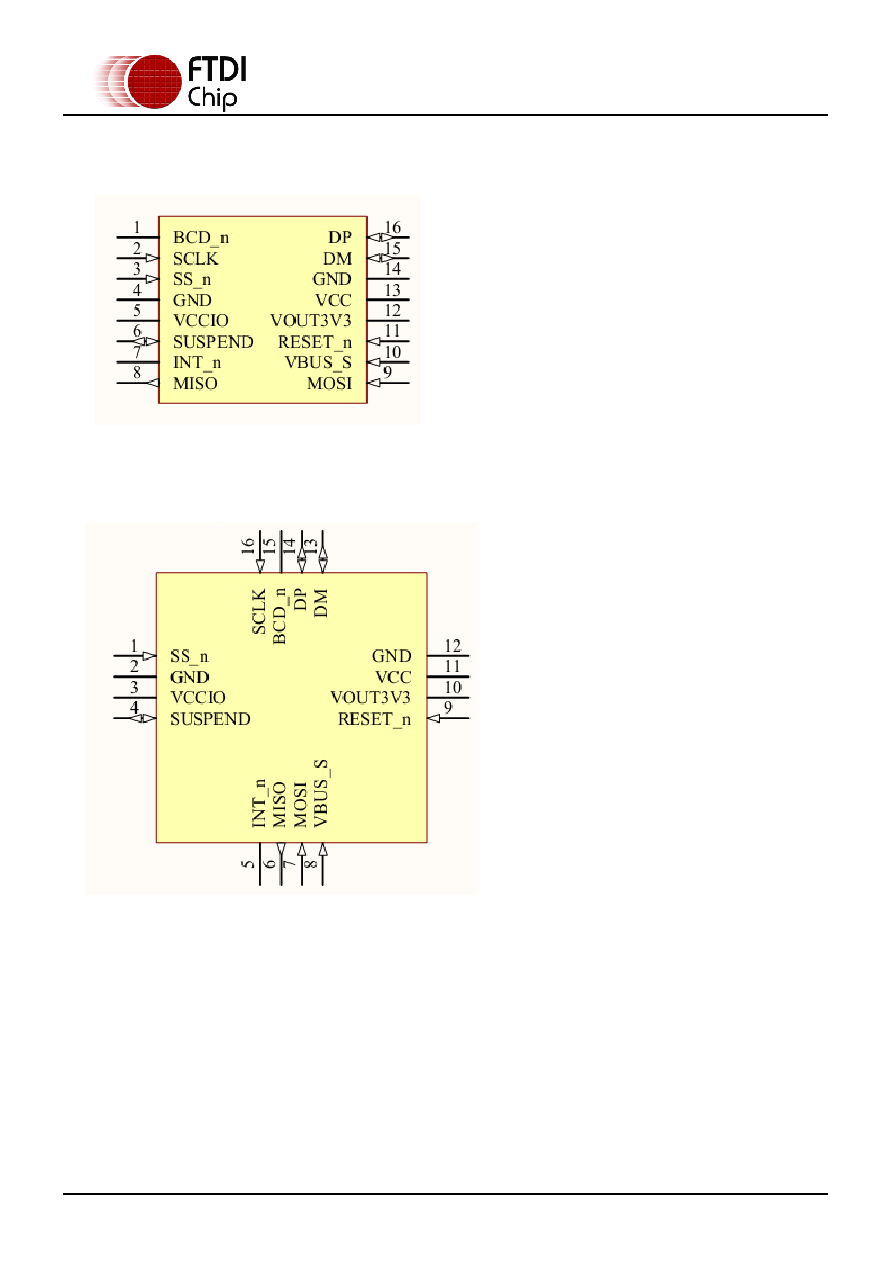

Figure 3-1 TSSOP-16 package schematic symbol
3.2 QFN-16 Package Pin Out
Figure 3-2 QFN-16 package schematic symbol
NOTE: Bottom Side centre pads not shown on QFN Pin Out:
Ground
Bottom View Location = Upper right
VCCIO
Bottom View Location = Lower right
VOUT3V3
Bottom View Location = Lower left
VCC
Bottom View Location = Upper left
See QFN Package information in Section 9.3 below for more details. They may be left unconnected.
