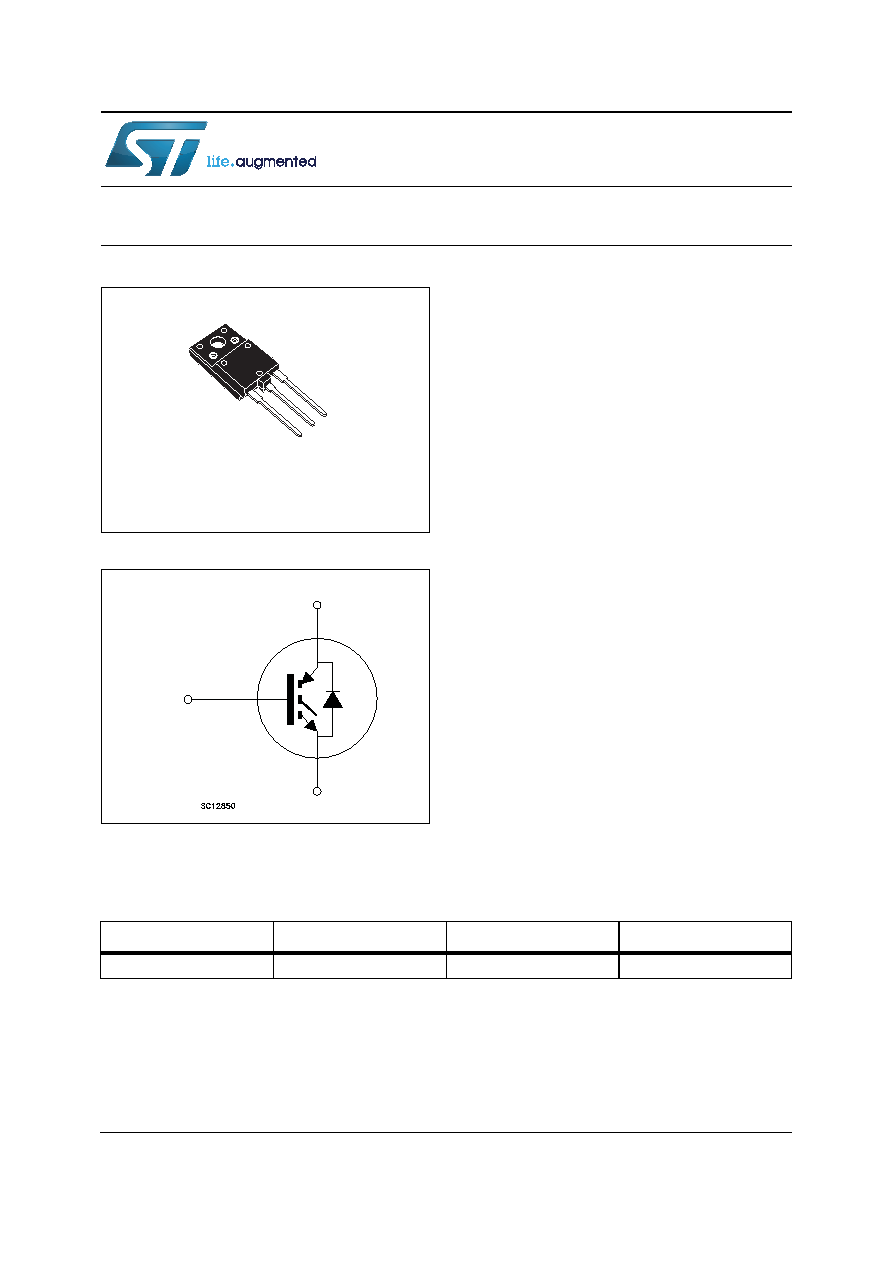

1 / 15 page

This is information on a product in full production.

March 2014

DocID026149 Rev 1

1/15

15

STGFW30V60DF

Trench gate field-stop IGBT, V series

600 V, 30 A very high speed

Datasheet

- production data

Figure 1. Internal schematic diagram

Features

• Maximum junction temperature: TJ = 175 °C

• Tail-less switching off

• VCE(sat) = 1.85 V (typ.) @ IC = 30 A

• Tight parameters distribution

• Safe paralleling

• Low thermal resistance

• Very fast soft recovery antiparallel diode

Applications

• Photovoltaic inverters

• Uninterruptible power supply

• Welding

• Power factor correction

• Very high frequency converters

Description

This device is an IGBT developed using an

advanced proprietary trench gate field stop

structure. The device is part of the V series of

IGBTs, which represent an optimum compromise

between conduction and switching losses to

maximize the efficiency of very high frequency

converters. Furthermore, a positive VCE(sat)

temperature coefficient and very tight parameter

distribution result in safer paralleling operation.

C (2)

G (1)

E (3)

TO-3PF

1

2

3

Table 1. Device summary

Order code

Marking

Package

Packaging

STGFW30V60DF

GFW30V60DF

TO-3PF

Tube

www.st.com
