STLED325
Functional and application diagram
Doc ID 17576 Rev 1
9/62

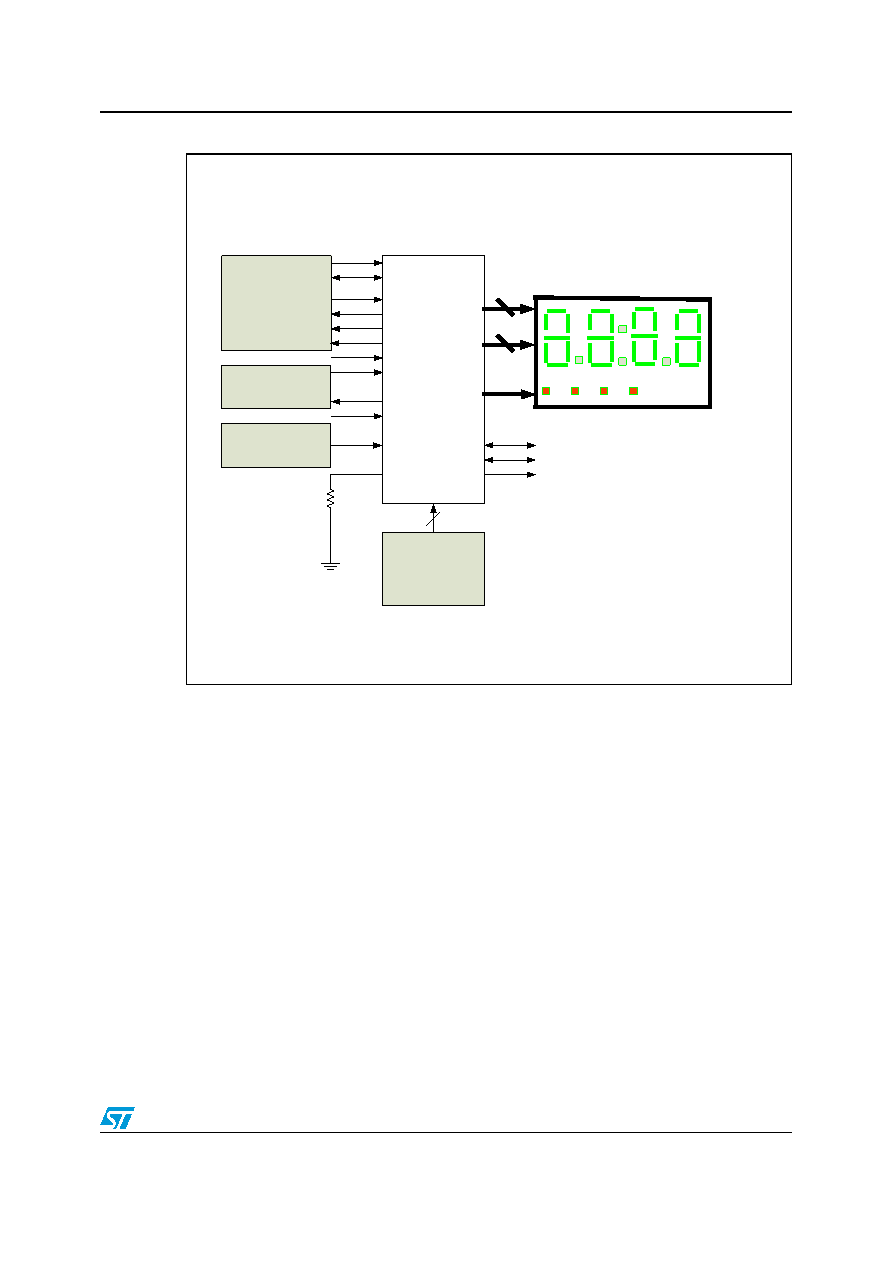

Figure 2.
Application diagram
Microcontroller or
CPU
Key scan
(8x2 matrix)
SCL
SDA
STLED325
XIN
External
32.768KHz crystal
XOUT
From remote
control sensor
IR_IN
STBY
ISET
R
2
KEY1-KEY2
SEG1/KS1-
SEG8/KS8
DIG1-DIG4
IRQ_N
4
8
LED 4-digit 7-segment (+dot-point) display panel
PWR
STBY
REC
MUTE
DIG5
READY
WAKE_UP
VBAT
GPIO1
GPIO2
MUTE
From sensor/To LED
From sensor/To LED
Connect to external
capacitor
VREG
