DocID024229 Rev 3
39/58
STTS2004
SPD EEPROM operation
58

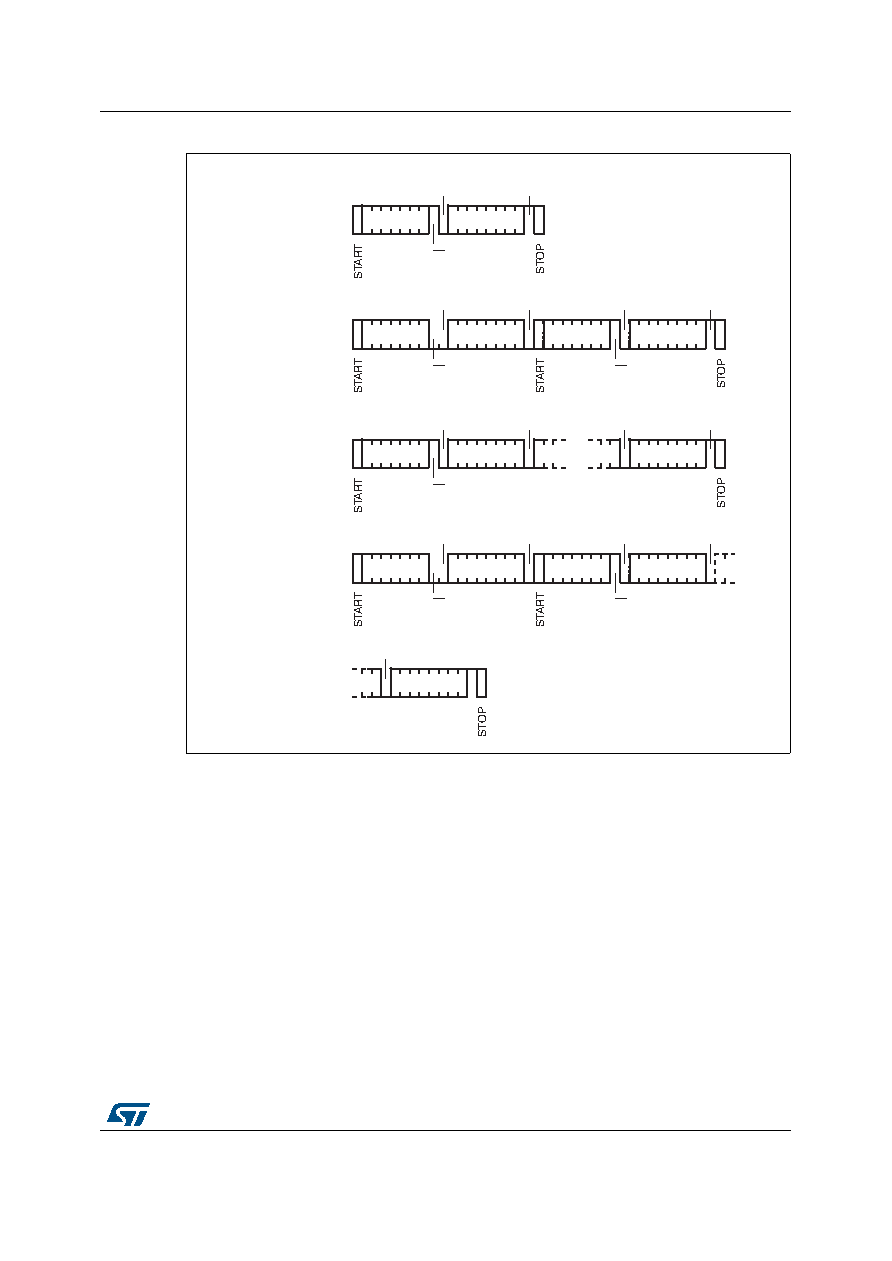

Figure 15. Read mode sequences
DEV SEL
(1)
BYTE ADDR
DEV SEL
DATA OUT 1
AI01942
DATA OUT N
CURRENT
ADDRESS
READ
DEV SEL
DATA OUT
RANDOM
ADDRESS
READ
DEV SEL
(1)
DATA OUT
SEQUENTIAL
CURRENT
READ
DATA OUT N
DEV SEL
(1)
BYTE ADDR
SEQUENTIAL
RANDOM
READ
DEV SEL
(1)
DATA OUT 1
ACK
R/W
NO ACK
ACK
R/W
ACK
ACK
R/W
ACK
ACK
ACK
NO ACK
R/W
NO ACK
ACK
ACK
R/W
ACK
ACK
R/W
ACK
NO ACK
