Application information

LNBH25LS

8/30

DocID026753 Rev 3

2.3

Data encoding by external DiSEqC envelope control through

the DSQIN pin

If an external DiSEqC envelope source is available, it is possible to use the internal 22 kHz

generator activated during the tone transmission by connecting the DiSEqC envelope

source to the DSQIN pin. In this case the I²C tone control bits must be set: EXTM = 0 and

generate the LNB output 22 kHz tone. During the period in which the DSQIN is kept HIGH,

the internal control circuit activates the 22 kHz tone output.

The 22 kHz tone on the VOUT pin actives with about 6 µs delay from the DSQIN TTL

signal rising edge, and it stops with a delay time in the range from 15 µs to 60 µs after the

22 kHz TTL signal on DSQIN has expired, refer to Figure 3: "Tone enable and disable

timing (using envelope signal)".

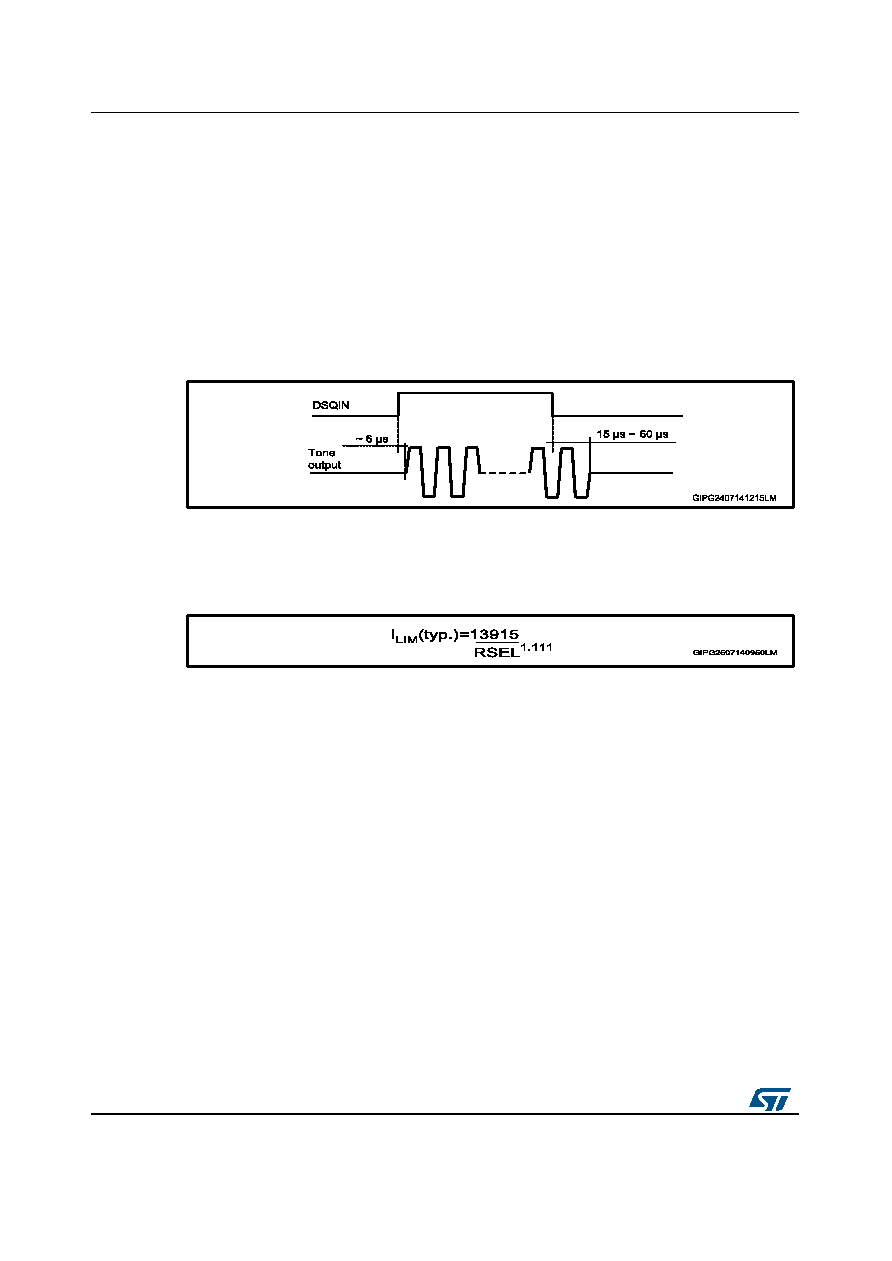

Figure 3: Tone enable and disable timing (using envelope signal)

2.4

Output current limit selection

The linear regulator current limit threshold can be set by an external resistor connected to

the ISEL pin. The resistor value defines the output current limit by the equation:

where RSEL is the resistor connected between ISEL and GND expressed in kΩ and

2.5

Output voltage selection

The linear regulator output voltage level can be easily programmed in order to accomplish

application specific requirements, using 4 bits of an internal data 1 register, see Section

7.3: "Data registers" and Table 13: "Output voltage selection table (data1 register, write

mode)" for exact programmable values. Register writing is accessible via the I²C bus.

2.6

Diagnostic and protection functions

The LNBH25LS has 3 diagnostic internal functions provided by I²C bus, by reading 3 bits

on the status 1 register (in read mode). All the diagnostic bits are, in normal operation (that

is no failure detected), set to LOW. Two diagnostic bits are dedicated to the

overtemperature and overload protection status (OTF and OLF). One bit is dedicated to the

input voltage (PNG) function. Once OLF (or OTF or PNG) bit has been activated (set to

“1”), it is latched to “1” until relevant cause is removed and a new register reading operation

is done.
