Parameter definitions
CS70
14/24
DocID026041 Rev 1

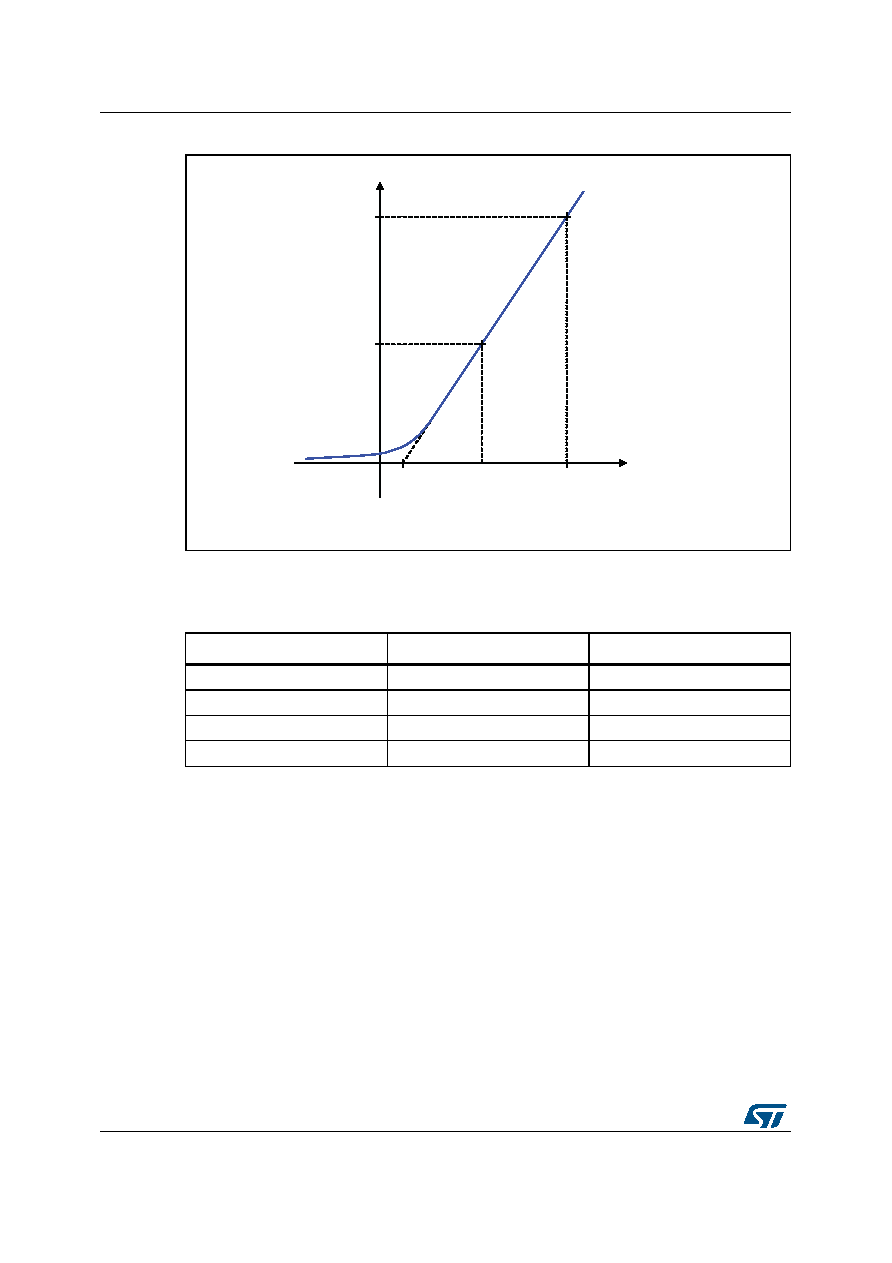

Figure 17. Vout versus Vsense characteristics: detail for low Vsense values
The values of Vsense1 and Vsense2 used for the input offset calculations are detailed in
Table 10.
Table 10. Test conditions for Vos voltage calculation
Av (V/V)
Vsense1 (mV)
Vsense2 (mV)
20
50
5
25
50
5
50
50
5
100
40
5
AM04520
Vos
Vsense2
Vsense
Vout
Vsense1
Vout_1
Vout_2
