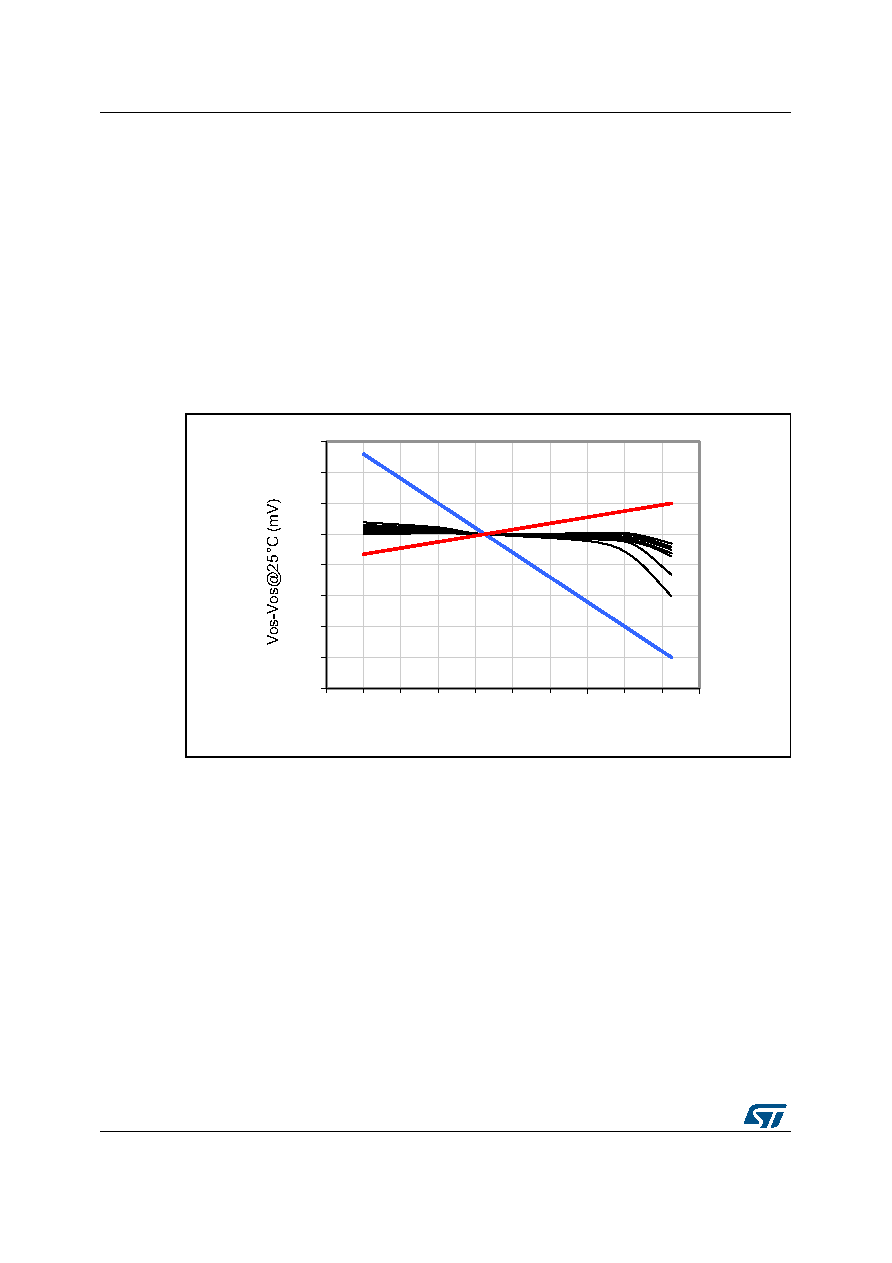

16 / 24 page ![]() Parameter definitions CS70 16/24 DocID026041 Rev 1 5.5 Input offset drift versus temperature The input voltage drift versus temperature is defined as the maximum variation of Vos with respect to its value at 25 °C over the temperature range. It is calculated as follows: with Tmin < Tamb < Tmax. Figure 19 provides a graphical definition of the input offset drift versus temperature. On this chart, Vos is always within the area defined by the maximum and minimum variation of Vos versus T, and T = 25 °C is considered to be the reference. Figure 19. Input offset drift versus temperature (Av = 50 V/V) 5.6 Output voltage accuracy The output voltage accuracy is the difference between the actual output voltage and the theoretical output voltage. Ideally, the current sensing output voltage should be equal to the input differential voltage multiplied by the theoretical gain, as in the following formula. Vout-th =Av.Vsense The actual value is very slightly different, mainly due to the effects of: the input offset voltage Vos the non-linearity V os T ---------------max V os T amb V os 25 C – T amb 25 C – -------------------------------------------------------------------- = -2.5 -2 -1.5 -1 -0.5 0 0.5 1 1.5 -60 -40 -20 0 20 40 60 80 100 120 140 T (°C) |
|
|
