17 / 48 page

TS4621B

Electrical characteristics

Doc ID 022194 Rev 2

17/48

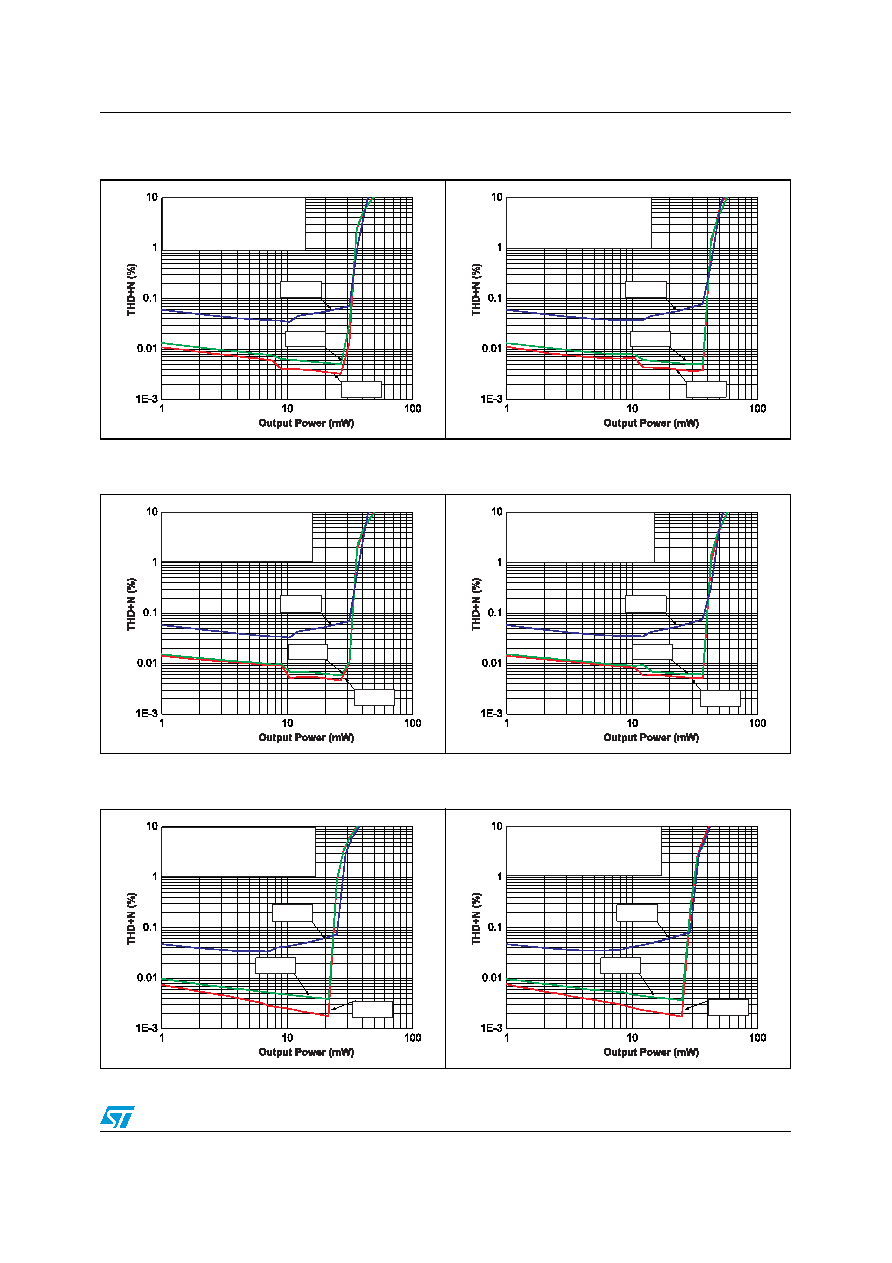

Figure 28.

THD+N vs. output power

RL = 32

Ω, in-phase, VCC = 3.6 V

Figure 29.

THD+N vs. output power

RL = 32

Ω, out-of-phase, VCC = 3.6 V

F=80Hz

F=1kHz

F=8kHz

Vcc = 3.6V, RL = 32

G = 4dB, Inputs = 0

BW < 30kHz, Tamb = 25

°C

F=80Hz

F=1kHz

F=8kHz

Vcc = 3.6V, RL = 32

G = 4dB, Inputs = 180

BW < 30kHz, Tamb = 25

°C

Figure 30.

THD+N vs. output power

RL = 32

Ω, in-phase, VCC = 4.8 V

Figure 31.

THD+N vs. output power

RL = 32

Ω, out-of-phase, VCC = 4.8 V

F=80Hz

F=1kHz

F=8kHz

Vcc = 4.8V, RL = 32

G = 4dB, Inputs = 0

BW < 30kHz, Tamb = 25

°C

F=80Hz

F=1kHz

F=8kHz

Vcc = 4.8V, RL = 32

G = 4dB, Inputs = 180

BW < 30kHz, Tamb = 25

°C

Figure 32.

THD+N vs. output power

RL = 47

Ω, in-phase, VCC = 2.5 V

Figure 33.

THD+N vs. output power

RL = 47

Ω, out-of-phase, VCC = 2.5 V

F=80Hz

F=1kHz

F=8kHz

Vcc = 2.5V, RL = 47

G = 4dB, Inputs = 0

BW < 30kHz, Tamb = 25

°C

F=80Hz

F=1kHz

F=8kHz

Vcc = 2.5V, RL = 47

G = 4dB, Inputs = 180

BW < 30kHz, Tamb = 25

°C
