RL78/G14

1. OUTLINE

R01DS0053EJ0330 Rev. 3.30

Page 13 of 208

Aug 12, 2016

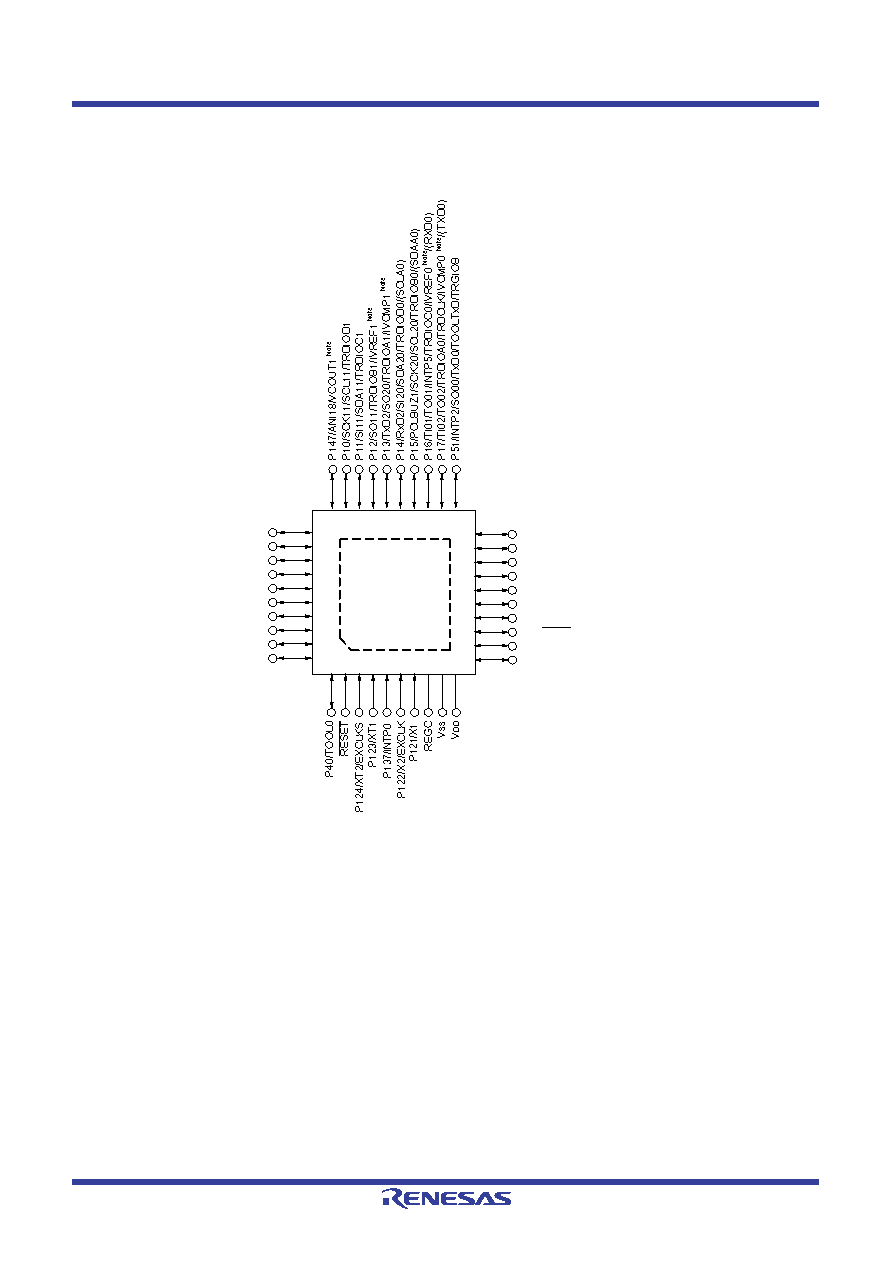

1.3.4

40-pin products

• 40-pin plastic HWQFN (6 × 6 mm, 0.5 mm pitch)

Note

Mounted on the 96 KB or more code flash memory products.

Caution

Connect the REGC pin to VSS pin via a capacitor (0.47 to 1

μF).

Remark 1.

For pin identification, see 1.4 Pin Identification.

Remark 2.

Functions in parentheses in the above figure can be assigned via settings in the peripheral I/O redirection register 0, 1

(PIOR0, 1).

Remark 3.

It is recommended to connect an exposed die pad to VSS.

exposed die pad

P26/ANI6

P25/ANI5

P24/ANI4

P23/ANI3/ANO1

Note

P22/ANI2/ANO0

Note

P21/ANI1/AVREFM

P20/ANI0/AVREFP

P01/TO00/RxD1/TRGCLKB/TRJIO0

P00/TI00/TxD1/TRGCLKA/(TRJO0)

P120/ANI19/VCOUT0

Note

P50/INTP1/SI00/RxD0/TOOLRxD/SDA00/TRGIOA/(TRJO0)

P30/INTP3/RTC1HZ/SCK00/SCL00/TRJO0

P70/KR0/SCK21/SCL21

P71/KR1/SI21/SDA21

P72/KR2/SO21

P73/KR3

P31/TI03/TO03/INTP4/PCLBUZ0/(TRJIO0)

P62/SSI00

P61/SDAA0

P60/SCLA0

1 234 56 78 9 10

3029 28 27 26 25 24 23 22 21

RL78/G14

(Top View)
