1 / 30 page

This is information on a product in full production.

June 2014

DocID15232 Rev 7

1/30

VIPER16

Fixed frequency VIPer™ plus family

Datasheet

- production data

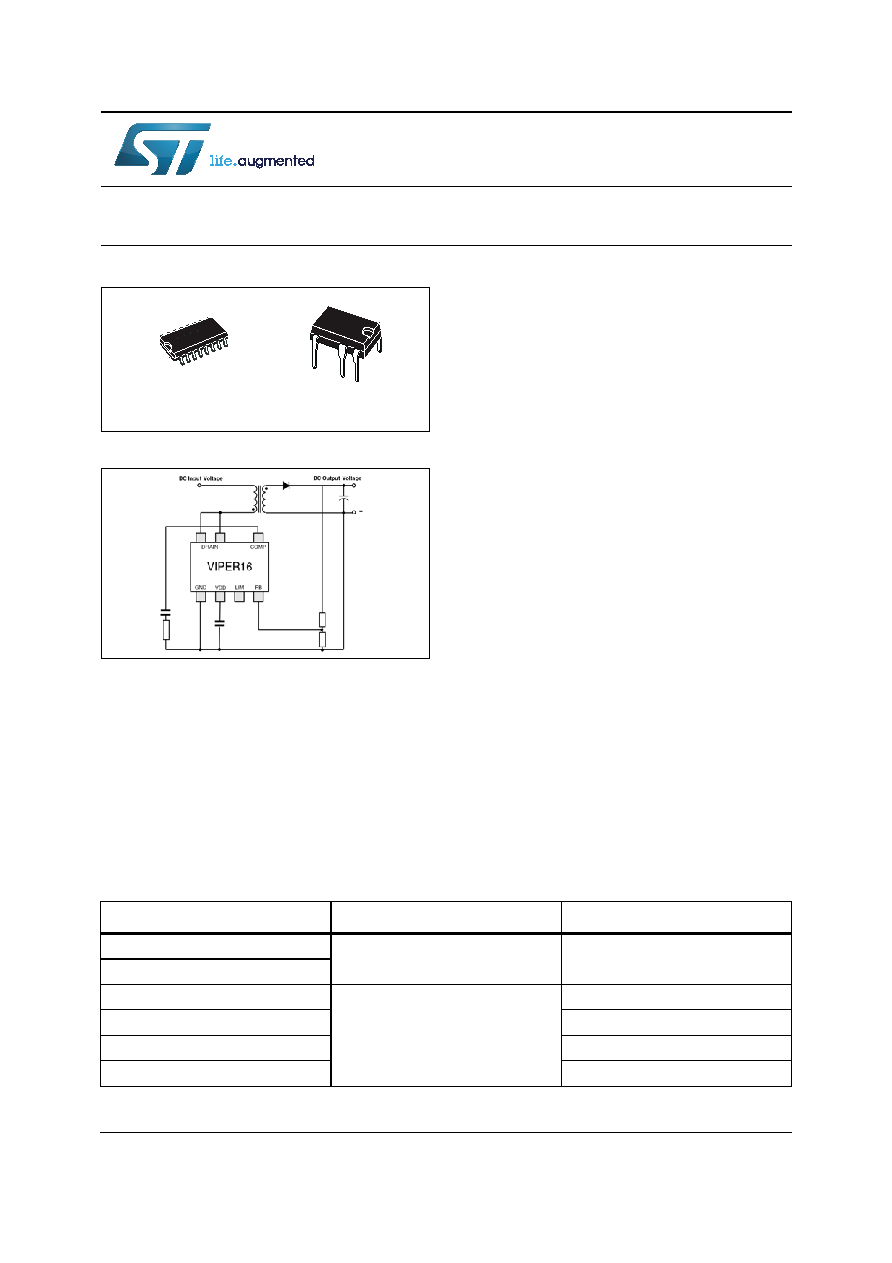

Figure 1. Typical application

Features

• 800 V avalanche rugged power section

• PWM operation with frequency jittering for low

EMI

• Operating frequency:

– 60 kHz for L type

– 115 kHz for H type

• No need of auxiliary winding for low power

application

• Standby power < 30 mW at 230 VAC

• Limiting current with adjustable set point

• On-board soft-start

• Safe auto-restart after a fault condition

• Hysteretic thermal shutdown

Application

• Replacement of capacitive power supply

• Auxiliary power supply for appliances,

• Power metering

• LED drivers

Description

The device is an off-line converter with an 800 V

avalanche ruggedness power section, a PWM

controller, user defined overcurrent limit,

protection against feedback network

disconnection, hysteretic thermal protection, soft

start up and safe auto restart after any fault

condition. It is able to power itself directly from the

rectified mains, eliminating the need for an

auxiliary bias winding. Advance frequency jittering

reduces EMI filter cost. Burst mode operation and

the devices very low consumption both help to

meet the standard set by energy saving

regulations.

Table 1. Device summary

Order codes

Package

Packaging

VIPER16LN

DIP-7

Tube

VIPER16HN

VIPER16HD

SO16 narrow

Tube

VIPER16HDTR

Tape and reel

VIPER16LD

Tube

VIPER16LDTR

Tape and reel

www.st.com
