Open loop failure protection

In case the power supply is built in fly-back topology and the VIPer16 is supplied by an

auxiliary winding, as shown in Figure 27 on page 21 and Figure 28 on page 22, the

converter is protected against feedback loop failure or accidental disconnections of the

winding.

The following description is applicable for the schematics of Figure 27 on page 21 and

Figure 28 on page 22, respectively the non-isolated fly-back and the isolated fly-back.

If RH is opened or RL is shorted, the VIPer16 works at its drain current limitation. The output

voltage, VOUT, will increase and so the auxiliary voltage, VAUX, which is coupled with the

output through the secondary-to-auxiliary turns ratio.

As the auxiliary voltage increases up to the internal VDD active clamp, VDDclamp (the value is

reported on Table 8 on page 9) and the clamp current injected on VDD pin exceeds the latch

threshold, IDDol (the value is reported on Table 8 on page 9), a fault signal is internally

generated.

In order to distinguish an actual malfunction from a bad auxiliary winding design, both the

above conditions (drain current equal to the drain current limitation and current higher than

IDDol through VDD clamp) have to be verified to reveal the fault.

If RL is opened or RH is shorted, the output voltage, VOUT, will be clamped to the reference

voltage VREF_FB (in case of non isolated fly-back) or to the external TL voltage reference (in

case of isolated fly-back).

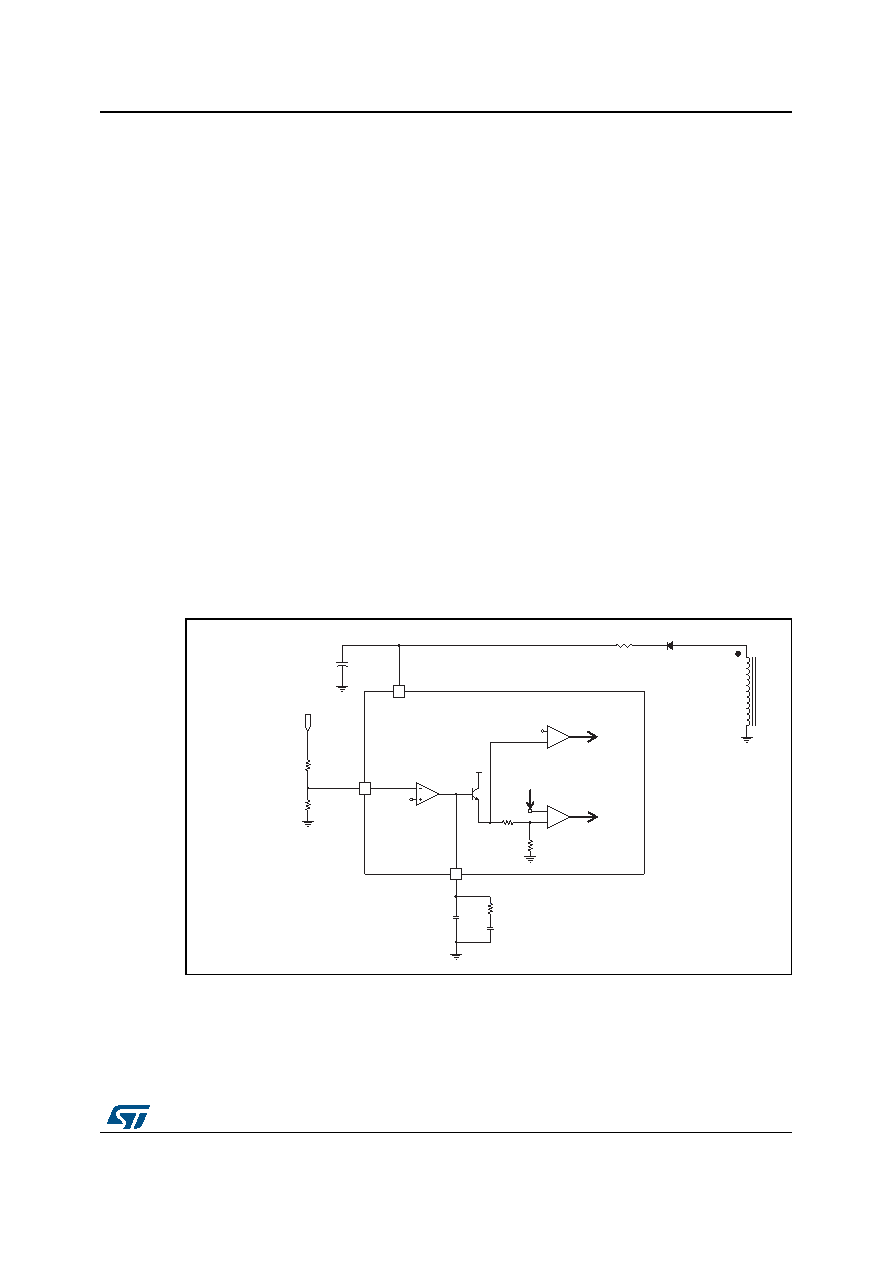

Figure 27. FB pin connection for non-isolated fly-back

COMPL

AUX

VDD

VAUX

COMP

to PWM

E/A

AUX

VDD

VOUT

REF_FB

from R

SENSE

BUS

PWM stop

AM13272v1
