11 / 29 page

11/29

M24C16, M24C08, M24C04, M24C02, M24C01

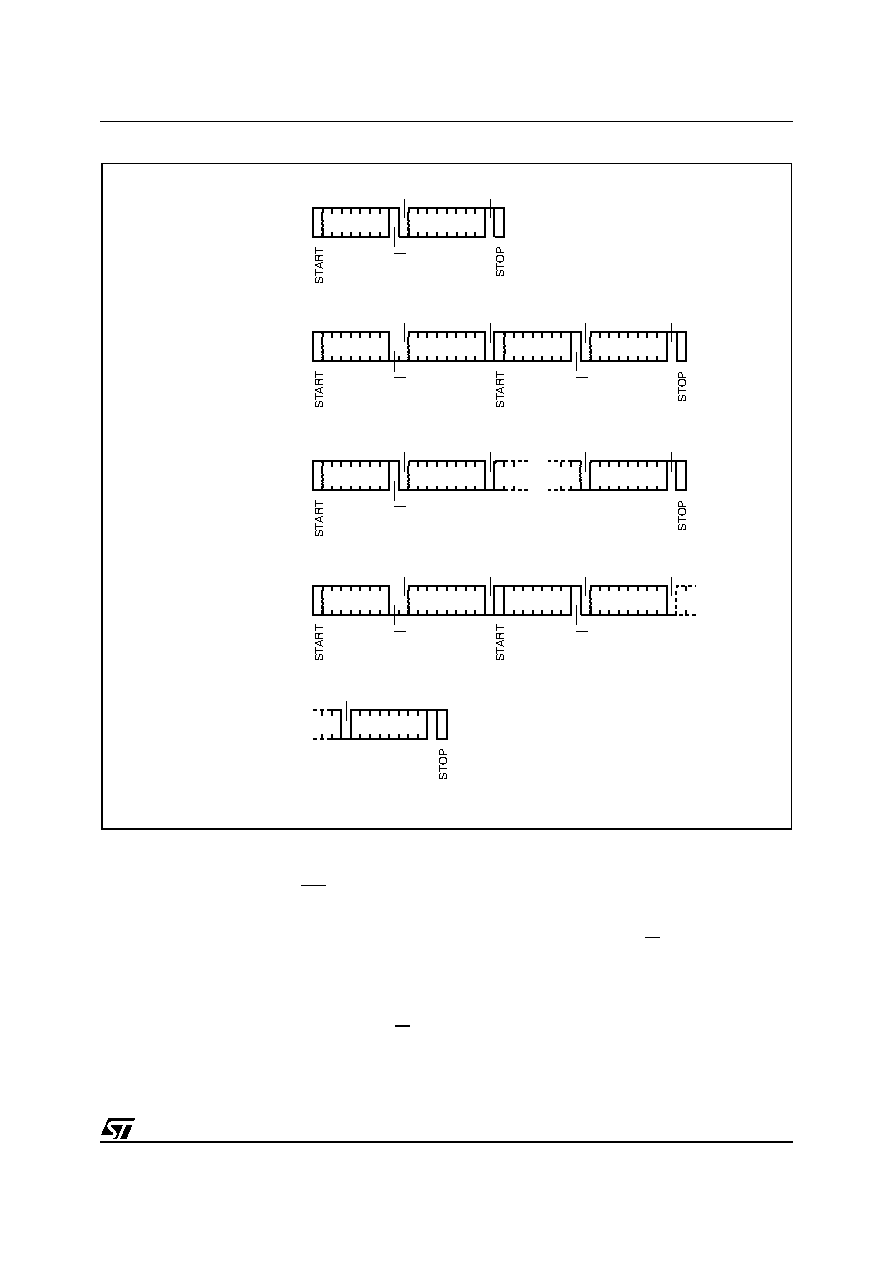

Figure 9. Read Mode Sequences

Note: The seven most significant bits of the Device Select Code of a Random Read (in the 1st and 3rd bytes) must be identical.

Read Operations

Read operations are performed independently of

the state of the Write Control (WC) signal.

The device has an internal address counter which

is incremented each time a byte is read.

Random Address Read

A dummy Write is first performed to load the ad-

dress into this address counter (as shown in Fig-

ure 9.) but without sending a Stop condition. Then,

the bus master sends another Start condition, and

repeats the Device Select Code, with the RW bit

set to 1. The device acknowledges this, and out-

puts the contents of the addressed byte. The bus

master must not acknowledge the byte, and termi-

nates the transfer with a Stop condition.

Current Address Read

For the Current Address Read operation, following

a Start condition, the bus master only sends a De-

vice Select Code with the RW bit set to 1. The de-

vice acknowledges this, and outputs the byte

addressed by the internal address counter. The

counter is then incremented. The bus master ter-

minates the transfer with a Stop condition, as

shown in Figure 9., without acknowledging the

byte.

DEV SEL *

BYTE ADDR

DEV SEL

DATA OUT 1

AI01942

DATA OUT N

CURRENT

ADDRESS

READ

DEV SEL

DATA OUT

RANDOM

ADDRESS

READ

DEV SEL *

DATA OUT

SEQUENTIAL

CURRENT

READ

DATA OUT N

DEV SEL *

BYTE ADDR

SEQUENTIAL

RANDOM

READ

DEV SEL *

DATA OUT 1

ACK

R/W

NO ACK

ACK

R/W

ACK

R/W

ACK

NO ACK

R/W

NO ACK

ACK

R/W

ACK

R/W

ACK

NO ACK
