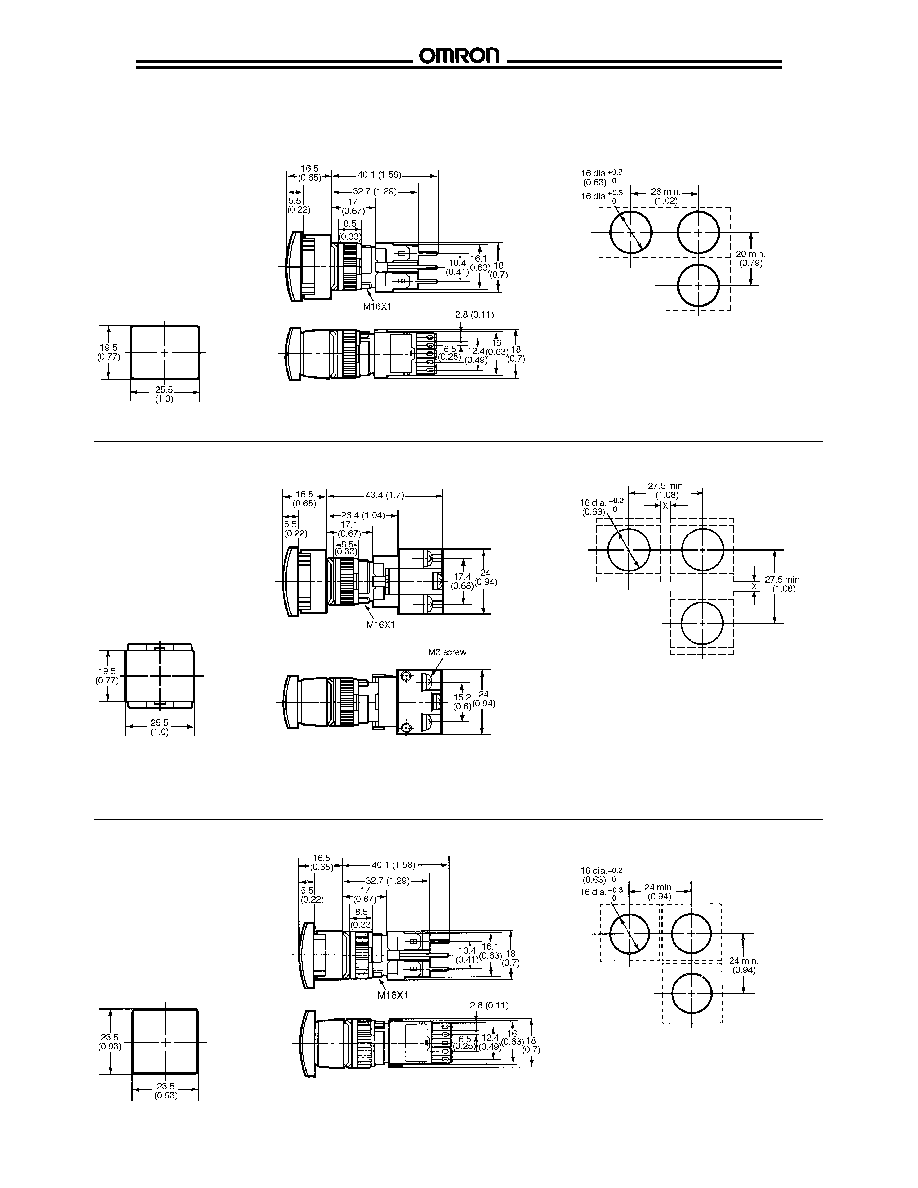

A3G

s CONVEX TYPE PUSHBUTTON SWITCH

Note: 1. Recommended panel thickness is

0.5 to 5 mm.

2. When using the spring mounting

clip for snap-in mounting, the

panel cutout becomes 16.2 +

0.3 mm

in diameter, and recommended

panel thickness is 0.5 to 3.5 mm.

Rectangular (A3GJ)

Panel cutout

with solder terminals

(top view)

Square (A3GA)

Panel cutout

with solder terminals

(top view)

Note: 1. Recommended panel thickness is

0.5 to 5 mm.

2. When using the spring mounting

clip for snap-in mounting, the

panel cutout becomes 16.2 +

0.3 mm

in diameter, and recommended

panel thickness is 0.5 to 3.5 mm.

Rectangular (A3GJ)

Panel cutout

with screw terminals

(top view)

Dimensions for models with screw terminals

have been omitted. Refer to the dimensions

for the rectangular type.

Note: The above panel cutout diagram applies

when the X dimension (the space between

terminals of different polarity) is maintained

at 3.5 mm. When the X dimension is not

required, switches may be mounted at 24.5

mm for the general-purpose pushbutton type,

or at 26 mm for the rectangular concave

type. The pitch should be as large as

possible to maintain space to extend the lead

wire and make it easier to wire.
