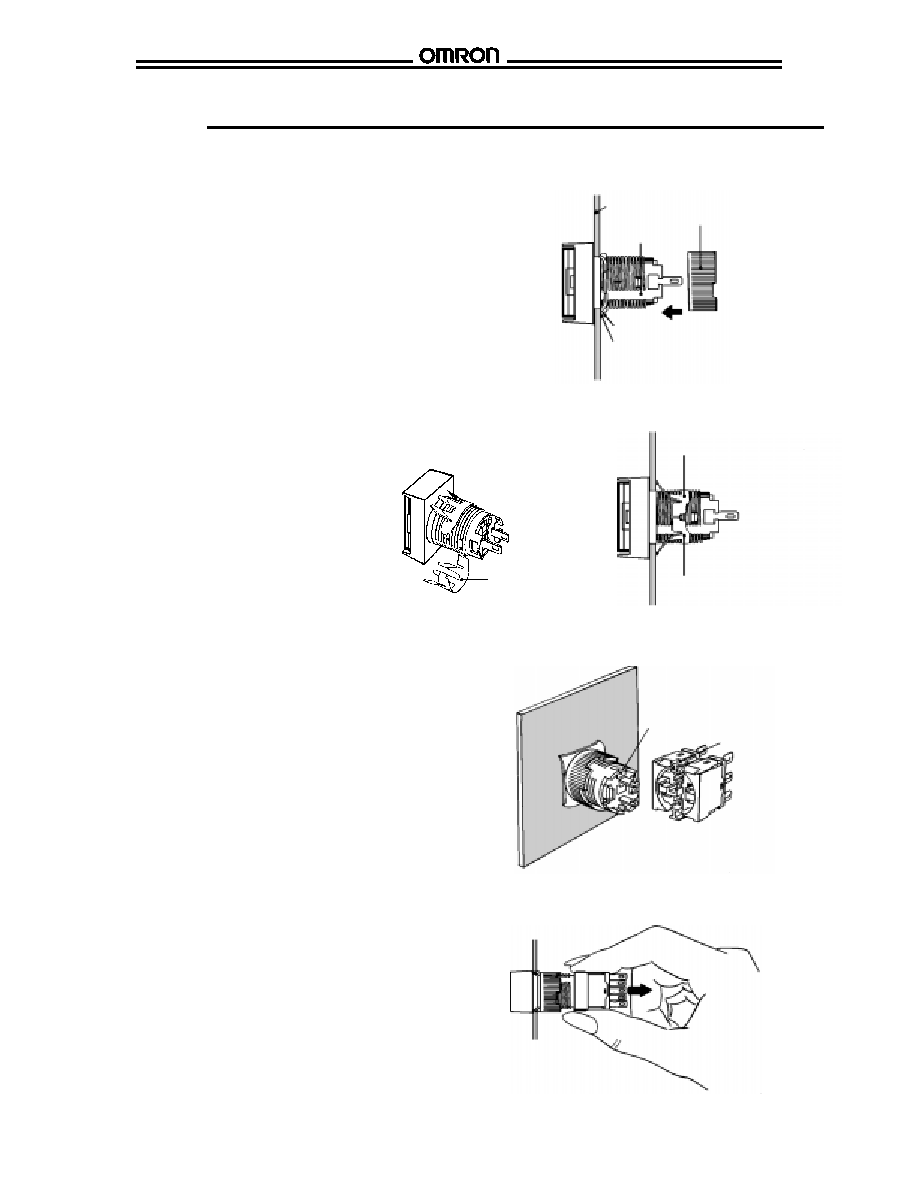

Mounting

After installing the main unit, mount the socket unit on the panel surface.

s NUT MOUNTING

Insert the switch unit from the front of the panel. Place the lock

fitting and mounting nut on the terminal side and tighten the

mounting nut. For the IP65 type, use the rubber seal. Align the

anti-turn piece with the grooves and insert it so that the edge

section faces the panel. Tighten the mounting to a torque of

10 kg-cm or less.

s SNAP-IN MOUNTING

Fit the spring mounting clip for snap-in mounting

to the switch unit. Insert the tab of the spring

mounting clip into the two grooves on the

threaded part of the switch unit.

Note: Be sure to use two spring mounting clips

and see that each is firmly inserted into the

grooves. Do not use for IP65-type

switches.

Insert the switch unit from the front of the

panel and secure it.

s SOCKET MOUNTING

Mount the socket to the switch unit. As the socket mounts to the

switch unit in only one direction, the white mark on the switch unit

and that on the socket must be aligned for mounting.

s REMOVING SOCKET

Press the Lock button on the socket and pull to remove.

Pull straight off when removing the socket.

Panel

Mountibg nut

Groove

Lock fitting

Edge

Spring mounting clip

Spring mounting clip

Push the tabs of the spring mounting

clips firmly into the grooves

White mark

White mark
