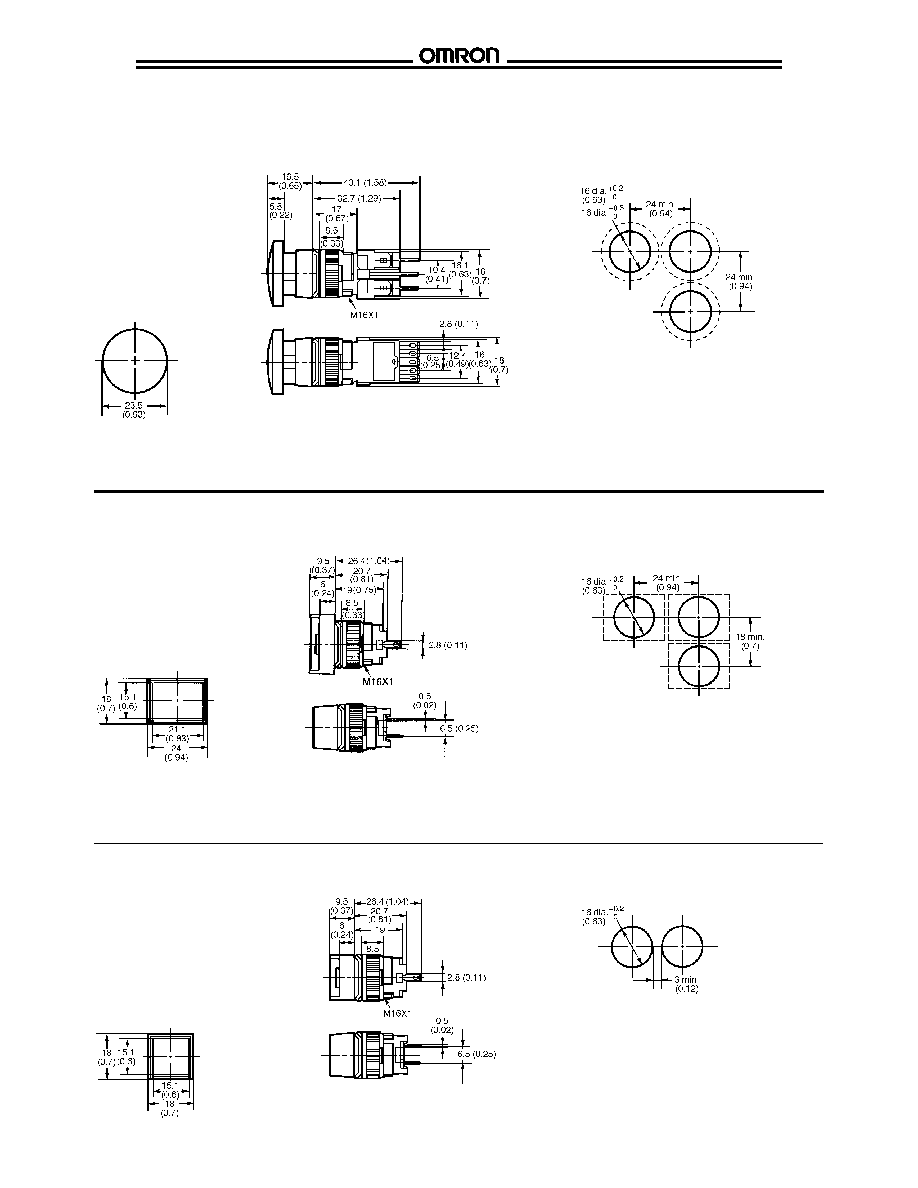

A3G

Round (A3GT)

Panel cutout

with solder terminals

(top view)

Note: 1. Recommended panel thickness is

0.5 to 5 mm.

2. When using the spring mounting

clip for snap-in mounting, the

panel cutout becomes 16.2 +

0.3 mm

in diameter, and recommended

panel thickness is 0.5 to 3.5 mm.

s INDICATORS

Rectangular indicator (M2GJ)

Panel cutout

with solder terminals

(top view)

Square indicator (M2GA)

Panel cutout

with solder terminals

(top view)

Dimensions for models with screw terminals

have been omitted. Refer to the dimensions

for the rectangular type.

s CONVEX TYPE PUSHBUTTON SWITCHES continued

Unit: mm (inch)

Note: 1. Recommended panel thickness is

0.5 to 5 mm.

2. When using the spring mounting

clip for snap-in mounting, the

panel cutout becomes 16.2 +

0.3 mm

in diameter, and recommended

panel thickness is 0.5 to 3.5 mm.

Note: 1. Recommended panel thickness is

0.5 to 5 mm.

2. When using the spring mounting

clip for snap-in mounting, the

panel cutout becomes 16.2 +

0.3 mm

in diameter, and recommended

panel thickness is 0.5 to 3.5 mm.
