Data Sheet
AD8260
Rev. B | Page 9 of 32
–100
LOAD CAPACITANCE (pF)
100
40
0
–40
–20
–60
–80
–90
80
20
10
60
f = 10MHz
–70
–50
–30
50
90
30
70
HD2, VOUT = 1V p-p
HD3, VOUT = 1V p-p
HD2, VOUT = 2V p-p
HD3, VOUT = 2V p-p

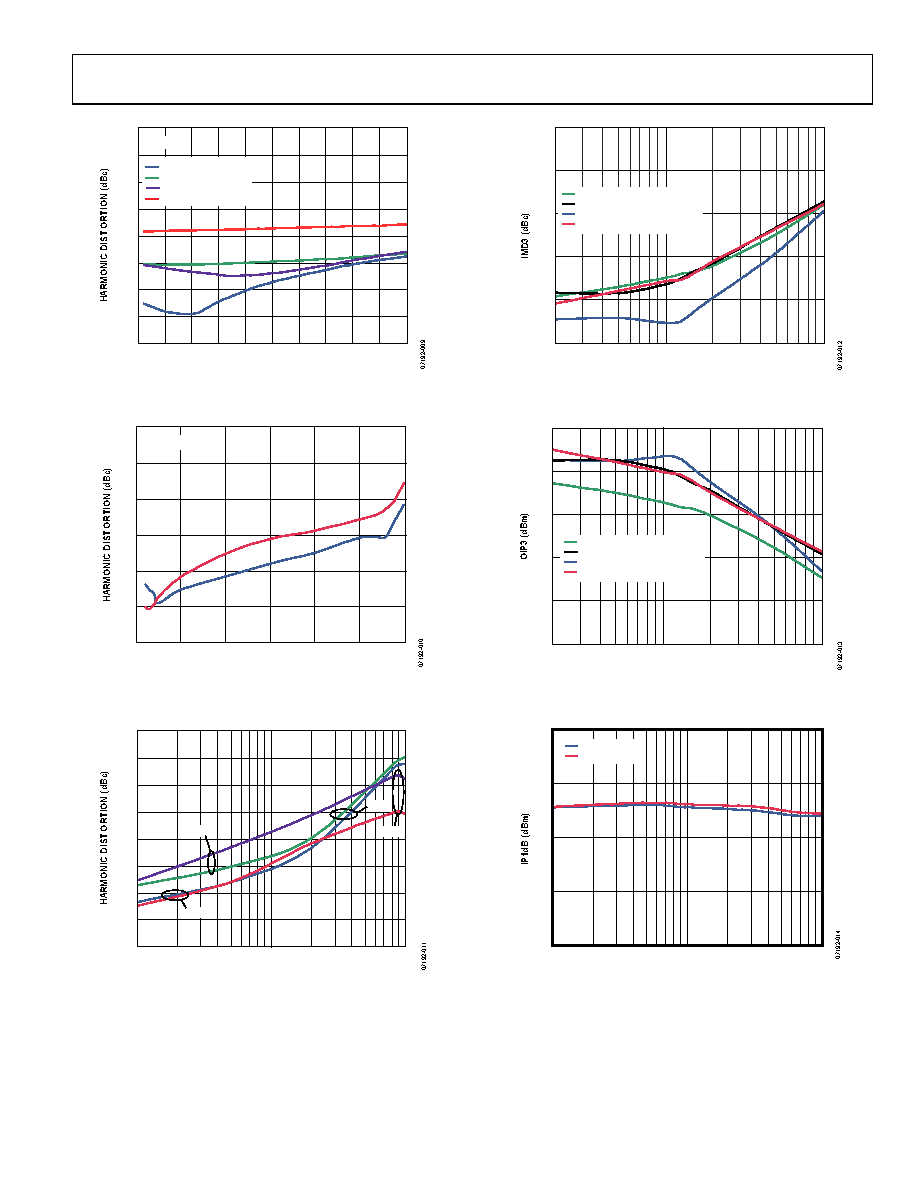

Figure 9. Harmonic Distortion (HD2, HD3) vs. Load Capacitance at Two
Values of Output Voltage for the High Current Driver—See Figure 54
–100
OUTPUT VOLTAGE (V p-p)
3.0
1.5
0
–40
–20
–60
–80
–120
0
2.5
1.0
0.5
2.0
HD3
HD2
f = 10MHz
Figure 10. Harmonic Distortion (HD2, HD3) vs. Output Voltage for the High
Current Driver—See Figure 54
–100
FREQUENCY (Hz)
100M
10M
1M
–40
–20
–60
–80
–90
HD3
HD2
–70
–50
–30
1V p-p
2V p-p
Figure 11. Harmonic Distortion (HD2, HD3) vs. Frequency of the High Current
Driver at Two Values of Output Voltage—See Figure 54
100M
FREQUENCY (Hz)
2M
10M
–100
–80
–60
–40
–20
0
RLOAD = 50Ω, VOUT = 1V p-p
RLOAD = 50Ω, VOUT = 2V p-p
RLOAD = 500Ω, VOUT = 1V p-p
RLOAD = 500Ω, VOUT = 2V p-p
Figure 12. IMD3 vs. Frequency for Two Values of Output Voltage and Two
Values of Load Resistance for the High Current Driver—See Figure 55
100M
FREQUENCY (Hz)
2M
10M
50
40
30
20
10
0
RLOAD = 50Ω, VOUT = 1V p-p
RLOAD = 50Ω, VOUT = 2V p-p
RLOAD = 500Ω, VOUT = 1V p-p
RLOAD = 500Ω, VOUT = 2V p-p
Figure 13. Third-Order Intercept (OIP3) vs. Frequency for the High Current Driver
See Figure 55
0
20
FREQUENCY (Hz)
100M
10M
1M
5
15
10
RLOAD = 50Ω
RLOAD = 500Ω
Figure 14. Input-Referred 1 dB Compression (IP1dB) vs. Frequency for Two
Values of Load Resistance for the High Current Driver
