Data Sheet
AD8260
Rev. B | Page 17 of 32
SIGNAL
GENERATORS
50Ω
IN
50Ω
INRP
VOCM
INRN
0.1µF
0.1µF
0.1µF
TXFB
TXOP
VMDO
SPECTRUM
ANALYZER
453Ω
1kΩ
1kΩ
1:1
AD8260—HIGH CURRENT DRIVER
50Ω
–
+

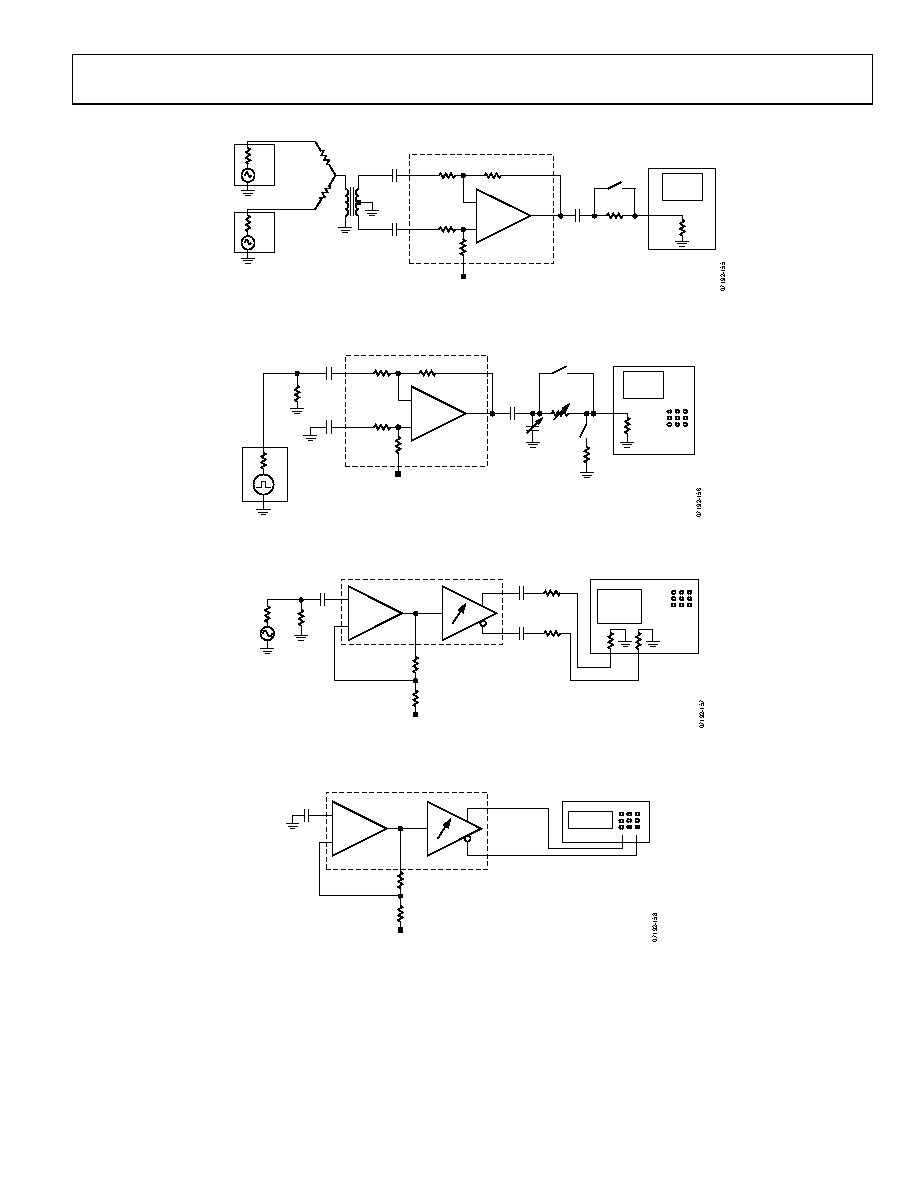

Figure 55. Test Circuit for IMD3 and OIP3 of the High Current Driver
OSCILLOSCOPE
IN
50Ω
50Ω
INRP
–
+
VOCM
INRN
0.1µF
0.1µF
0.1µF
TXFB
TXOP
VMDO
50Ω
12.5Ω
RLOAD
CLOAD
AD8260—HIGH CURRENT DRIVER
Figure 56. Test Circuit for Pulse Response of the High Current Driver
OSCILLOSCOPE
IN
50Ω
50Ω
453Ω
453Ω
VMDO
0.1µF
0.1µF
0.1µF
100Ω
SIGNAL
GENERATOR
50Ω
+
–
100Ω
PREAMP
AD8260—VGA/PREAMPLIFIER
Figure 57. Test Circuit for Gain Step Size and Error of the VGA/Preamplifier
DMM
VMDO
0.1µF
100Ω
+
–
100Ω
PREAMP
AD8260—VGA/PREAMPLIFIER
Figure 58. Test Circuit for Output-Referred Offset Voltage of the VGA/Preamplifier
