STTH2R06
5/9

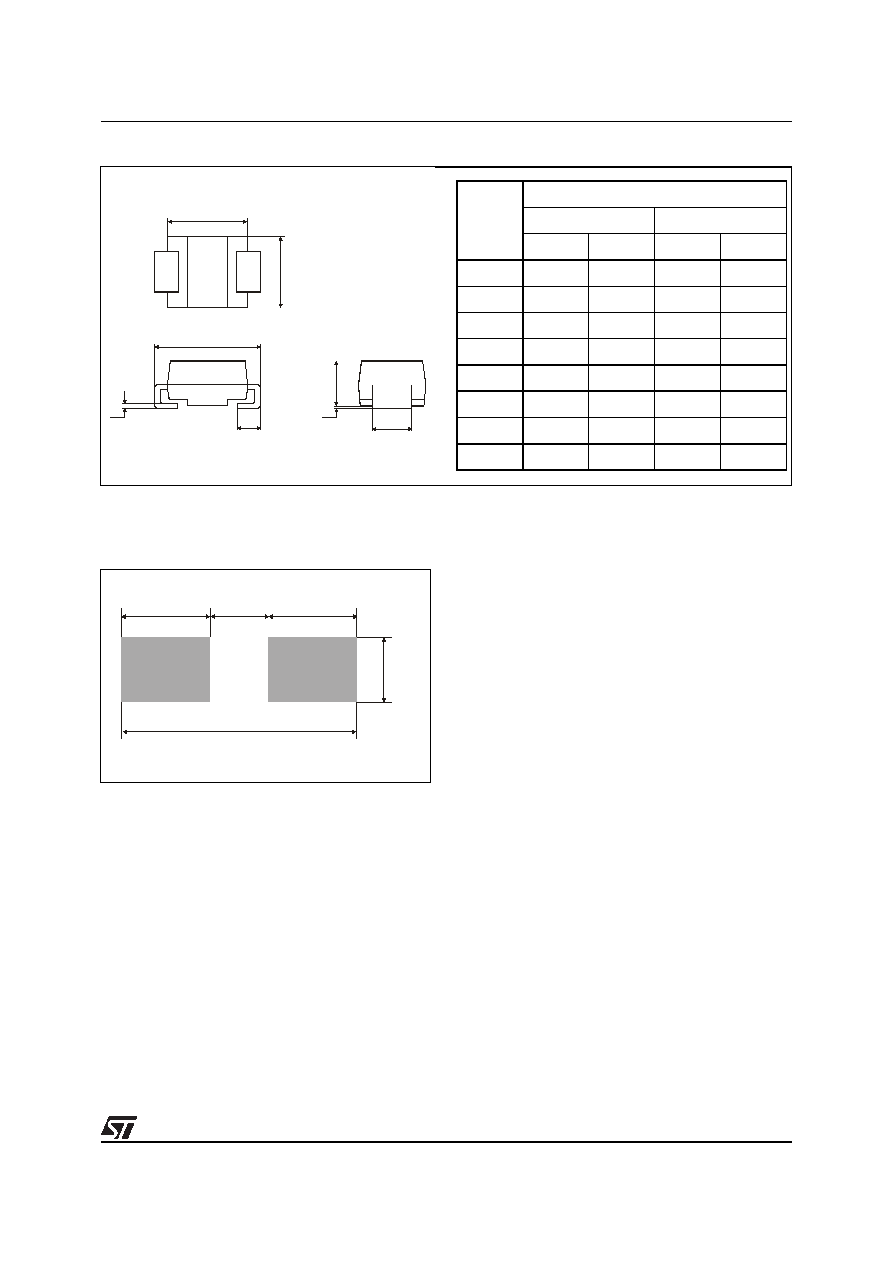

Figure 13: SMA Package Mechanical Data
Figure 14: SMA Foot Print Dimensions
(in millimeters)
E
C
L
E1
D
A1
A2
b
1.50
6.10
2.30
1.75
2.30
REF.
DIMENSIONS
Millimeters
Inches
Min.
Max.
Min.
Max.
A1
1.90
2.03
0.075
0.080
A2
0.05
0.20
0.002
0.008
b
1.25
1.65
0.049
0.065
c
0.15
0.41
0.006
0.016
E
4.80
5.60
0.189
0.220
E1
3.95
4.60
0.156
0.181
D
2.25
2.95
0.089
0.116
L
0.75
1.60
0.030
0.063
