LM193, LM293, LM293A, LM393, LM393A, LM2903, LM2903V, LM393B, LM2903B

SLCS005AA – OCTOBER 1979 – REVISED SEPTEMBER 2019

www.ti.com

Product Folder Links: LM193 LM293 LM293A LM393 LM393A LM2903 LM2903V LM393B LM2903B

Submit Documentation Feedback

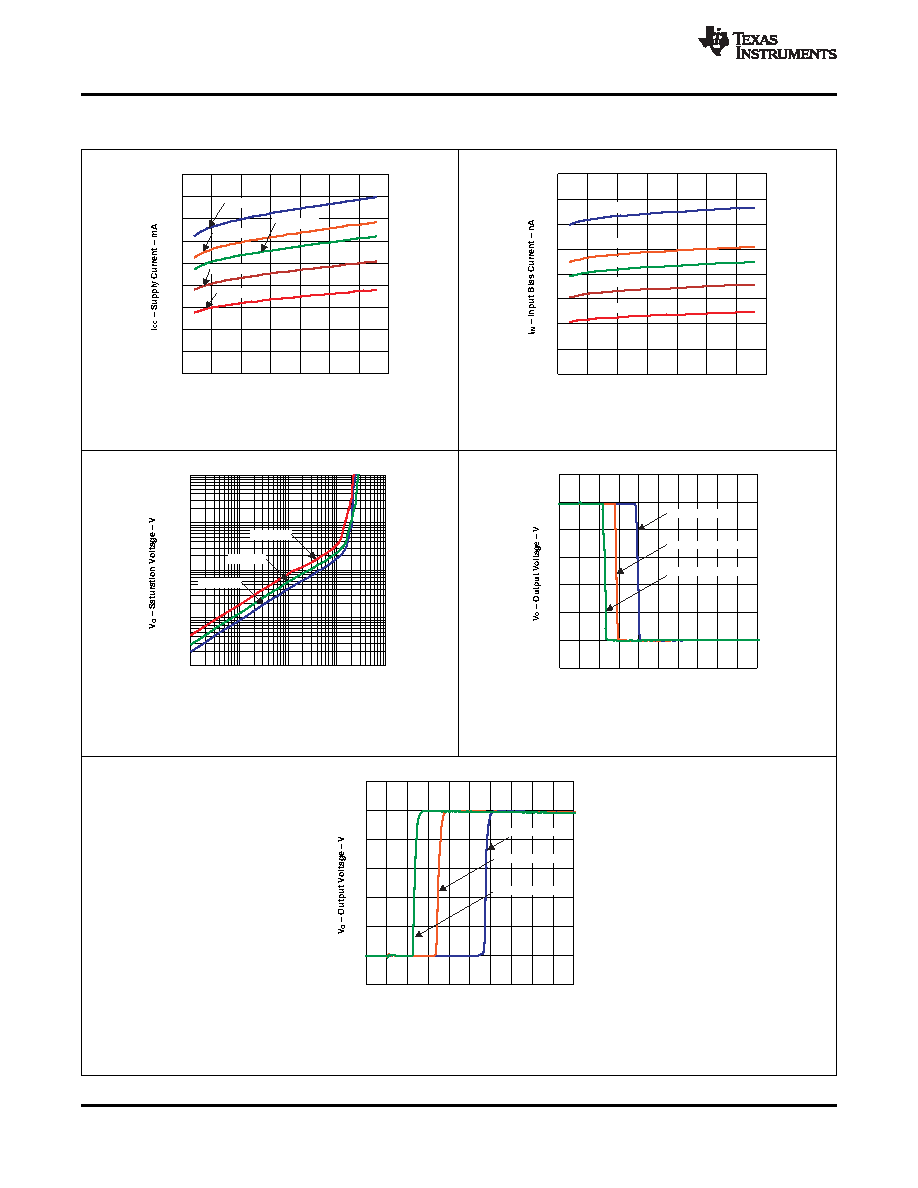

6.14 Typical Characteristics

Figure 1. Supply Current vs Supply Voltage

Figure 2. Input Bias Current vs Supply Voltage

Figure 3. Output Saturation Voltage

Figure 4. Response Time for Various Overdrives

Negative Transition

Figure 5. Response Time for Various Overdrives

Positive Transition
