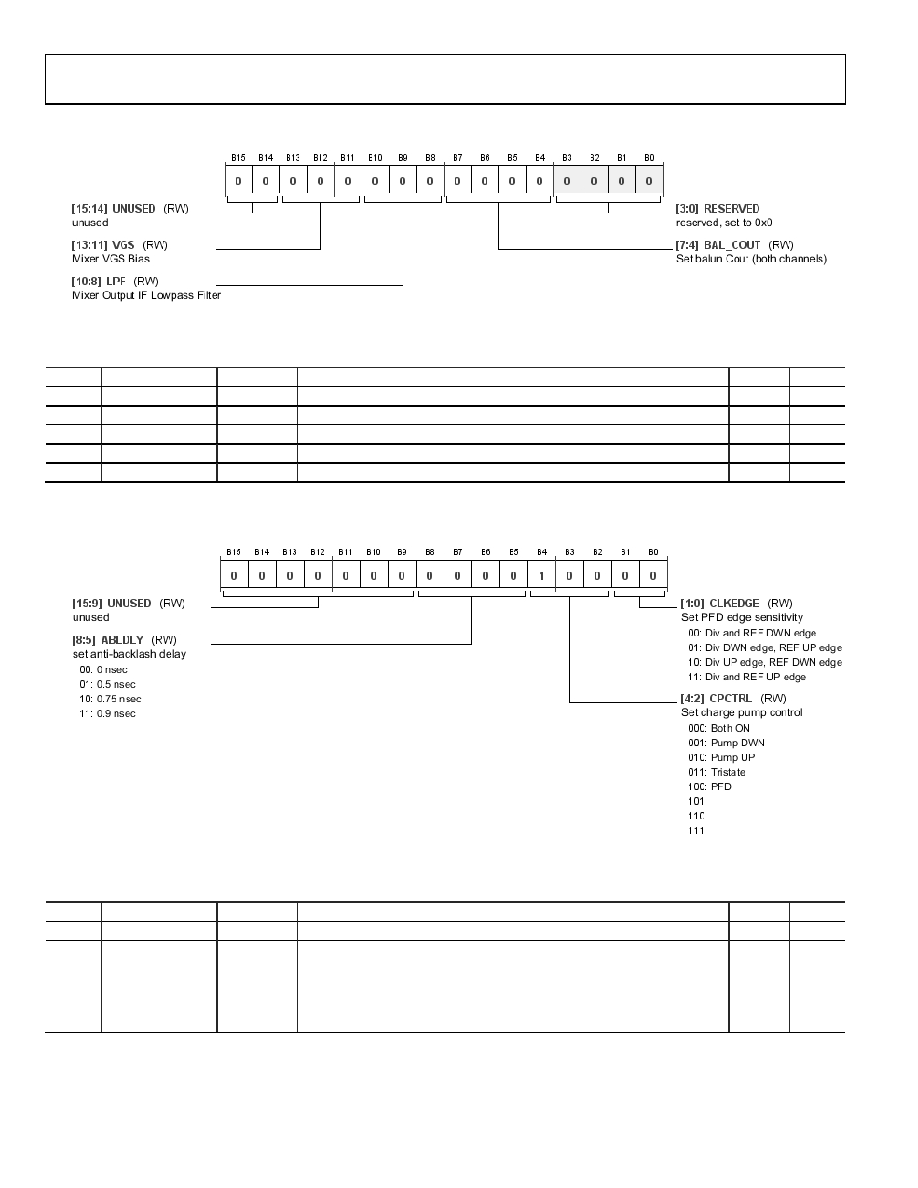

background image
ADRF6612
Data Sheet
Rev. A | Page 46 of 57
Address: 0x30, Reset: 0x0000, Name: BALUN_CTRL
Table 35. Bit Descriptions for BALUN_CTRL
Bits
Bit Name
Settings
Description
Reset
Access
[15:14]
UNUSED
Unused
0x0
RW
[13:11]
VGS
Mixer VGS bias
0x0
RW
[10:8]
LPF
Mixer output IF low-pass filter
0x0
RW
[7:4]
BAL_COUT
Set balun COUT (both channels)
0x0
RW
[3:0]
RESERVED
Reserved, set to 0x0
0x0
RW
Address: 0x40, Reset: 0x0010, Name: PFD_CTRL2
Table 36. Bit Descriptions for PFD_CTRL2
Bits
Bit Name
Settings
Description
Reset
Access
[15:9]
UNUSED
Unused
0x0
RW
[8:5]
ABLDLY
Set antibacklash delay
0x0
RW
00
0 ns
01
0.5 ns
10
0.75 ns
11
0.9 ns
