Data Sheet
ADRF6612
Rev. A | Page 21 of 57
–160
–150
–140
–130
–120
–110
–100
–90
–80
–70
–60
0.001
0.01
0.1
1
10
OFFSET FREQUENCY (MHz)
890MHz +10dBm
1910MHz +10dBm
2510MHz +10dBm

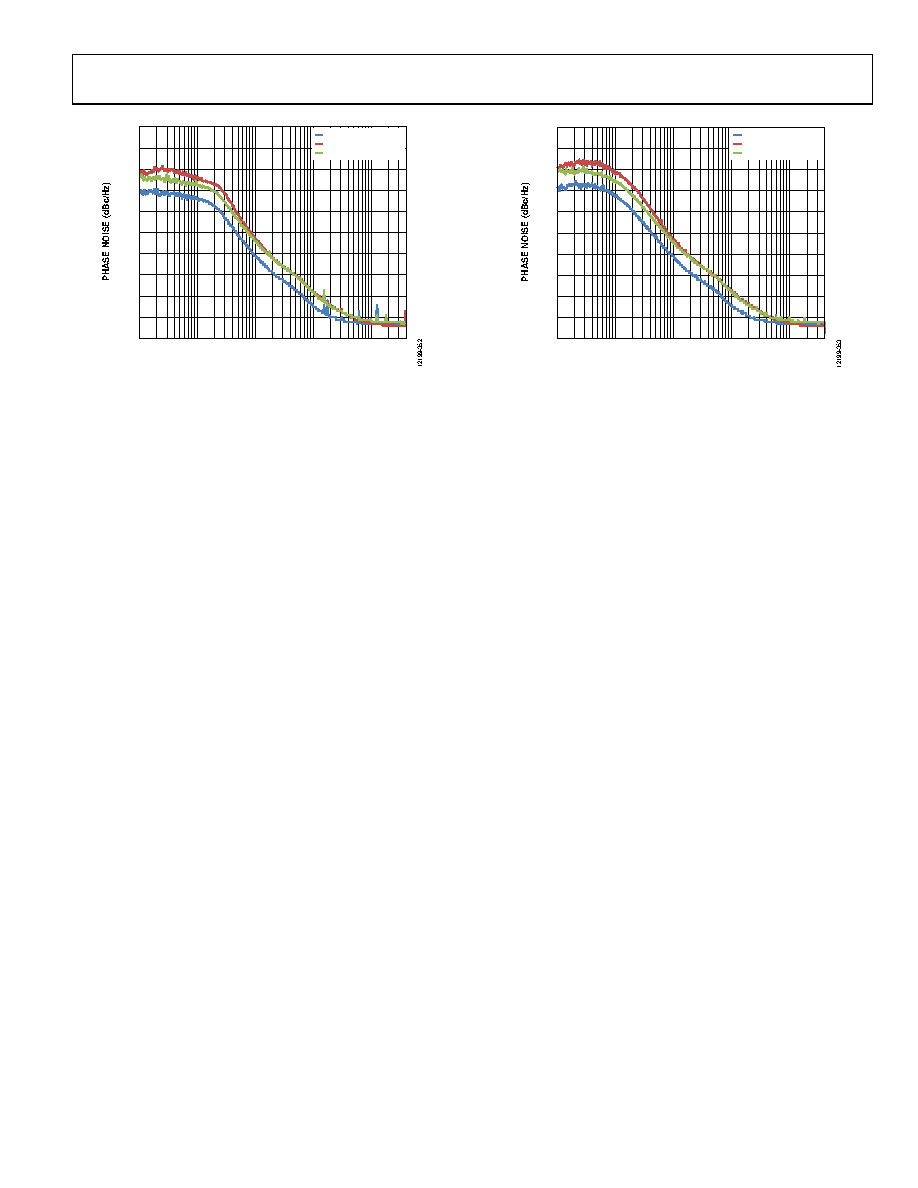

Figure 52. Phase Noise at IF Output vs. Offset Frequency with 10 dBm Blocker
in Integer Mode
–160
–150
–140
–130
–120
–110
–100
–90
–80
–70
–60
0.001
0.01
0.1
1
10
OFFSET FREQUENCY (MHz)
890MHz +10dBm
1910MHz +10dBm
2510MHz +10dBm
Figure 53. Phase Noise at IF Output vs. Offset Frequency with 10 dBm Blocker
in Fractional Mode
