Data Sheet

ADRF6604

Rev. B | Page 29 of 32

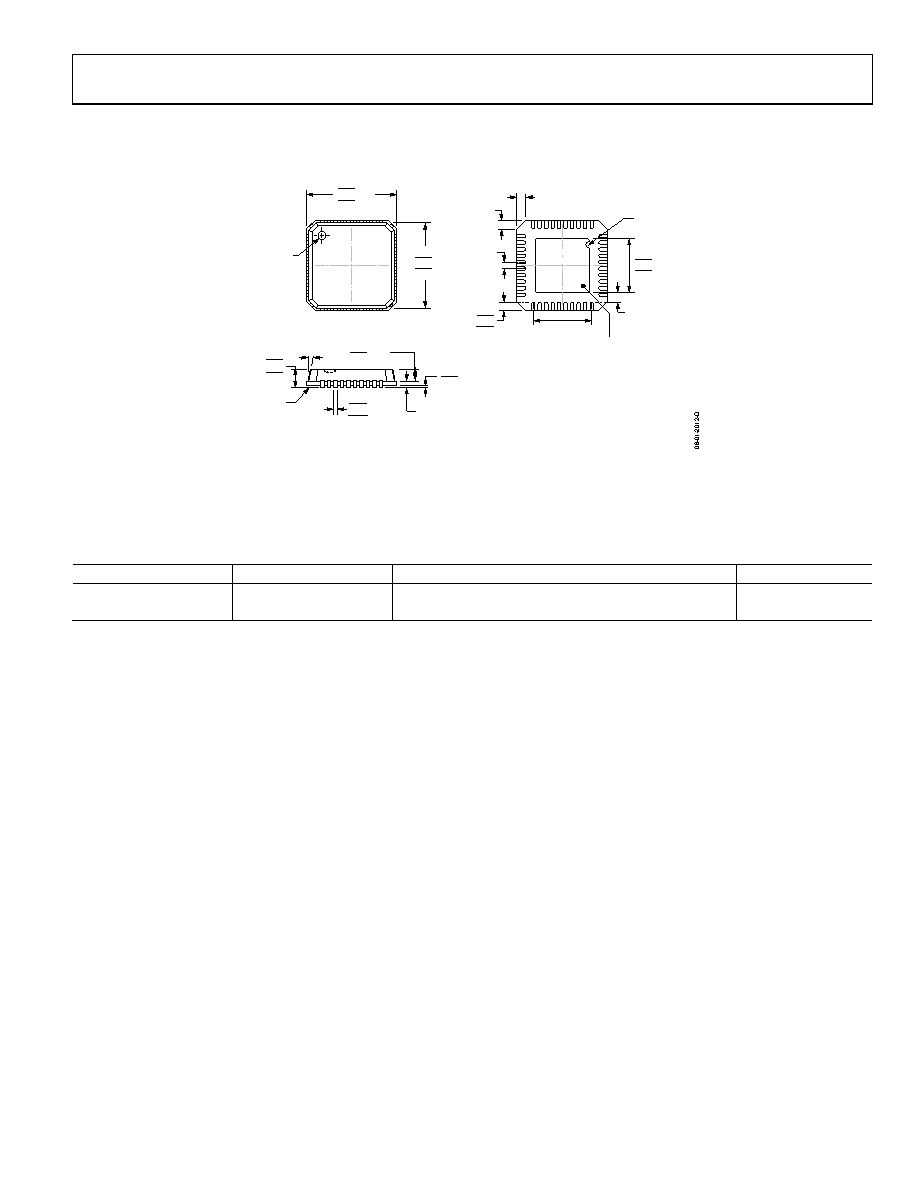

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-220-VJJD-2

0.50

BSC

PIN 1

INDICATOR

4.50 REF

0.20 MIN

0.50

0.40

0.30

TOP VIEW

12° MAX

0.80 MAX

0.65 TYP

SEATING

PLANE

COPLANARITY

0.08

1.00

0.85

0.80

0.30

0.23

0.18

0.05 MAX

0.02 NOM

0.20 REF

4.25

4.10 SQ

3.95

0.60 MAX

PIN 1

INDICATOR

6.10

6.00 SQ

5.90

5.85

5.75 SQ

5.65

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

EXPOSED

PAD

(BOTTOM VIEW)

Figure 53. 40-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

6 mm × 6 mm Body, Very Thin Quad

(CP-40-1)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADRF6604ACPZ-R7

−40°C to +85°C

40-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

CP-40-1

ADRF6604-EVALZ

Evaluation Board

Z = RoHS Compliant Part.
