Data Sheet
ADRF6604
Rev. B | Page 9 of 32

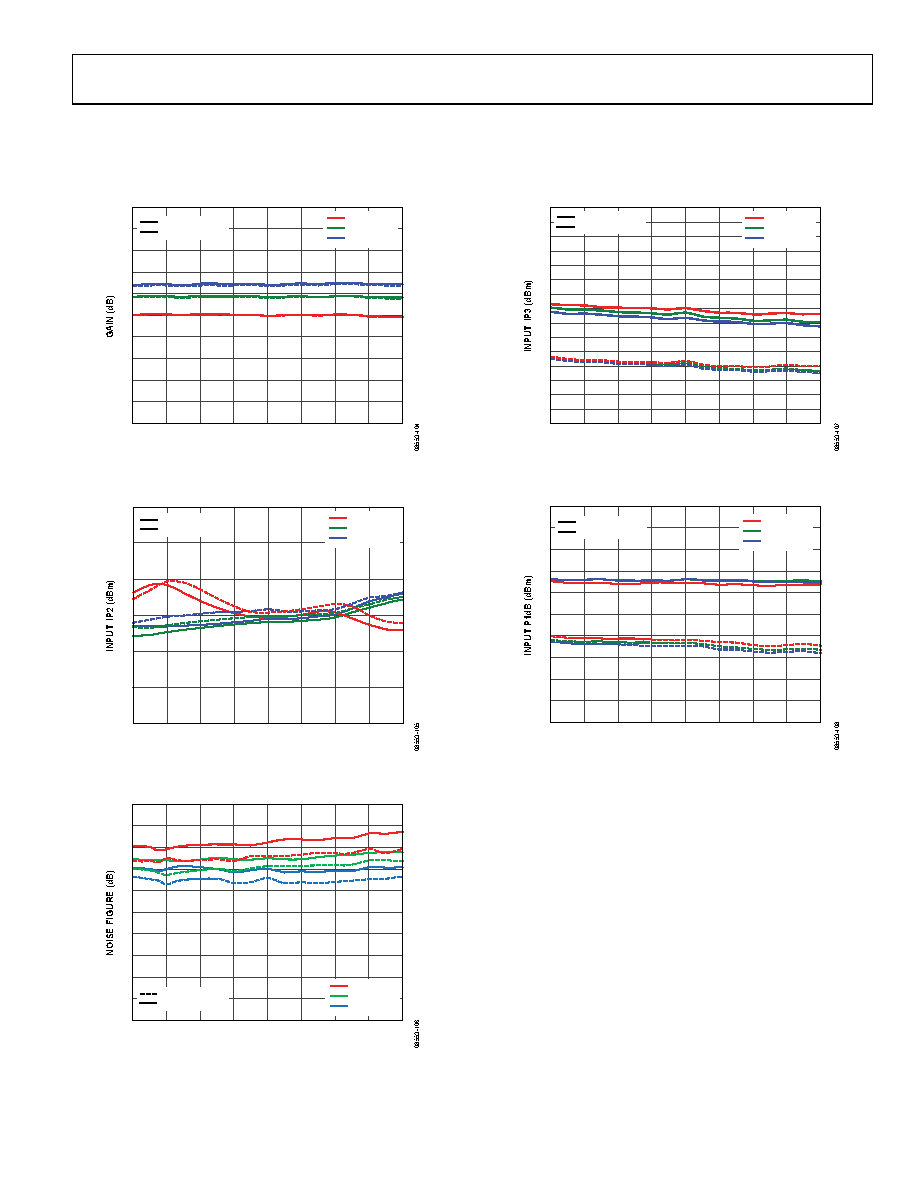

TYPICAL PERFORMANCE CHARACTERISTICS
RF FREQUENCY SWEEP
CDAC = 0xC, internally generated high-side LO, RFIN = −5 dBm, fIF = 140 MHz, unless otherwise noted.
5
4
3
2
1
0
–1
–2
–3
–4
–5
2360
2410
2460
2510
2560
2610
2660
2710
2760
RF FREQUENCY (MHz)
IP3SET = OPEN
IP3SET = 3.3V
TA = +85°C
TA = +25°C
TA = –40°C
Figure 4. Gain vs. RF Frequency
90
80
70
60
50
40
30
2360
2410
2460
2510
2560
2610
2660
2710
2760
RF FREQUENCY (MHz)
IP3SET = OPEN
IP3SET = 3.3V
TA = +85°C
TA = +25°C
TA = –40°C
Figure 5. Input IP2 vs. RF Frequency
20
18
16
14
12
10
8
6
4
2
0
2360
2410
2460
2510
2560
2610
2660
2710
2760
RF FREQUENCY (MHz)
IP3SET = OPEN
IP3SET = 3.3V
TA = +85°C
TA = +25°C
TA = –40°C
Figure 6. Noise Figure vs. RF Frequency
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
2360
2410
2460
2510
2560
2610
2660
2710
2760
RF FREQUENCY (MHz)
IP3SET = OPEN
IP3SET = 3.3V
TA = +85°C
TA = +25°C
TA = –40°C
Figure 7. Input IP3 vs. RF Frequency
18
17
16
15
14
13
12
11
10
9
8
2360
2410
2460
2510
2560
2610
2660
2710
2760
RF FREQUENCY (MHz)
IP3SET = OPEN
IP3SET = 3.3V
TA = +85°C
TA = +25°C
TA = –40°C
Figure 8. Input P1dB vs. RF Frequency
