Data Sheet

ADRF6604

Rev. B | Page 23 of 32

AC TEST FIXTURE

Characterization data for the ADRF6604 was taken under very

strict test conditions. All possible techniques were used to

achieve optimum accuracy and to remove degrading effects of

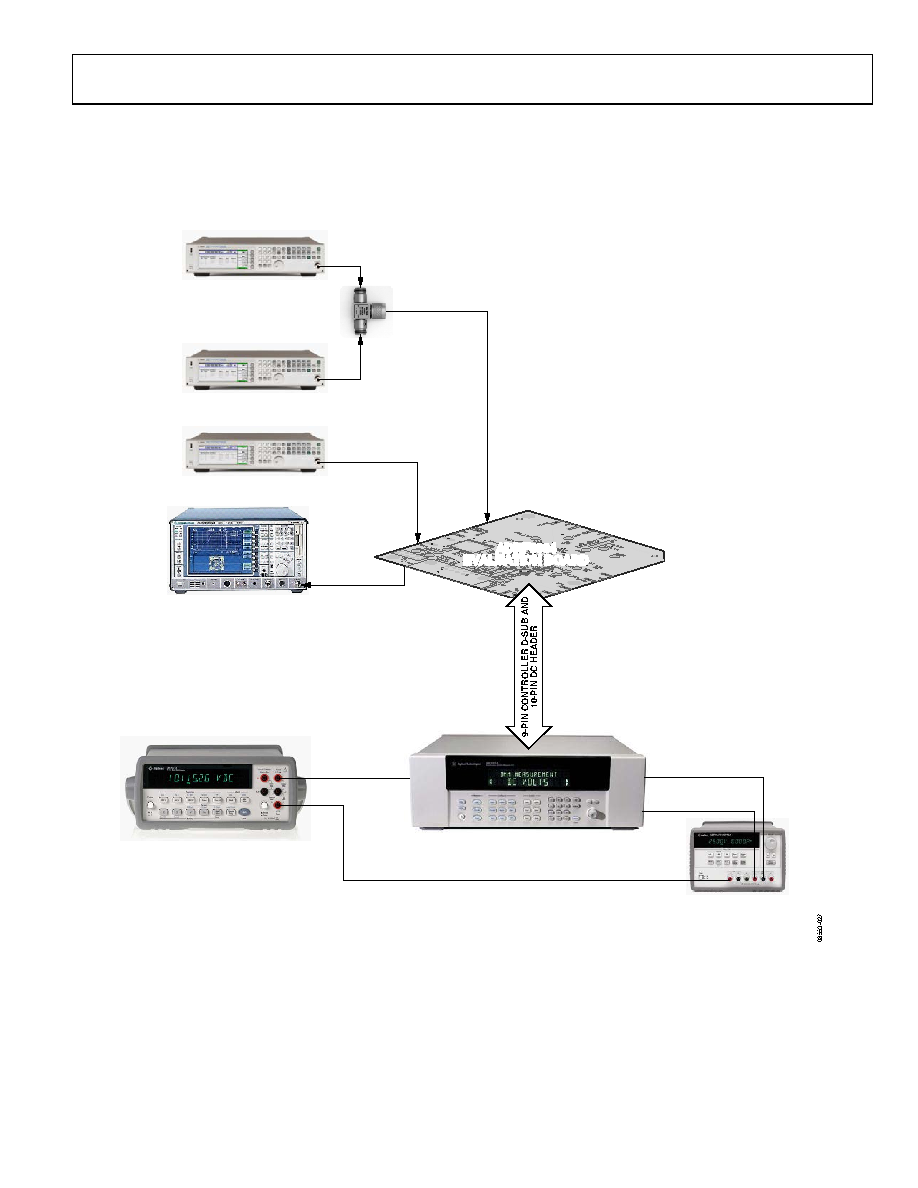

the signal generation and measurement equipment. Figure 47

shows the typical AC test setup used in the characterization of

the ADRF6604.

ROHDE & SCHWARZ

FSEA30

IF_OUT

AGILENT 34401A SET TO IDC

(SET FOR SUPPLY CURRENT)

RF1 AGILENT N5181A

RF2 AGILENT N5181A

REF_IN AGILENT N5181A

HP 11636A

POWER DIVIDER

AGILENT 34980A WITH THREE 34921 MODULES

AND ONE 34950 MODULE

ADRF6604 CHARACTERIZATION RACK DIAGRAM.

ALL INSTRUMENTS ARE CONTROLLED BY A LAB

COMPUTER VIA A USB TO GPIB CONTROLLER, DAISY

CHAINED TO EACH INDIVIDUAL INSTRUMENT.

REF_IN

RFIN

5V dc VIA

10-PIN DC HEADER

5V dc MEASURED FOR SUPPLY CURRENT

AGILENT E3631A 25V SET TO

3.3V, 6V SET TO 5V.

RETURNS ARE

JUMPERED TOGETHER

ADRF6604

EVALUATION BOARD

GND VIA

10-PIN DC HEADER

3.3V dc VIA

10-PIN DC HEADER

Figure 47. ADRF6604 AC Test Setup
