Data Sheet
ADRF6720

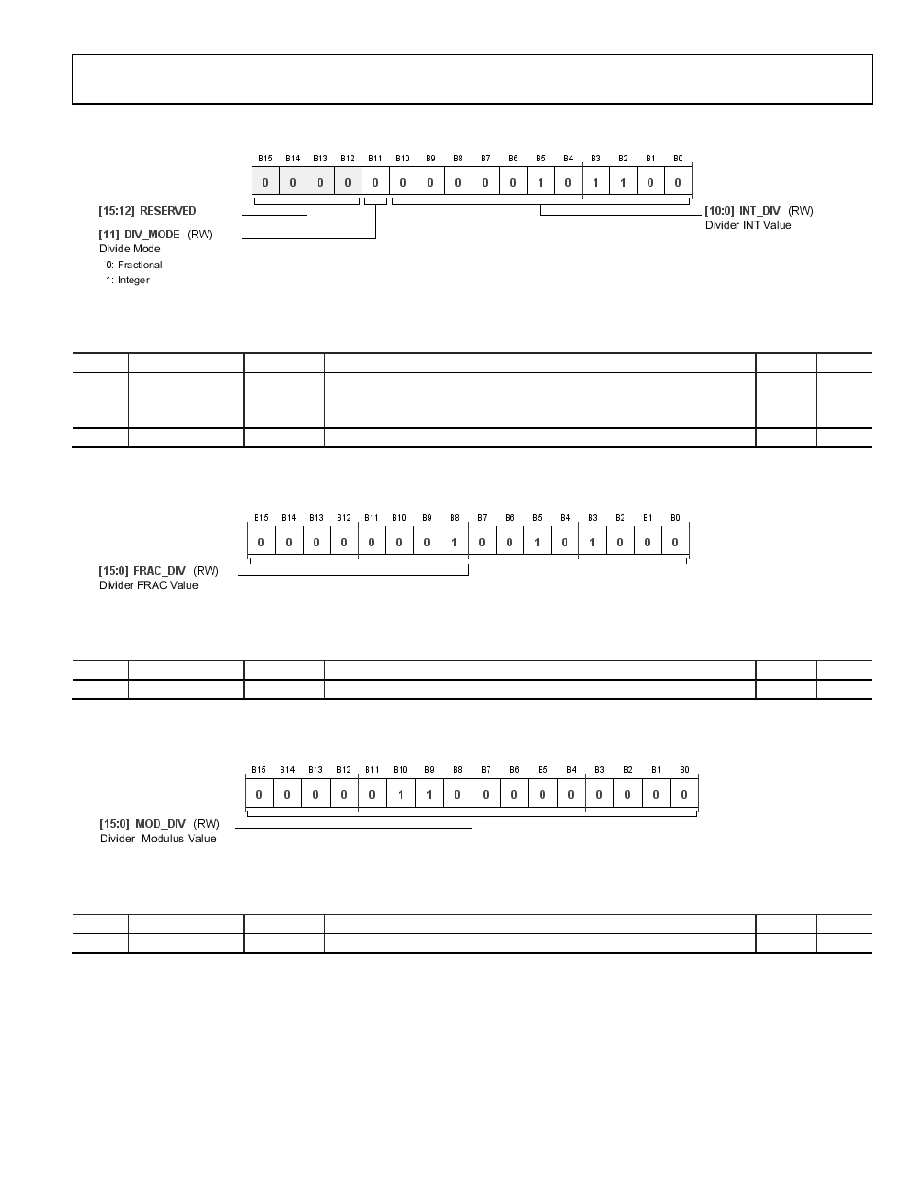

Address: 0x02, Reset: 0x002C, Name: INT_DIV
Table 17. Bit Descriptions for INT_DIV
Bits
Bit Name
Settings
Description
Reset
Access
11
DIV_MODE
Divide Mode.
0x0
RW
0
Fractional
1
Integer
[10:0]
INT_DIV
Divider INT Value.
0x2C
RW
Address: 0x03, Reset: 0x0128, Name: FRAC_DIV
Table 18. Bit Descriptions for FRAC_DIV
Bits
Bit Name
Settings
Description
Reset
Access
[15:0]
FRAC_DIV
Divider FRAC Value.
0x128
RW
Address: 0x04, Reset: 0x0600, Name: MOD_DIV
Table 19. Bit Descriptions for MOD_DIV
Bits
Bit Name
Settings
Description
Reset
Access
[15:0]
MOD_DIV
Divider Modulus Value.
0x600
RW
Rev. 0 | Page 33 of 44
