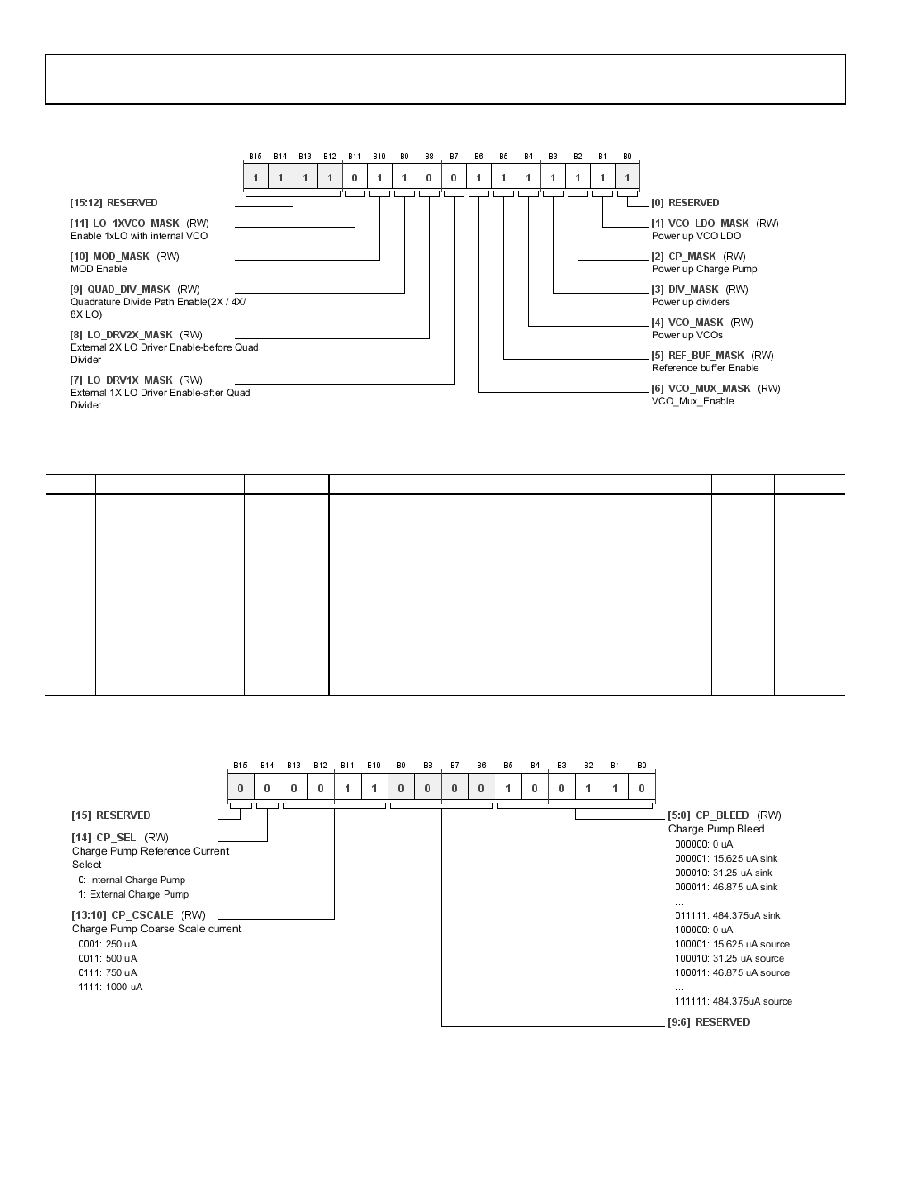

background image
ADRF6720
Data Sheet
Address: 0x10, Reset: 0xF67F, Name: ENBL_MASK
Table 20. Bit Descriptions for ENBL_MASK
Bits
Bit Name
Settings
Description
Reset
Access
11
LO_1XVCO_MASK
Enable 1 × LO with internal VCO.
0x0
RW
10
MOD_MASK
MOD Enable.
0x1
RW
9
QUAD_DIV_MASK
Quadrature Divide Path Enable (2 ×/4 ×/8 × LO).
0x1
RW
8
LO_DRV2X_MASK
External 2 × LO Driver Enable—Before Quad Divider.
0x0
RW
7
LO_DRV1X_MASK
External 1 × LO Driver Enable—After Quad Divider.
0x0
RW
6
VCO_MUX_MASK
VCO_Mux_Enable.
0x1
RW
5
REF_BUF_MASK
Reference Buffer Enable.
0x1
RW
4
VCO_MASK
Power Up VCOs.
0x1
RW
3
DIV_MASK
Power Up Dividers.
0x1
RW
2
CP_MASK
Power Up Charge Pump.
0x1
RW
1
VCO_LDO_MASK
Power Up VCO LDO.
0x1
RW
Address: 0x20, Reset: 0x0C26, Name: CP_CTL
Rev. 0 | Page 34 of 44
