Data Sheet

ADRF6755

Rev. B | Page 23 of 48

Note that BSCDIV must be recalculated if the PFD frequency is

changed. The recommended autocalibration setting is 70 µs.

During this time, the VCO VTUNE is disconnected from the output

of the loop filter and is connected to an internal reference voltage.

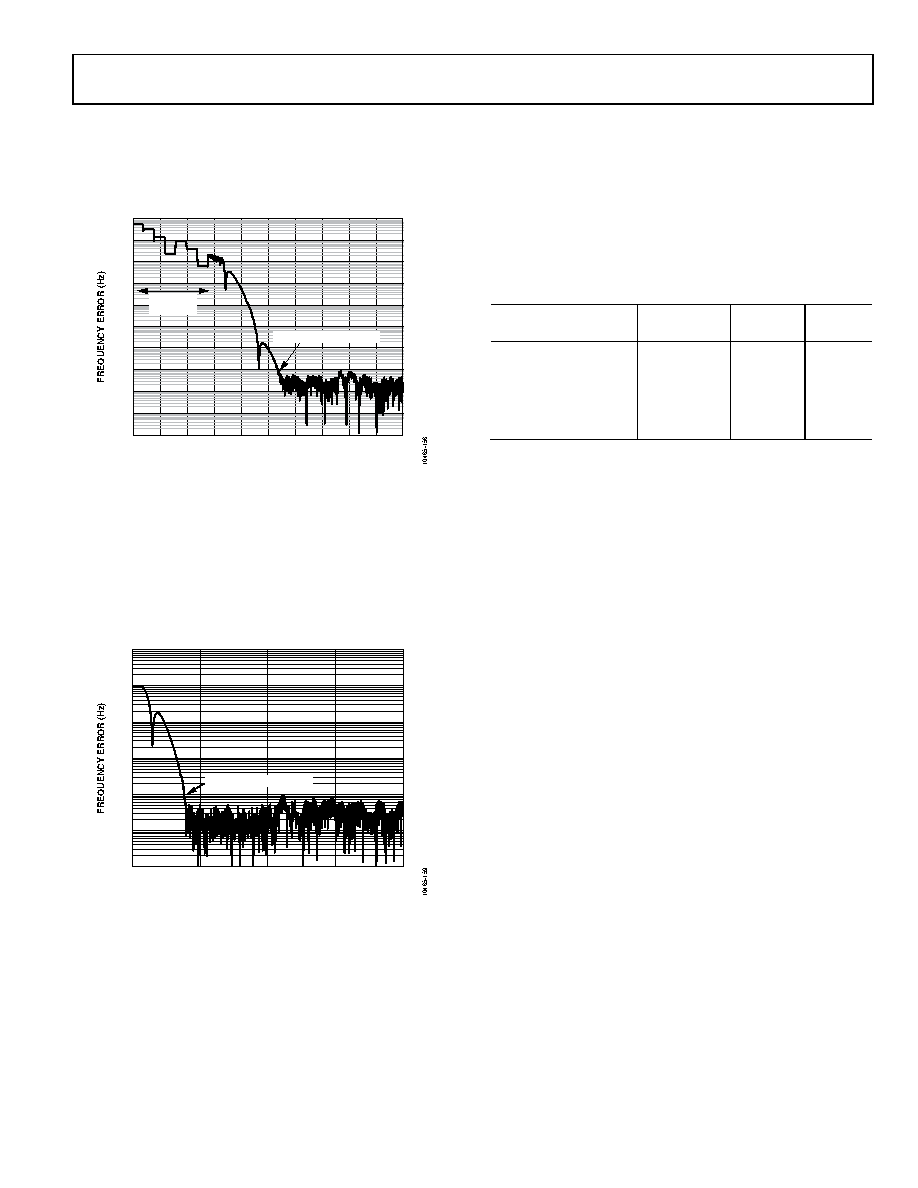

A typical frequency acquisition is shown in Figure 58.

Figure 58. PLL Acquisition

After autocalibration, normal PLL action resumes, and the

correct frequency is acquired to within a frequency error of

100 Hz in 170 μs typically. For a maximum cumulative step of

100 kHz/2RFDIV, autocalibration can be turned off by setting

tions of ≤100 kHz (for RFDIV = ÷1, 50 kHz for RFDIV = ÷2,

and so on) to occur without the autocalibration procedure,

which improves acquisition times significantly (see Figure 59).

Figure 59. PLL Acquisition Without Autocalibration for a 100 kHz Step

Programming the Correct LO Frequency

There are two steps to programming the correct LO frequency.

The user must calculate the RFDIV value based on the required

LO frequency and PFD frequency, and the N-divider ratio that

is required in the PLL.

1. Calculate the value of RFDIV, which is used to program

following lookup table, Table 6.

Table 6. RFDIV Lookup Table

LO Frequency (MHz)

RFDIVIDER

CR28[2:0]

= RFDIV

CR27[4]

1155 < LO < 2400

Divide-by-1

000

577.5 < LO ≤ 1155

Divide-by-2

001

288.75 < LO ≤ 577.5

Divide-by-4

010

144.375 < LO ≤ 288.75

Divide-by-8

011

100 < LO ≤ 144.375

Divide-by-16

100

2. Using the following equation, calculate the value of the

N-divider:

N = (2RFDIV × LO)/fPFD

(4)

where:

N is the N-divider value.

RFDIV is the setting in Register CR28, Bits[2:0].

LO is the local oscillator frequency.

fPFD is the PFD frequency.

This equation is a different representation of Equation 2.

Example to Program the Correct LO Frequency

Assume that the PFD frequency is 40 MHz and that the

required LO frequency is 1875 MHz.

From Table 6, 2RFDIV = 1 (RFDIV = 0)

N = (1 × 1875 × 106)/(40 × 106) = 46.875

The N-divider value is composed of integer (INT) and

fractional (FRAC) components according to the following

equation:

N = INT + FRAC/225

(5)

INT = 46 and FRAC = 29,360,128

The appropriate registers must then be programmed according to

the register map. The order in which the registers are programmed

is important. Writing to CR0 initiates a PLL acquisition cycle.

If the programmed LO frequency requires a change in the value

of CR27[4] (see Table 6), CR27 should be the last register

programmed, preceded by CR0. If the programmed LO frequency

does not require a change in the value of CR27[4], it is optional

to omit the write to CR27 and, in that case, CR0 should be the

last register programmed.

0.1

100

10k

100k

10M

100M

100

125

150

175

200

225

250

TIME (µs)

AUTOCAL

TIME (μs)

ACQUISITION TO 100Hz

100

10k

100k

100

150

200

TIME (μs)

ACQUISITION TO 100Hz
