7 / 20 page

Microcomputer Peripheral LSIs

MN1380 Series

Description of Operation

Notes

1: Output cannot be specified for power supply voltages under 1.5 V because operation is not guaranteed for that range.

2: VDL: Detection voltage for drop in power supply voltage

VDH: Detection voltage for rise in power supply voltage

tOL : Time lag between the time that the power supply voltage reaches the detection voltage (VDL or VDH) and the time that the

output pin (OUT) goes to "L" level.

tOH : Time lag between the time that the power supply voltage reaches the detection voltage (VDL or VDH) and the time that

the output pin (OUT) goes to "H" level.

3: These characteristics for the N-channel open drain output are when a load resistor is connected between the OUT and VDD

pins.

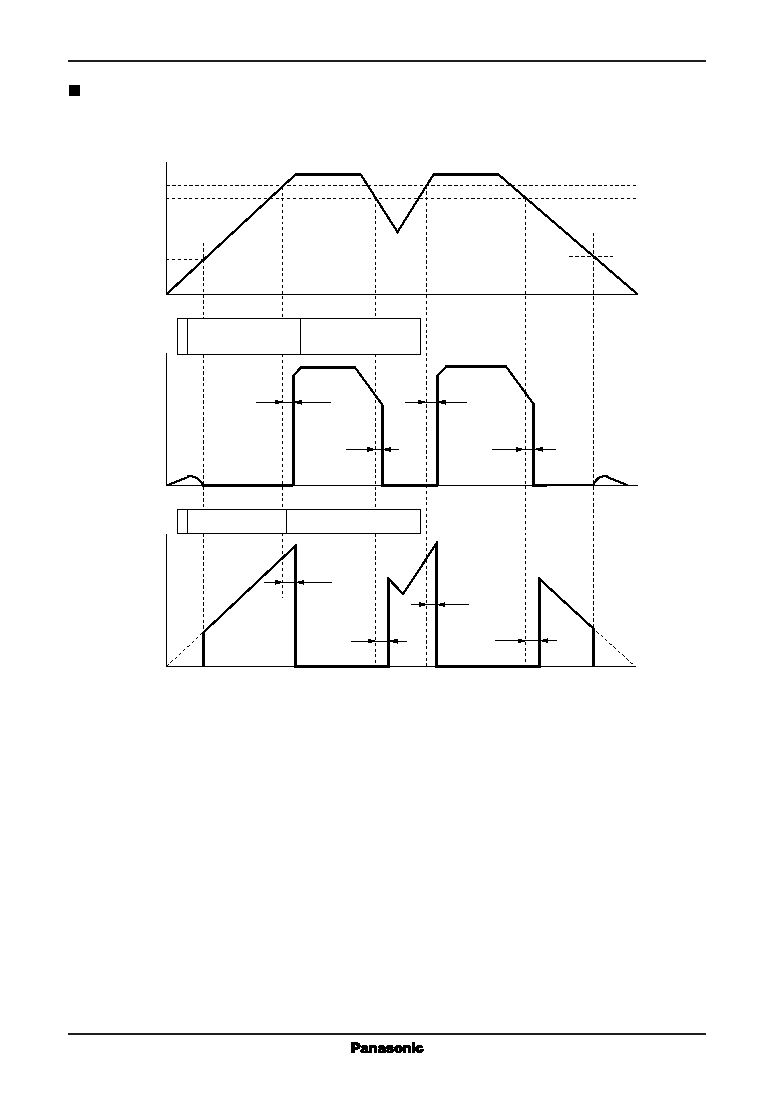

Figure 1. Description of Operation

VDD

VDH

VDL

1.5V

VOUT

CMOS output, N-channel

open drain output

MN1380/1381/1382

MN13801/13811/13821

MN13802/13812/13822

Inverted CMOS

output Figure

tOH

tOL
