MN1380 Series

Microcomputer Peripheral LSIs

TO-92 Type Package Taping-Specifications (MN1381/MN13811/MN13812)

Name

Symbol

Length (mm)

Adhesive tape width

W0

6.0

±0.5

Feed hole position

W1

9.0

±0.5

Adhesive tape position

W2

0.5 max

Distance to top of product

H

25.0 max

Distance to

H0

19.0

±0.5

bottom of product

Lead clinch height

H1

16.0

±0.5

Feed hole diameter

D0

4.0

±0.2

Tape thickness

t1

0.7

±0.2

Total tape thickness

t2

1.5 max

TO-92 Type Package Taping Dimensions (Ammunition pack)

Name

Symbol

Length (mm)

Product height*

A

5.3 max

Product width*

A1

5.2 max

Product thickness*

T

4.2 max

Lead width*

d

0.45

Taped lead length

l1

2.0 max

Product pitch

P

12.7

±1.0

Feed hole pitch

P0

12.7

±0.3

Feed hole position

P1

6.35

±0.5

Lead spacing

F1, F2

2.5

Product deflection angle

∆h1, ∆h2

2.0 max

Tape width

W

18.0

+1.0

– 0.5

+0.15

– 0.1

+0.5

– 0.2

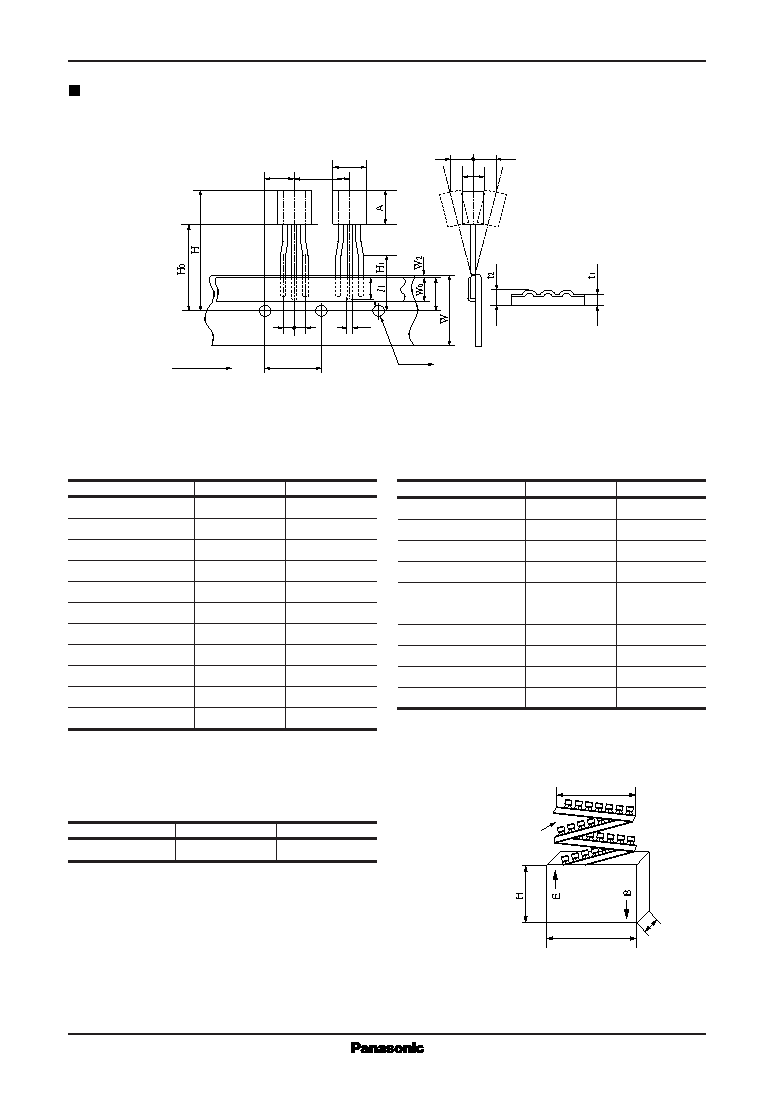

Figure 13. TO-92 Type Package Taping-Dimensions (Ammunition pack)

Figure 14. Box Dimensions for TO-92 Type Packages with Ammunition pack

WH

D

330

250

41

Unit: mm

P

d

0

T

Drawing direction

25 elements (example)

W

D

Leave the space for at

least three elements

Note*1: For further details, see the specifications issued separately.
