B7A

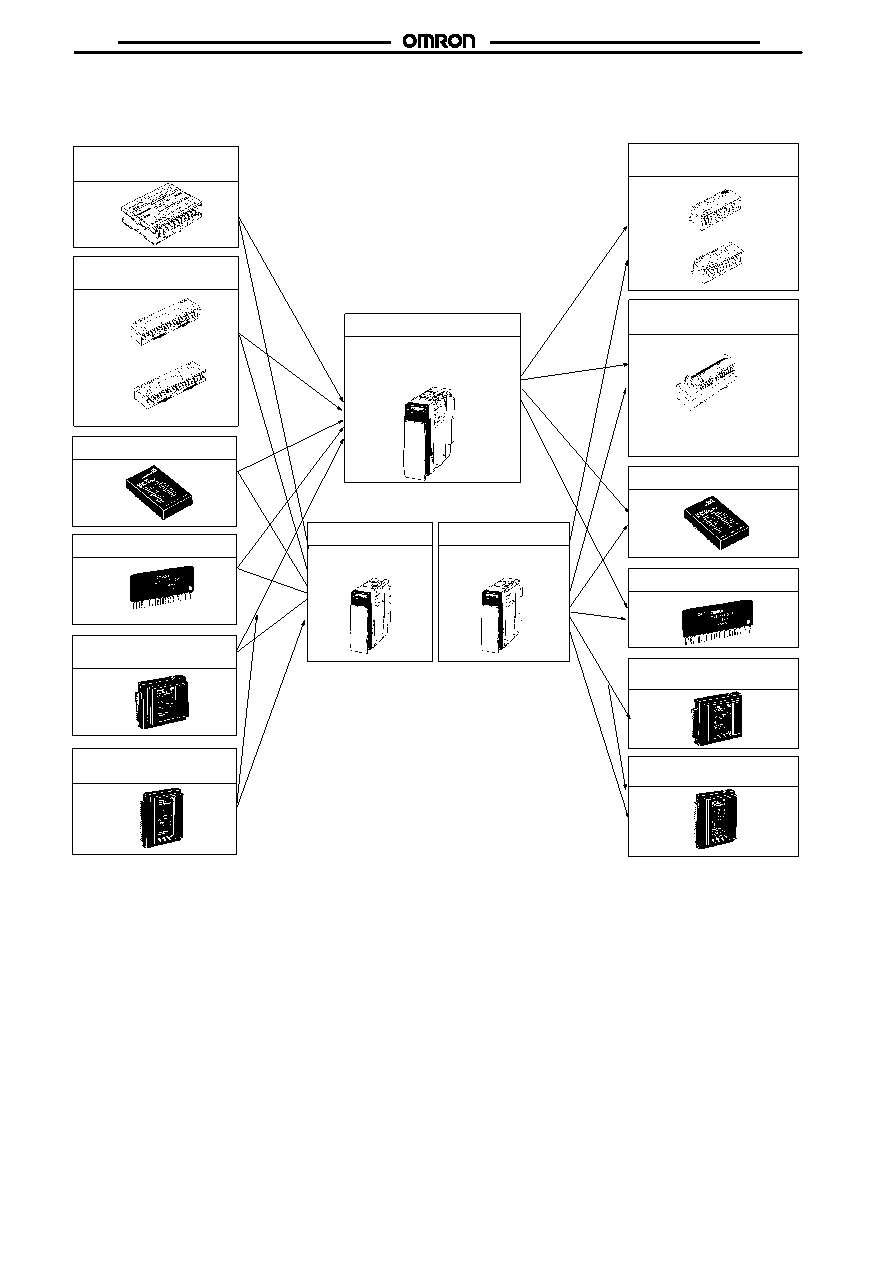

CQM1 B7A Interface Units

Note:

Use combinations of B7A Interface Units and B7A LInk Terminals with the same I/O delay time. The I/O delay time (high speed:

typically 3 ms; normal speed: typically 19.2 ms) can be switched for B7A Interface Units and 32-point B7A screw terminal models

using a selection switch. Set the same I/O delay time for connected Units.

16-point Input (Transmission)

Models

CQM1 Series

16-point Output

(Reception) Models

Screw terminal model

(32 points)

Screw terminal model

(16 output points)

Modular model (16 points)

B7A

Hybrid IC model (16 points)

B7AH

PLC connector model

(16 points)

B7A

PLC connector model

(32 points)

B7A

Input/output model

CQM1-B7A21

(16 input and 16 output points)

Input model

Output model

CQM1-B7A13 (32 inputs)

CQM1-B7A12 (16 inputs)

CQM1-B7A03 (32 outputs)

CQM1-B7A02 (16 outputs)

Note:

Two 16-type models can be used to connect

to 32-point models.

Screw terminal model

(16 points)

B7A

B7AS

Relay-mounted screw terminal

model (16 points)

G70D-R6

jj1-B7A

Note:

Only the normal I/O delay

time (typically 19.2 ms) is

available.

Modular model (16 points)

B7A

Hybrid IC model (16 points)

B7AH

PLC connector model

(16 points)

B7A

PLC connector model

(32 points)

B7A

B7AS
