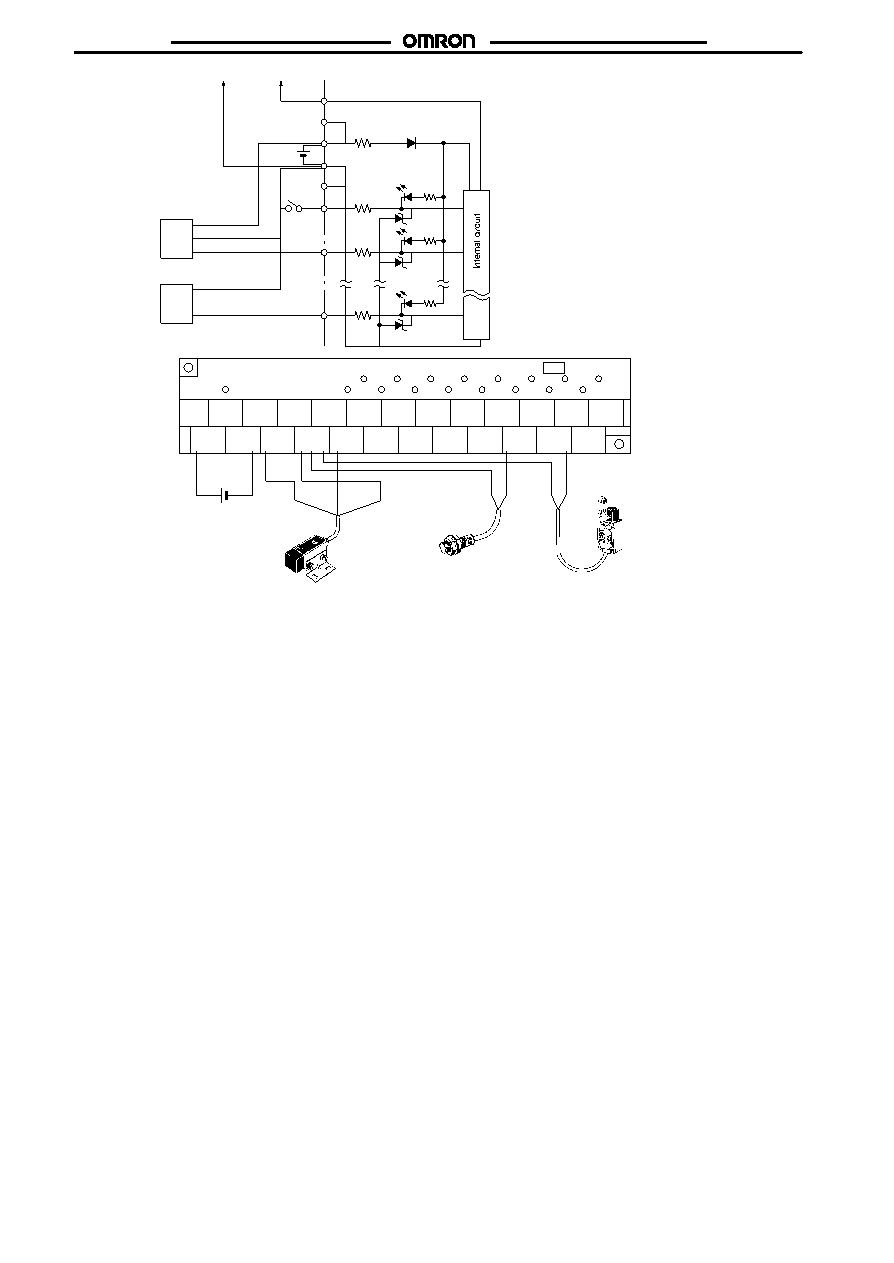

28 / 121 page  B7A/B7AS B7A/B7AS 26 B7AS-T6B1/-T6B6 (Input, Active Low) Note: 1. The wire colors have been changed in accordance with the revision of the Japanese Industrial Standards for photoelectric sensors and proximity sensors. The colors in parentheses refer to the old colors. 2. Do not short-circuit the SIG terminal with the positive power supply terminal, negative power supply terminal, or a B jj terminal, otherwise the internal elements of the B7A will be damaged and no transmission will be possible. SIG + + – – A0 A jj A jj 12 to 24 VDC Transmission Three- wire sensor Two- wire sensor Brown (red) Blue (black) Black (white) Blue (black) Brown (white) Contact switch Black (white) SIG + – IN1 A1 IN3 A3 IN5 A5 IN7 A7 IN9 A9 IN11 A11 IN13 A13 IN15 A15 + – IN0 A0 IN2 A2 IN4 A4 IN6 A6 IN8 A8 IN10 A10 IN12 A12 IN14 A14 IN 12 to 24 VDC Power supply + Power supply – Brown (red) Blue (black) Blue (black) Brown (white) Photoelectric sensor Three-wire proximity sensor with built-in amplifier (with NPN output) Two-wire DC proximity sensor Limit switch |
|
