B7A/B7AS
B7A/B7AS
31
Compact Modular Models
B7A-T6D7-D
(Input)
Trans-
mission
line
12 to
24 VDC
NPN open collector
3-wire sensor, PLC etc.
Switch

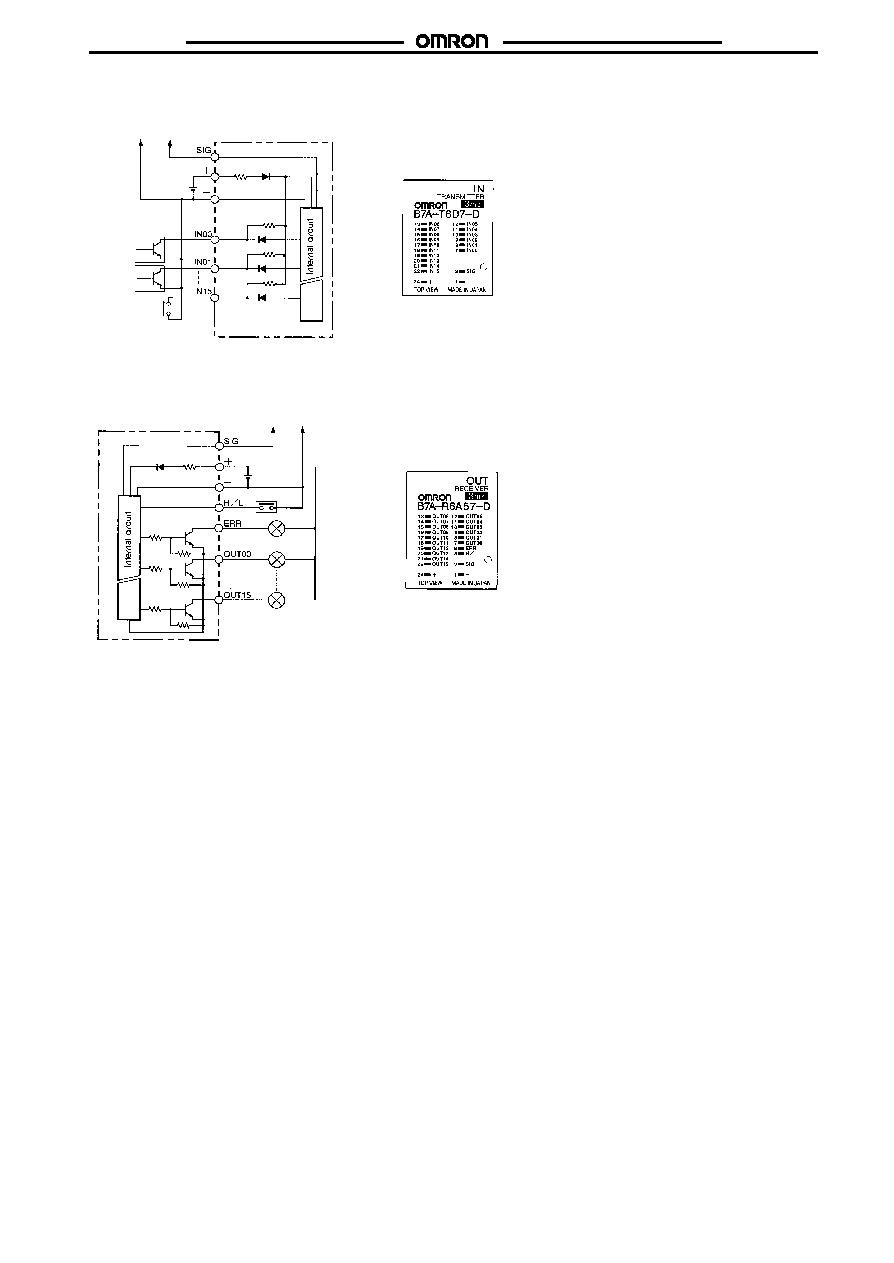

Circuit Diagram
Inside B7A
B7A-R6A57-D
(Output)
Trans-
mission
line
12 to
24 VDC
Selection switch (See note.)
Relay, etc.
Note:
Selection switch (mounted externally):
OFF
→HOLD
ON
→LOAD OFF
Inside B7A
Circuit Diagram
