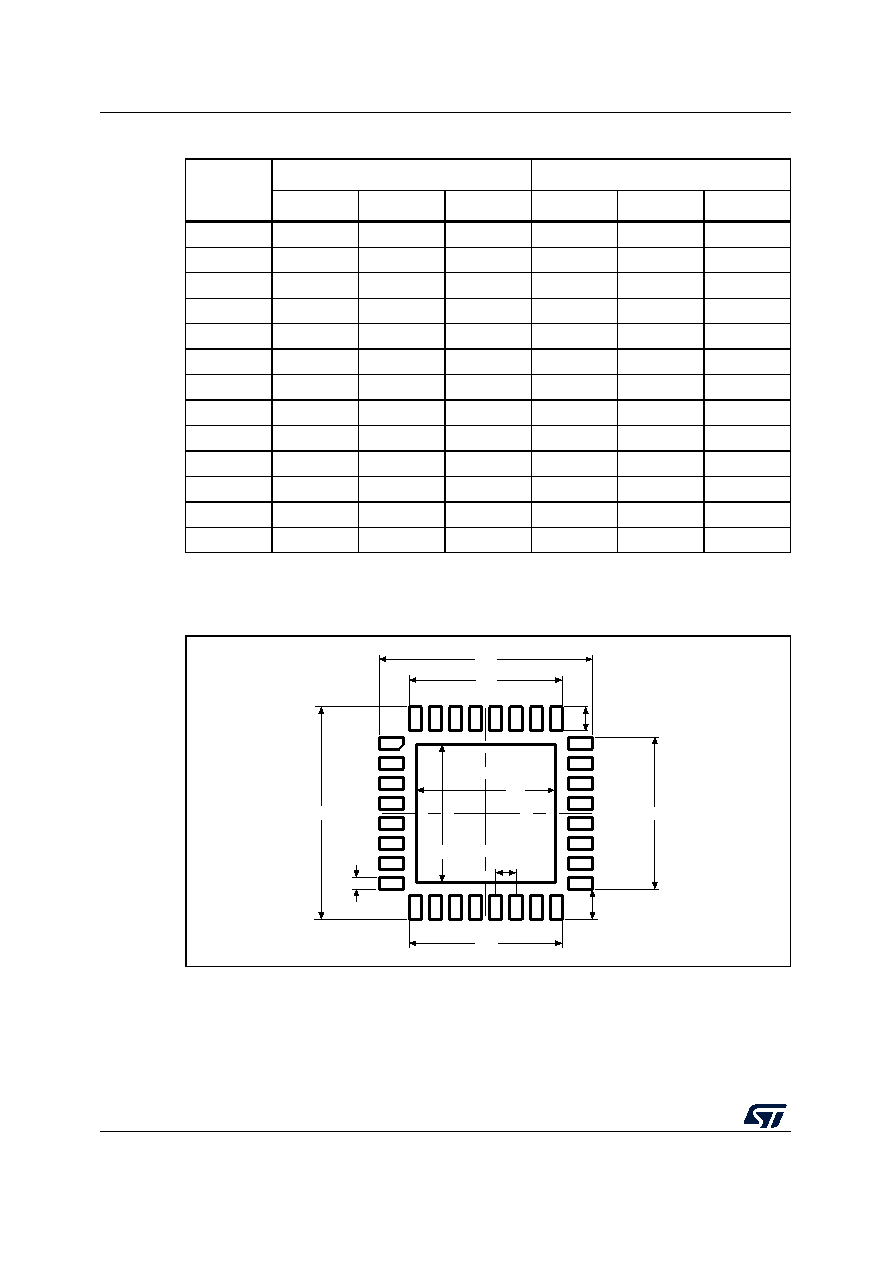

122 / 132 page  Package information STM32L082xx 122/132 DS10688 Rev 7 Figure 44. UFQFPN32 – Recommended footprint 1. Dimensions are expressed in millimeters. Table 81. UFQFPN32 – Mechanical data Symbol millimeters inches(1) 1. Values in inches are converted from mm and rounded to 4 decimal digits. Min Typ Max Min Typ Max A 0.500 0.550 0.600 0.0197 0.0217 0.0236 A1 0.000 0.020 0.050 0.000 0.0007 0.0020 A3 - 0.152 - - 0.0060 - b 0.180 0.230 0.280 0.0071 0.0091 0.0110 D(2) 2. Dimensions D and E do not include mold protrusion, not to exceed 0.15 mm. 4.900 5.000 5.100 0.1929 0.1969 0.2008 D1 3.400 3.500 3.600 0.1339 0.1378 0.1417 D2 3.400 3.500 3.600 0.1339 0.1378 0.1417 E(2) 4.900 5.000 5.100 0.1929 0.1969 0.2008 E1 3.400 3.500 3.600 0.1339 0.1378 0.1417 E2 3.400 3.500 3.600 0.1339 0.1378 0.1417 e - 0.500 - - 0.0197 - L 0.300 0.400 0.500 0.0118 0.0157 0.0197 ddd - - 0.080 - - 0.0031 A0B8_FP_V2 5.30 3.80 0.60 3.45 0.50 3.45 3.80 0.75 3.80 0.30 5.30 16 17 9 8 1 25 32 24 |
|
