IP101G-DS-R01 데이터시트(PDF) 9 Page - List of Unclassifed Manufacturers

부품명 IP101G-DS-R01
상세설명  Single Port 10/100 MII/RMII/TP/Fiber Fast Ethernet Transceiver
PDF  65 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  ETC [List of Unclassifed Manufacturers]
홈페이지
Logo ETC - List of Unclassifed Manufacturers

IP101G-DS-R01 데이터시트(HTML) 9 Page - List of Unclassifed Manufacturers

Back Button IP101G-DS-R01 Datasheet HTML 5Page - List of Unclassifed Manufacturers IP101G-DS-R01 Datasheet HTML 6Page - List of Unclassifed Manufacturers IP101G-DS-R01 Datasheet HTML 7Page - List of Unclassifed Manufacturers IP101G-DS-R01 Datasheet HTML 8Page - List of Unclassifed Manufacturers IP101G-DS-R01 Datasheet HTML 9Page - List of Unclassifed Manufacturers IP101G-DS-R01 Datasheet HTML 10Page - List of Unclassifed Manufacturers IP101G-DS-R01 Datasheet HTML 11Page - List of Unclassifed Manufacturers IP101G-DS-R01 Datasheet HTML 12Page - List of Unclassifed Manufacturers IP101G-DS-R01 Datasheet HTML 13Page - List of Unclassifed Manufacturers Next Button
Zoom Inzoom in Zoom Outzoom out
 9 / 65 page
background image
IP101G
Data Sheet
1
Pin diagram
RXER
CRS/LEDMOD
RXDV/CRS_DV/FX_HEN
X1
X2
RXD2
9/65
January 14, 2014
Copyright © 2011, IC Plus Corp.
IP101G-DS-R01
RXD3
RXCLK/50M_CLKO
DGND
RXD0
NC
RESET_N
IP101GA
(LQFP-48)
37
38
39
40
41
42
43
44
45
46
47
48
24
23
22
21
20
19
18
17
16
15
14
13
NC
NC
TXER/FXSD
NC
Note:
Those pins in "blue"are
different from IP101A.
NC
RXD1
INTR
NC
DGND
NC
LED3/PHY_AD3
VDDIO

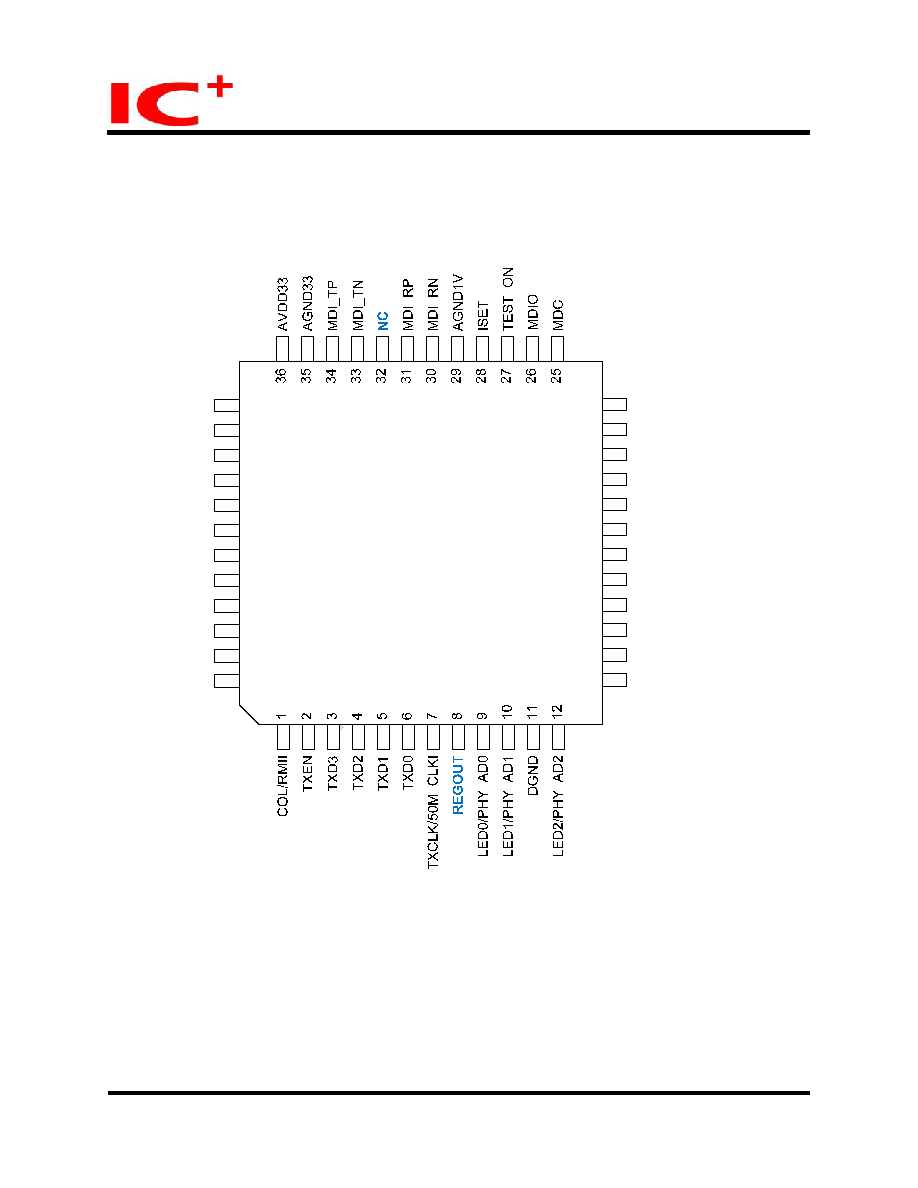

Figure 2 IP101GA 48 Pin Top view Diagram
