CC1010

SWRS047

Page 74 of 152

SCK

(CPOL=0, CPHA=0)

SCK

(CPOL=0, CPHA=1)

SCK

(CPOL=1, CPHA=0)

SCK

(CPOL=1, CPHA=1)

MO / MI

DORD=0

01234

MO / MI

DORD=1

76543

SPSR.SPA

SPSR.WCOL is set if SPDR is written here

SPDR read by 8051

Data received during last byte transmission

New data

SPDR is written by 8051 here,

while SPCR.SPE is active

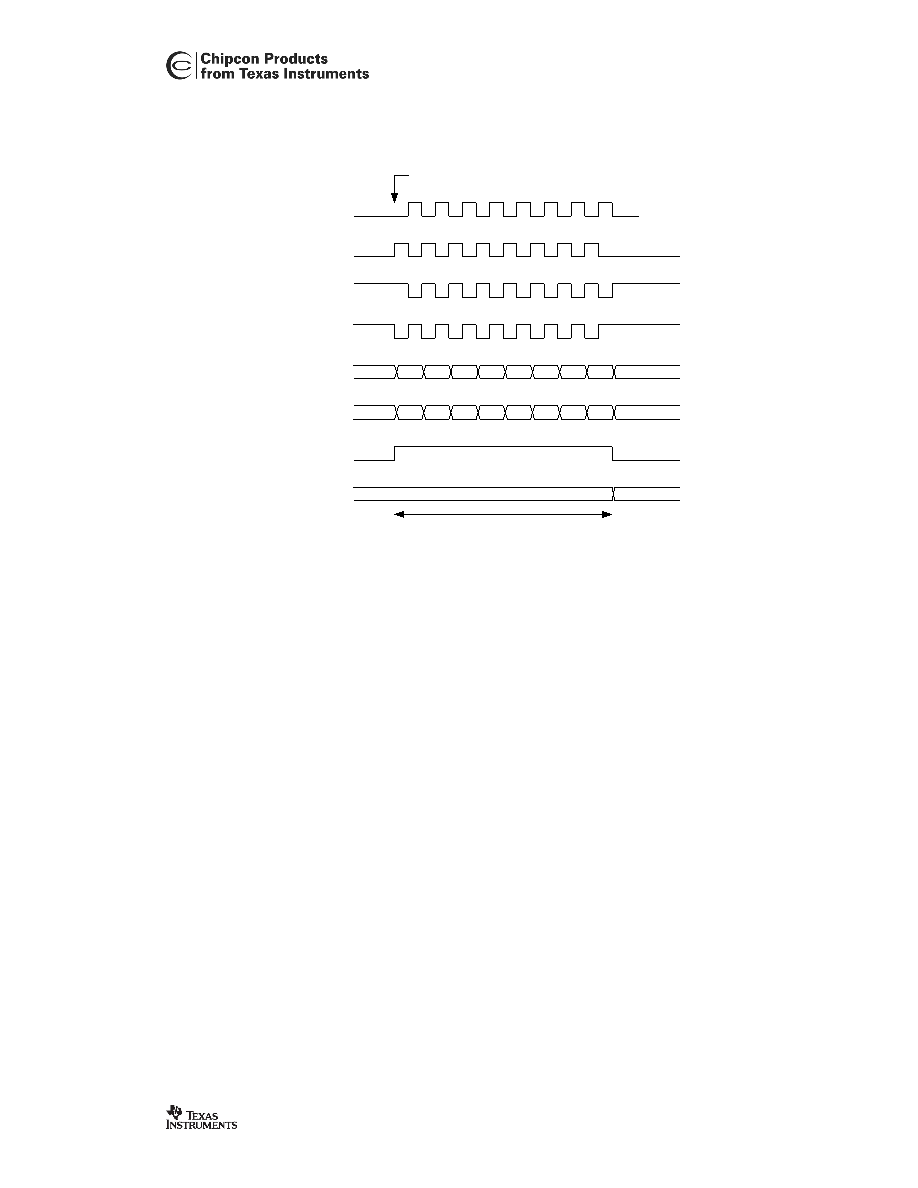

Figure 18. SPI Data Flow
