CC1010
SWRS047
Page 135 of 152
20. Package Description (TQFP-64)

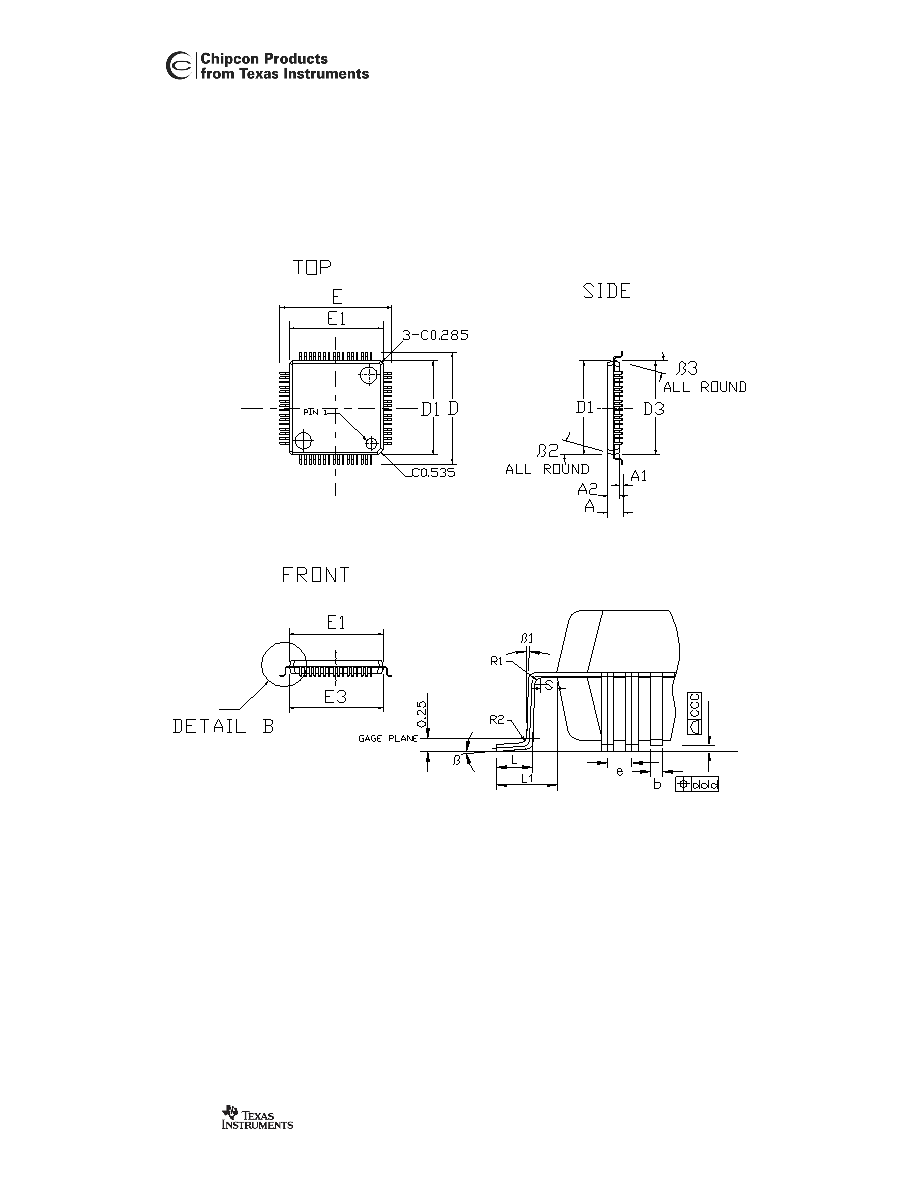

CC1010 is packaged in a TQFP-64 package. The package is shown in Figure 45 below and the
dimensions are listed in Table 40. Please note that the drawing in Figure 45 is not to scale.
Figure 45. TQFP-64 package
