ISL73041SEH Datasheet

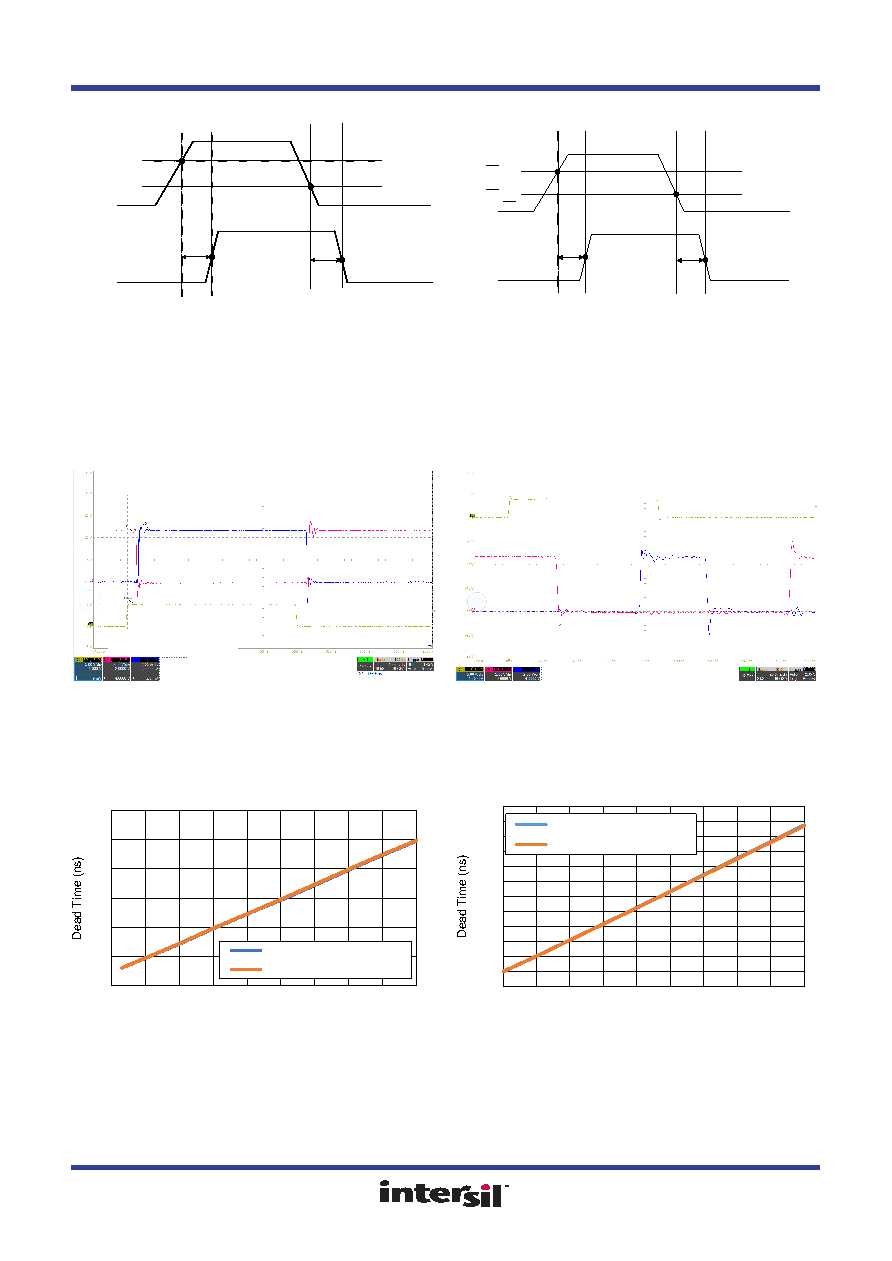

4.

Typical Performance Curves

Figure 10. EN Propagation Delay

Figure 11. FTLb Propagation Delay (External Driven)

Unless otherwise specified, typical performance curves are at VDD=12V, PHS=0V; PVCC=4.5V and TA = +25°C.

Figure 12. Prop Delay & Dead Time Delay with

RDU = RDL = GND or 1.3kΩ

Figure 13. Prop Delay & Dead Time Delay with

RDU = RDL = 10kΩ

Figure 14. Programmable Dead Time Range 1.3kΩ to

10kΩ

Figure 15. Programmable Dead Time Range 10kΩ to

100kΩ

EN

EN VIL

EN VIH

For PWM = 0V, LG goes high

For PWM = 5V, UG goes high

tENH

tENL

For PWM = 0V,

LG ignores PWM and goes low

For PWM = 5V,

UG ignores PWM and goes low

PVCC = FB = 4.5V

PWM = 0V for LG

PWM = 5V for UG

FLT VIL

FLT VIH

For PWM = 0V, LG goes high

For PWM = 5V, UG goes high

t_FLTbR

t_FLTbF

FLT

UG and LG

For PWM = 0V,

LG ignores PWM and goes low

For PWM = 5V,

UG ignores PWM and goes low

PWM to UG Propagation Delay: 28.4ns

PWM to LG Propagation Delay: 28.6ns

UG to LG Dead Time: 5.8ns

LG to UG Dead Time: 6.1ns

PWM to UG Propagation Delay: 28.4ns

PWM to LG Propagation Delay: 29.4ns

UG to LG Dead Time: 48.6ns

LG to UG Dead Time: 49.5ns

0

10

20

30

40

50

60

123456789

10

RDU = RDL Resistance (kΩ)

LG to UG Dead Time (ns)

UG to LG Dead Time (ns)

0

50

100

150

200

250

300

350

400

450

500

550

600

10

20

30

40

50

60

70

80

90

100

RDU = RDL Resistance (kΩ)

LG to UG Dead Time (ns)

UG to LG Dead Time (ns)
