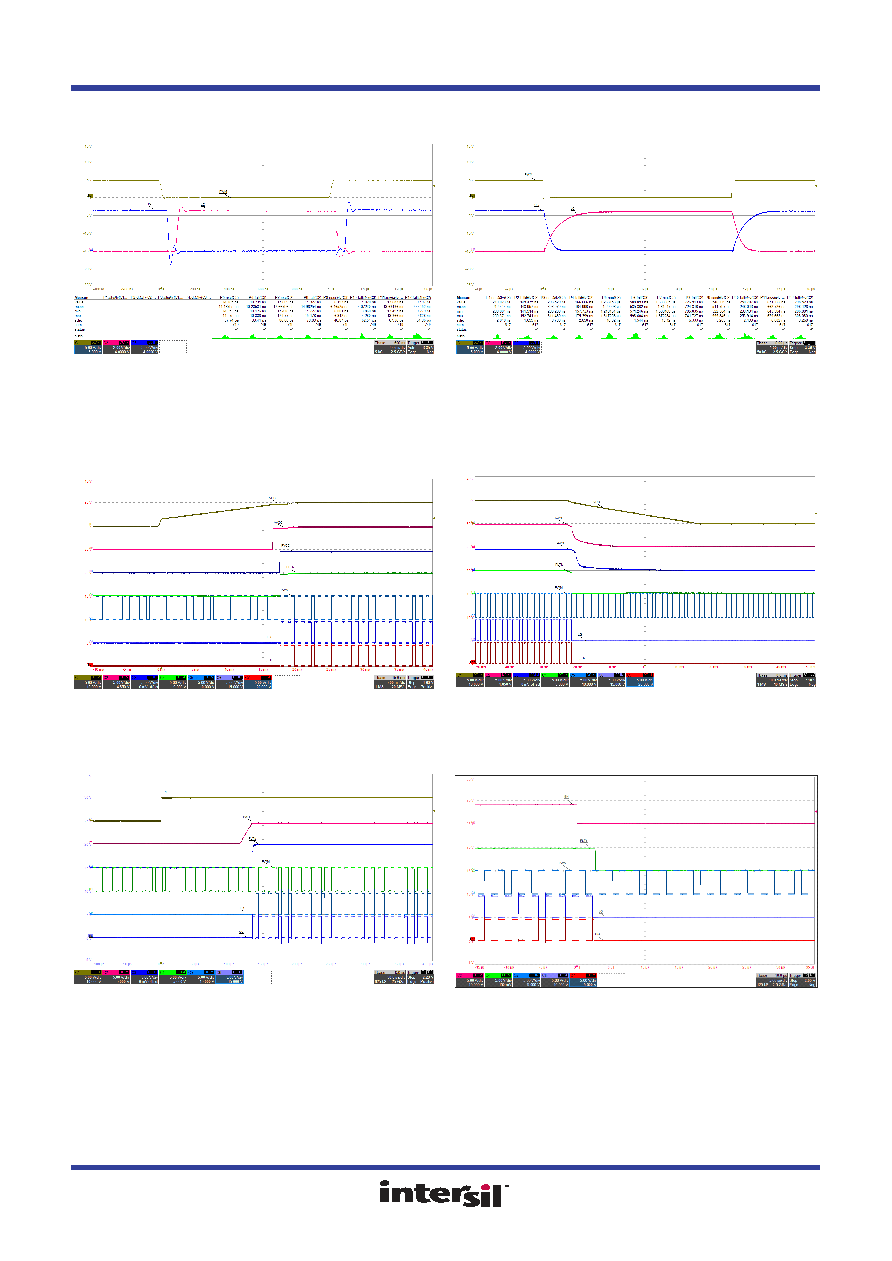

Figure 40. UG and LG Transient Response; 5.1nF on UG

and 10nF on LG vs

Figure 41. UG and LG Transient Response; 470nF on UG

and 1000nF on LG

Figure 42. VDD Power-Up Sequence with EN = VDD

Figure 43. VDD Power-Down Sequence with EN = VDD

Figure 44. EN Rising Sequence

Figure 45. EN Falling Transient Response

Unless otherwise specified, typical performance curves are at VDD=12V, PHS=0V; PVCC=4.5V and TA = +25°C.
