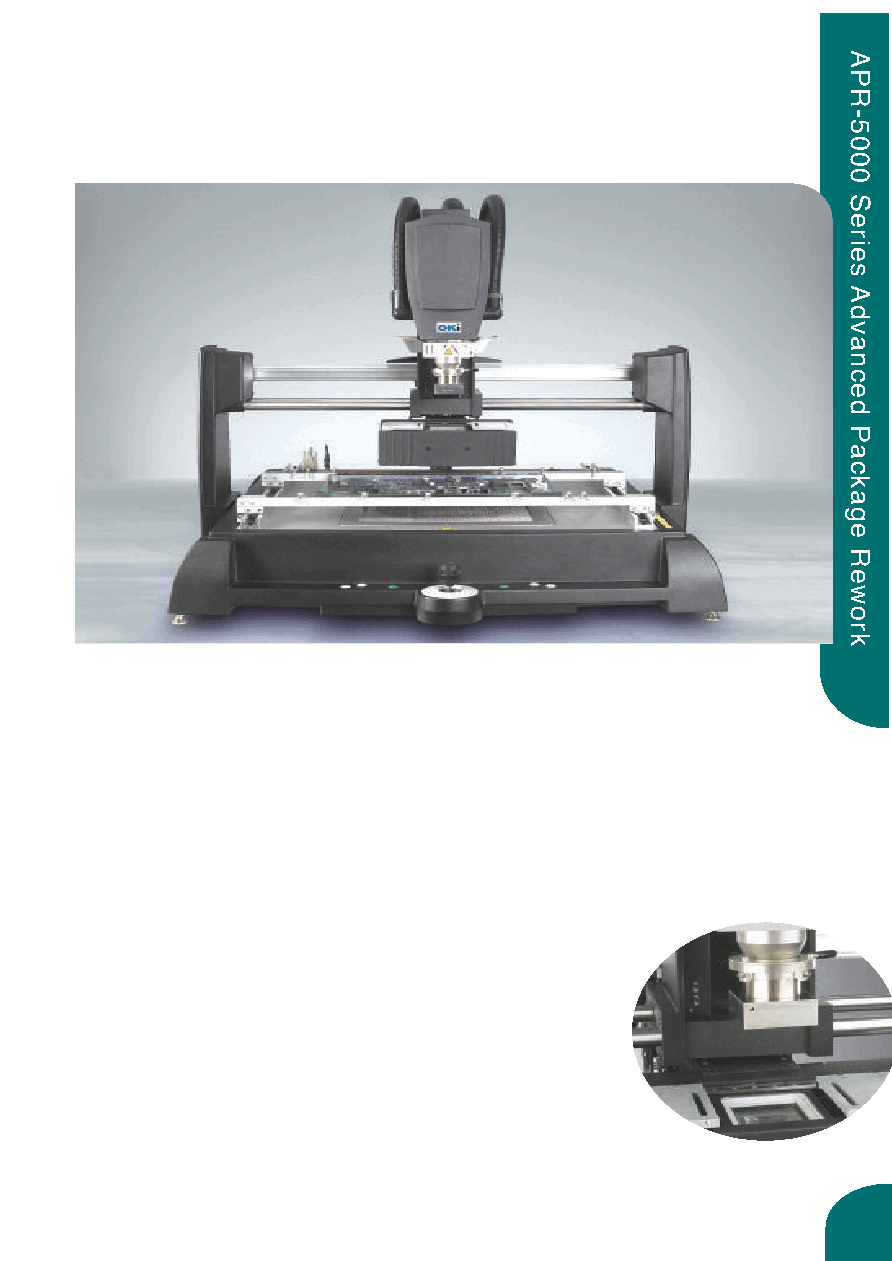

APR-5000-XLS Advanced Package Rework System

TheAPR-5000-XLSAdvancedPackageReworkSystemprovidesboardcapabilitywithsmallboardprecision.This

systemperformsprecise,costeffectivereworkofthewidestrangeofPCBsandcomponenttypes,fromlargeboards

upto24.5"x24.5"(622mmx622mm)tocomponentsdownto0.020"x0.010"(0.5mmx0.25mm).

TheflexibleAPR-5000-XLSSystemincorporatesdualstagepre-heatersandhasthethermalcapacityandcontrolto

executepreciseprofilesofbothlargeandsmallPCBs,deliveringuniformtemperaturecontrolhorizontally,acrossthe

surfaceofPCBsupto0.25"(6.35mm)thick,andverticallybetweenthedieandballofthereworkedcomponent.

MotorizedX,Y,Zadjustmentsspeedplacementandhelpensureprocessrepeatability.Inaddition,motorizedTheta

axisprovides360ºrotationtosimplifycomponentorientation.Together,theseadvancedcontrolsreduceoperator

fatigue,improveplacementaccuracyandprovideprocessconsistency.

FeaturedontheAPR-5000-XLSAdvancedPackageReworkSystemisaninnovative

SplitVisionSystem,whichallowsoperatorstoviewtheoppositecornersofa

component,includingsplittingonrectangularcomponents,withthenecessary

magnificationtomakeitsplacementandregistrationfastandaccurate.
