Tip and Cartridge Options

WiththeMFRSeriesyoucanuseheatertipsortip

cartridges,eachfillingaspecificneed.Heatertipsarecost

effectivetomeetthedemandsofpointtopoint,production

soldering.Whiletipcartridgesaresuitedforhigh

performanceandreworkapplications.Bothoptions

incorporate thepopularquickchangedesignOKtipsare

wellknownfor,whicheliminatesthemaintenance

associatedwithtraditionalirons.TheOKcartridgetiphas

theslimmestdiameterallowingaccesstothetightest

applicationsanditssinglepiecedesignprovidesasecure

groundconnectionprotectingsensitivecomponents.

Versatilty, Performance and Value

Thesehighperformancesystemscanbeadaptedtoyour

exactneeds,whetheritiscosteffectiveproduction

soldering,morecomplicatedreworkcartridges,handling

smallcomponentswiththeuniquePrecisionTweezerhand-

pieceorperformingthrough-holedesoldering.

Allunitsinclude“AutoStandby”and“AutoOff”functions

whichcanbeprogrammedtoactivateondifferenttimingto

helptiplife,especiallywhenworkingonalead-free

process.Proprietarybuilt-inmotiondetectionthenbrings

theunitbacktolifewhentheoperatorliftsthehand-piece

fromacradle.Inaddition,aspeciallydesignedlead-free

workstandprovidesefficienttipcleaningandmaintenance

options.

And,whenmultipleunitsareusedonthesamebenchorfor

thesameprocess,smartmechanicaldesignallowsforthe

unitstobeinterlocked,maximizingbenchspace.

Comfort and Simplicity

Theshorttip-to-gripdistanceoftheMFRhand-piece

improvesprocessprecisionforfinepitchapplications.The

cartridgesystemprovidestheslimmestshaftformaximum

accesswhilsttheprecisiontweezerdesignenablesrework

ofthesmallestchipsandresistors,suchas0201chips.

Ergonomicdesigndeliverssuperiorperformancewith

operatorcomfortandcontrol.

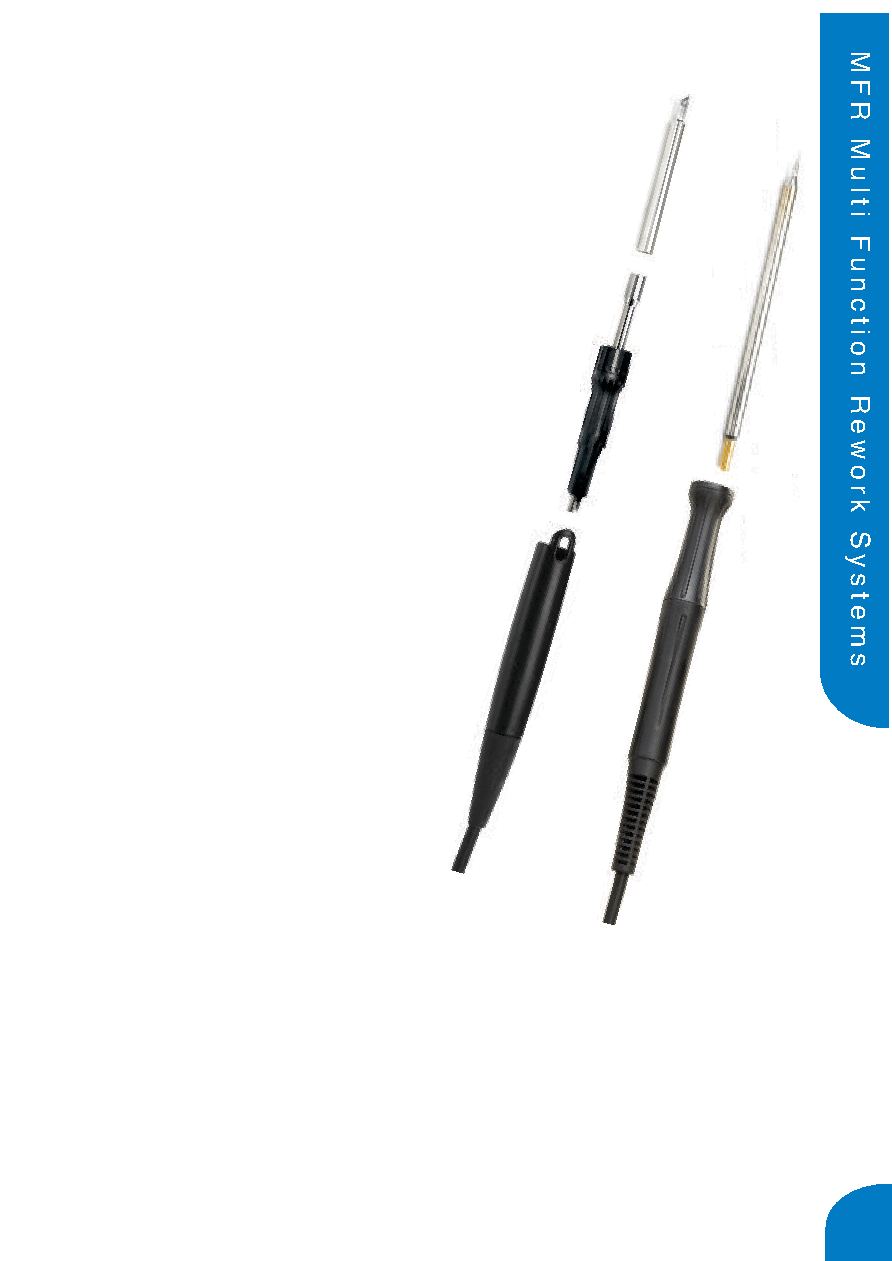

Tip

CoilAssembly

Cartridge

Hand-Piece
