Preliminary Technical Data
ADL5521
Rev. PrC| Page 13 of 45

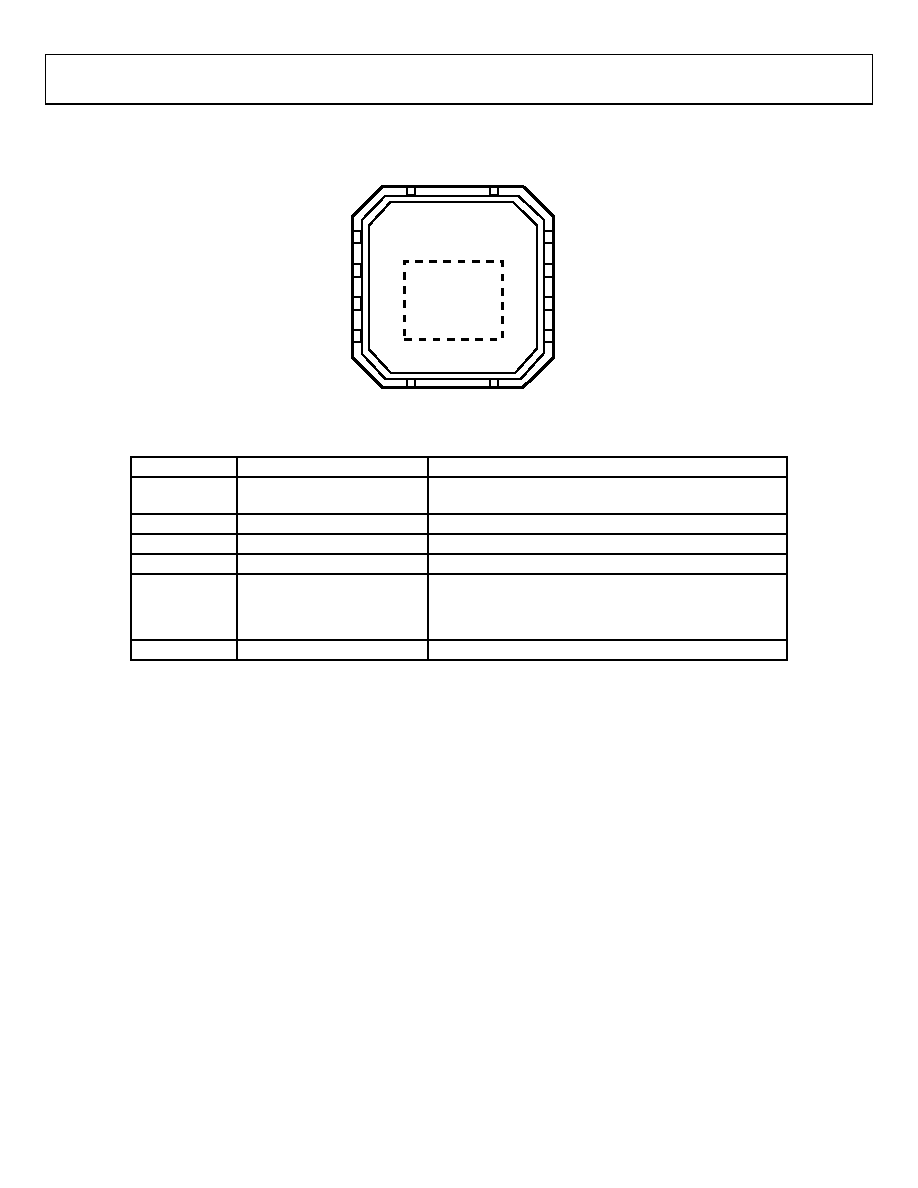

PIN CONFIGURATION AND FUNCTIONAL DESCRIPTIONS
ADL5521
VBIAS 1
RFIN 2
NC 3
NC 4
5 NC
6 NC
7 RFOUT
8 VPOS
Top View
(not to scale)
Exposed Pad
Figure 2. 8-Lead LFCSP
Table 3. Pin Function Descriptions- 8Lead CSP
Pin No.
Mnemonic
Description
1
VBIAS
Bias: Internal DC bias. This pin should be connected to VPOS
through a 3.3K
Ω resistor for optimum performance
2
RFIN
RF Input: Input to LNA
3,4,5,6
NC
NC: No internal connection
7
RFOUT
RF Output: Must be AC-coupled.
8
VPOS
Supply: VDD bias needs to be bypassed to ground using
low-inductance capacitors. The recommended
configuration is for the output matching to be done on this
pin. See schematics in applications section.
Exposed pad
EP
Exposed Paddle: Connect to a low impedance ground plane
