Preliminary Technical Data
ADL5521
Rev. PrC| Page 21 of 45

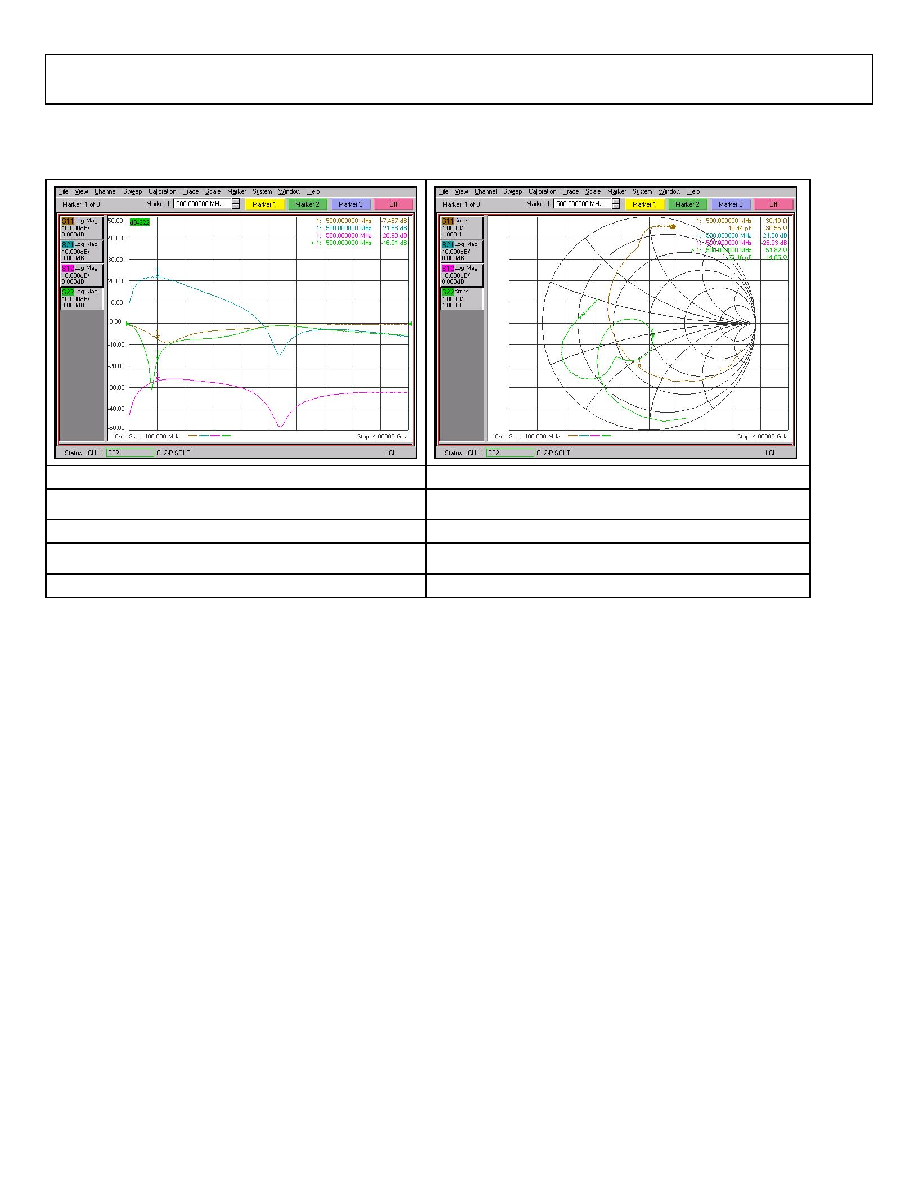

TYPICAL PERFORMANCE CHARACTERISTICS, 500MHZ, VPOS = 3V
Matched for optimal noise figure, external matching circuit included.
Figure 45. Typical S Parameters, Log magnitude
Figure 46. S11 and S22, Smith Chart
Figure 47.Gain, P1dB, OIP3 vs. Frequency
Figure 48. Distribution of Noise Figure for Five Parts
Figure 49. Output Power and Gain vs. Temperature
Figure 50. O IP3 vs. Output Power, Temperature and Frequency
