Data Sheet

ADL8201

DC to 30GHz, RF Limiter

Rev. 0

DOCUMENT FEEDBACK

TECHNICAL SUPPORT

One Analog Way, Wilmington, MA 01887-2356, U.S.A.

|

Tel: 781.935.5565

|

©2026 Analog Devices, Inc. All rights reserved.

FEATURES

►

Wideband frequency range: DC to 30GHz

►

Insertion loss

►

0.3dB typical from 0.01GHz to 20GHz

►

0.7dB typical from 20GHz to 30GHz

►

Power handling

►

37dBm continuous wave typical to 6GHz

►

>44dBm pulsed typical to 2GHz

►

Flat leakage

►

17dBm typical from 0.01GHz to 20GHz

►

15dBm typical from 20GHz to 30GHz

►

Recovery time: <10ns

►

Extended operating temperature range: −55°C to +125°C

►

RoHS-compliant, 2mm × 2mm × 0.85mm, 8-lead LFCSP

APPLICATIONS

►

RF transceivers

►

Radar applications

►

Test and measurement

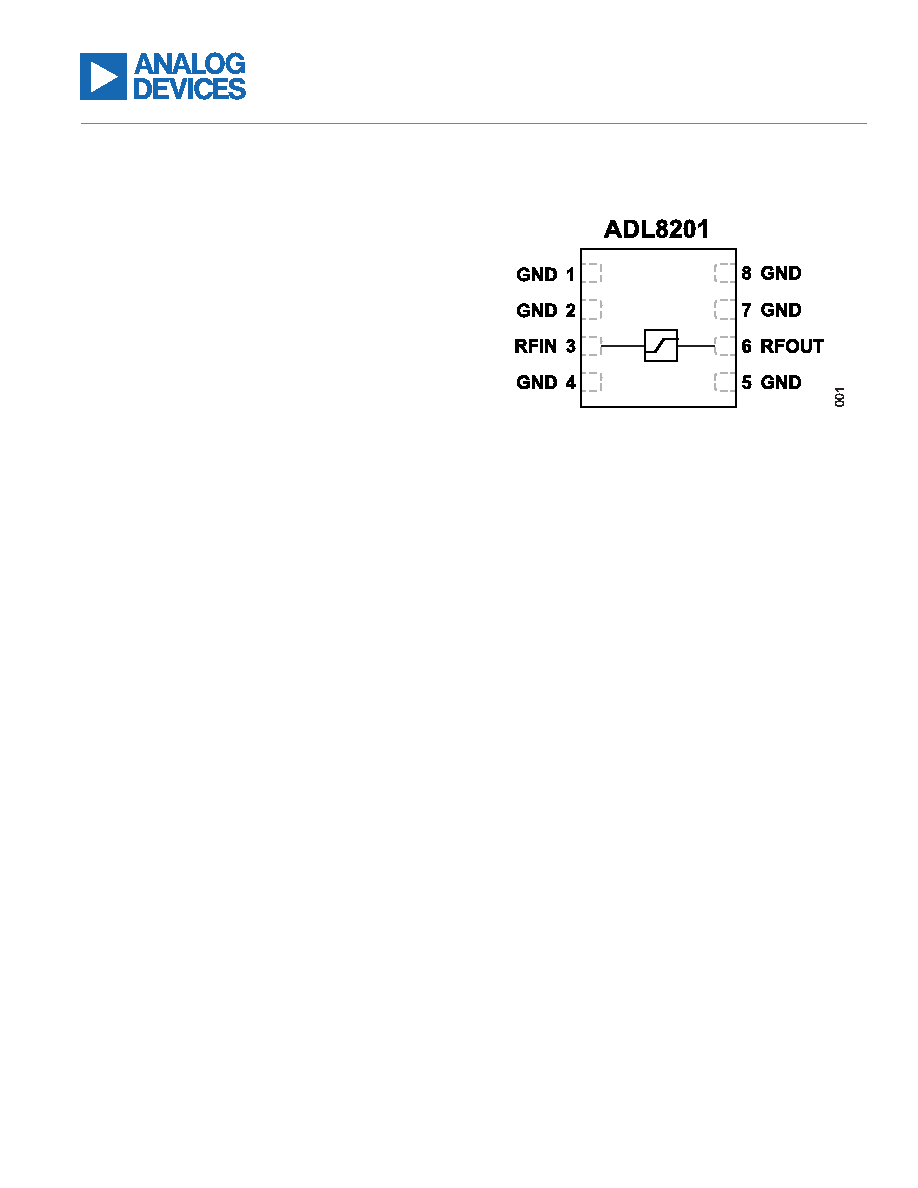

FUNCTIONAL BLOCK DIAGRAM

Figure 1. Functional Block Diagram

GENERAL DESCRIPTION

The ADL8201 is a DC to 30GHz, high power, reflective RF limiter

ensuring protection of sensitive circuitry.

Typical insertion loss, input return loss (RFIN), and flat leakage

are 0.7dB, 18dB, and 15dBm, respectively, from 20GHz to 30GHz.

The ADL8201 can withstand 37dBm continuous wave at 6GHz and

>44dBm pulsed RF input to 2GHz. The recovery time is less than

10ns. The ADL8201 is internally matched to 50Ω and does not

require any external circuitry.

The ADL8201 is fabricated on a gallium arsenide (GaAs) and

housed in an RoHS-compliant, 2mm × 2mm × 0.85mm, 8-lead

LFCSP. The ADL8201 is specified for operation over an extended

temperature range of −55°C to +125°C.
