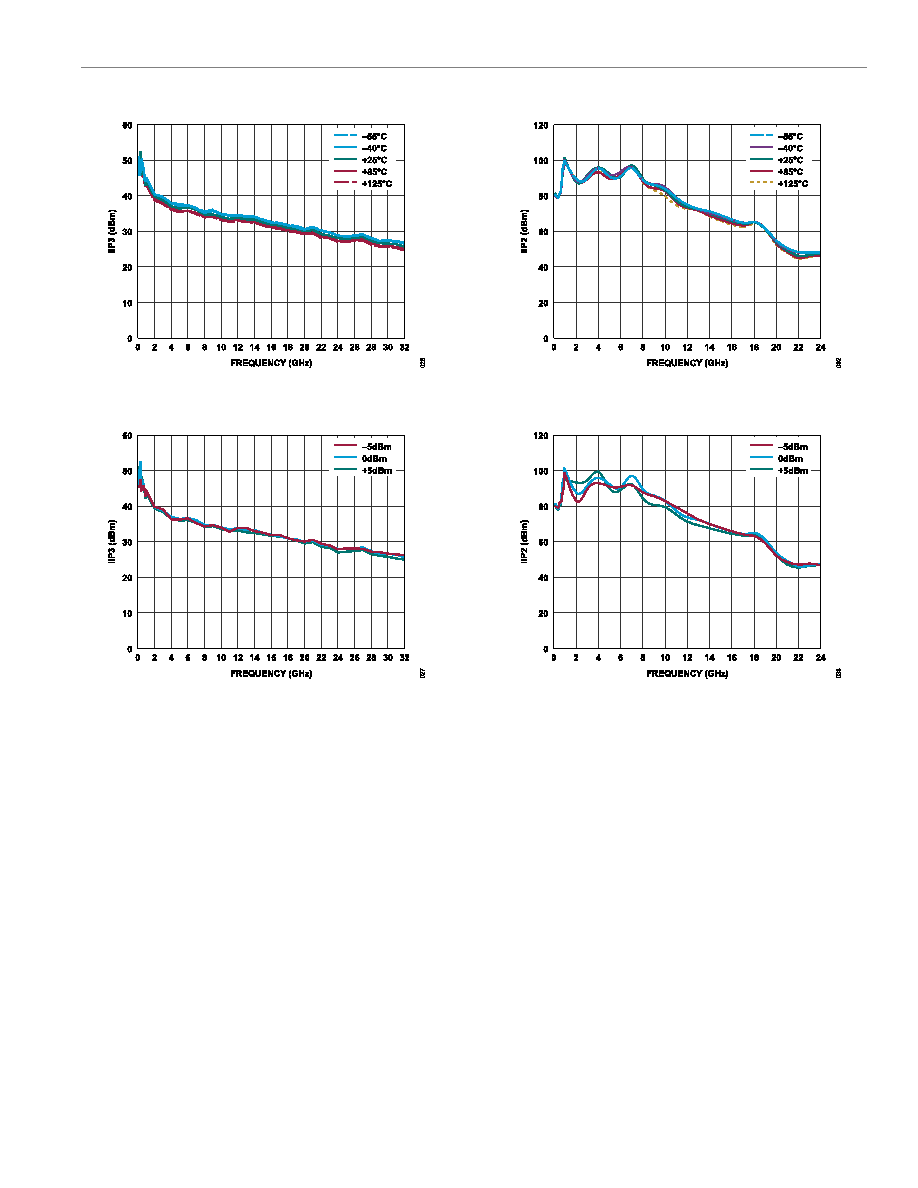

background image
Data Sheet
ADL8201
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 10 of 13
Figure 23. IIP3 vs. Frequency for
Various Temperatures
Figure 24. IIP3 vs. Frequency for
Various PIN Values per Tone
Figure 25. IIP2 vs. Frequency for
Various Temperatures
Figure 26. IIP2 vs. Frequency for
Various PIN Values per Tone
