The instrument also supports a compatibility mode that, when enabled,

makes the 2 Series MSO compatible with the programmatic commands

of the legacy TDS2000, TBS1000, and MSO/DPO2000 family of

Tektronix oscilloscopes. This compatibility mode makes it easy to

replace an older model oscilloscope in an existing test system with

the 2 Series MSO.

Battery pack (optional)

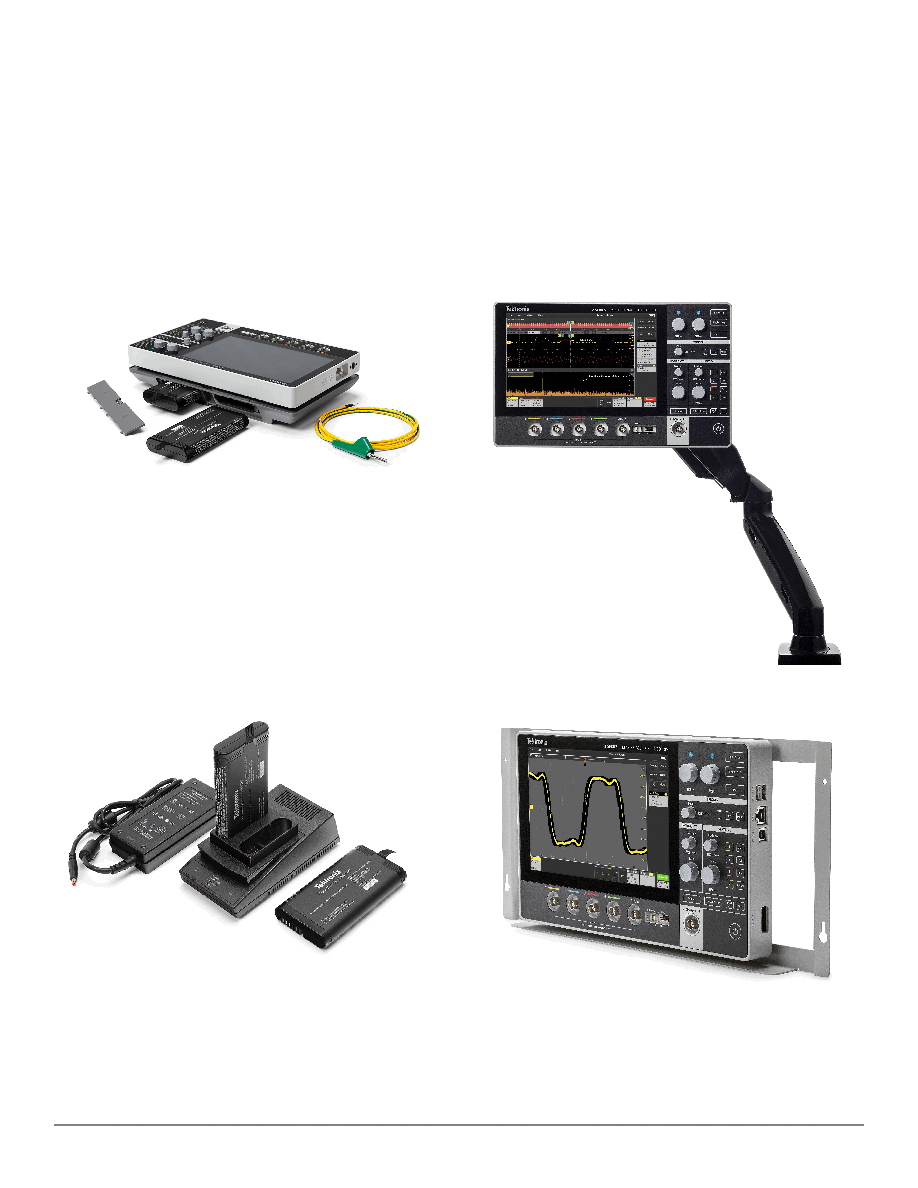

Battery pack with two battery slots can be mounted on the back of the instrument

The 2 Series MSO also supports an optional battery pack that provides

additional flexibility to perform measurements in areas where there is

no AC power available such as testing equipment in the field.

The battery pack has 2 battery slots and can support hot swapping of

the batteries during operation to extend run time on batteries.

The batteries are charged when the instrument is on AC power, or they

can be charged using an external charger.

External battery charger

Accessories

Apart from the battery pack several other accessories are available to

make the 2 Series MSO suitable for a variety of applications

• Rack mount kit to mount the instrument in a rack for production

• A bundle of carrying bag, protective rubber case, and kick stand

making it easy to carry the instrument into the field

• Hard travel case for shipping the instrument

• The 100 mm x 100 mm standard VESA interface on the back of the

instrument is compatible with a wide variety of accessories

MSO24 mounted on an off the shelf arm

Rackmount kit

2 Series MSO Datasheet
