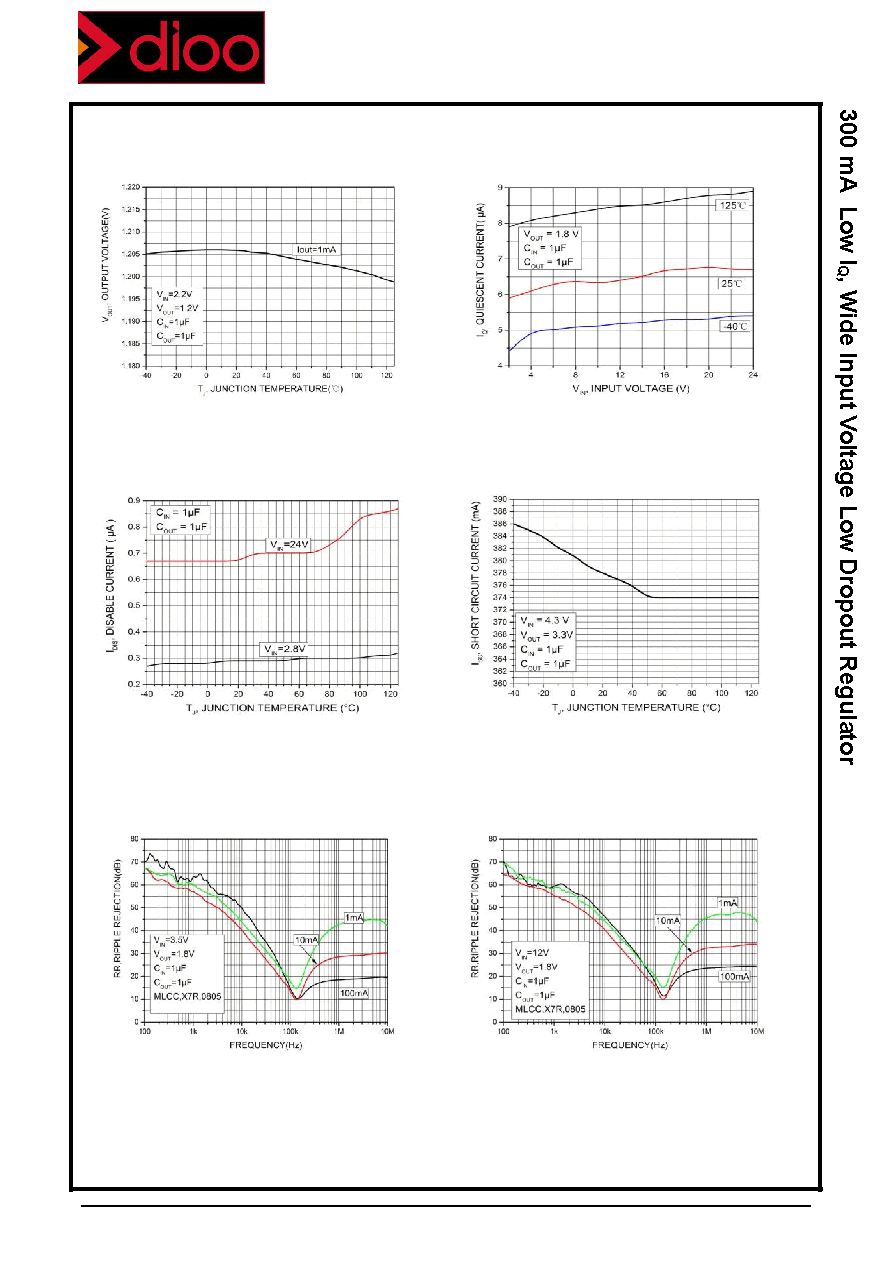

background image
DIO7708
www.dioo.com
© 2025 Dioo Microcircuits Co., Ltd. Jiangsu
DIO7708• Rev. 2.4
Typical Performance Characteristic
Figure 4. Output voltage vs. Temperature
Figure 5. Quiescent current vs. Input voltage
VOUT = 1.2 V
VOUT = 1.8 V
Figure 6. Disable current vs. Temperature
Figure 7. Short circuit current vs. Temperature
VOUT = 1.8 V
VOUT = 3.3 V
Figure 8. Power supply rejection ratio vs. Current
Figure 9. Power supply rejection ratio vs. Current
VIN = 3.5 V, COUT = 1 μF
VIN = 12 V, COUT = 1 μF
