DIO7708
www.dioo.com
© 2025 Dioo Microcircuits Co., Ltd. Jiangsu
DIO7708• Rev. 2.4

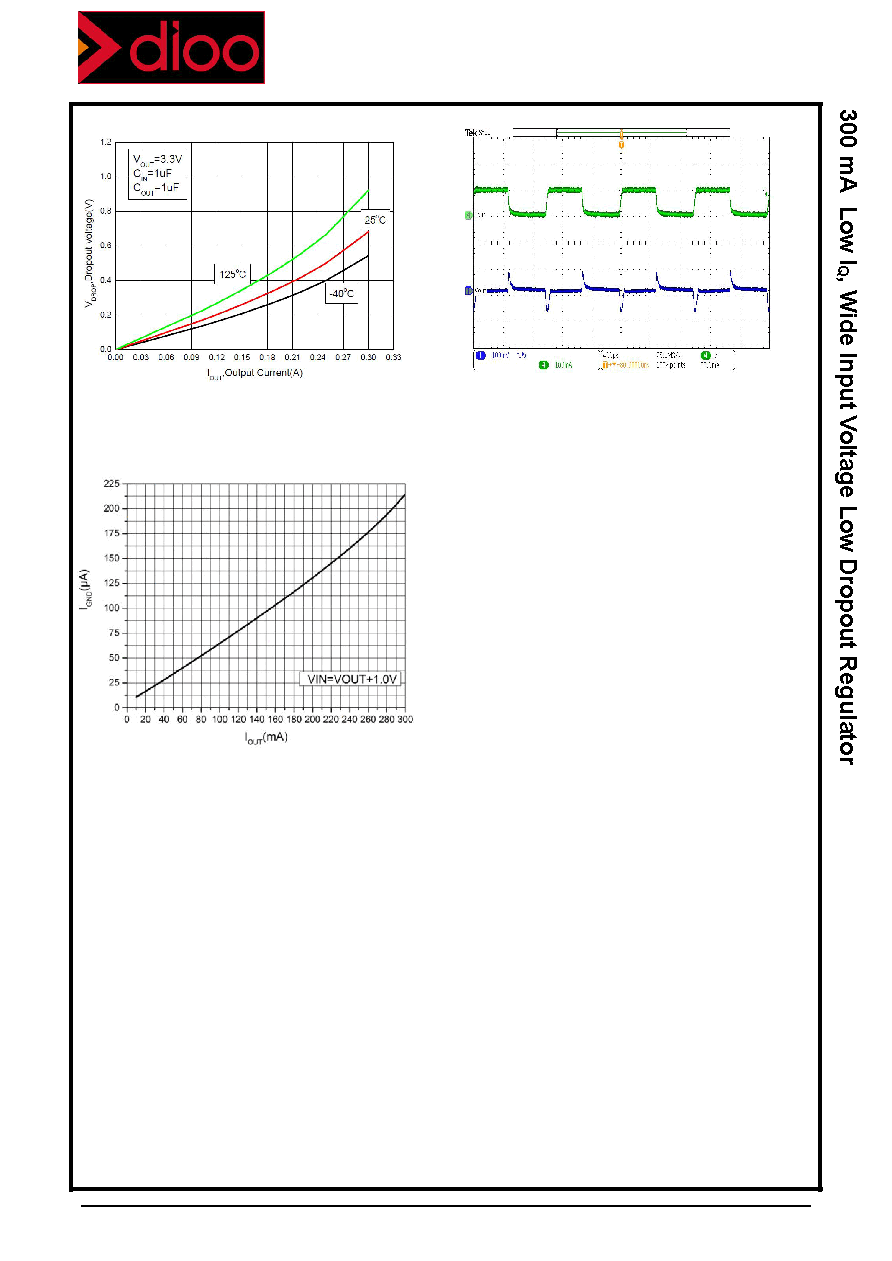

Figure 10. Dropout voltage vs. Output current
Figure 11. Load transient response
VOUT = 3.3 V
VIN = 2.8 V, VOUT = 1.8 V, ILOAD = 5 mA ~ 100 mA
Figure 12. IGND vs. IOUT
