LED7707
Operation description
21/48

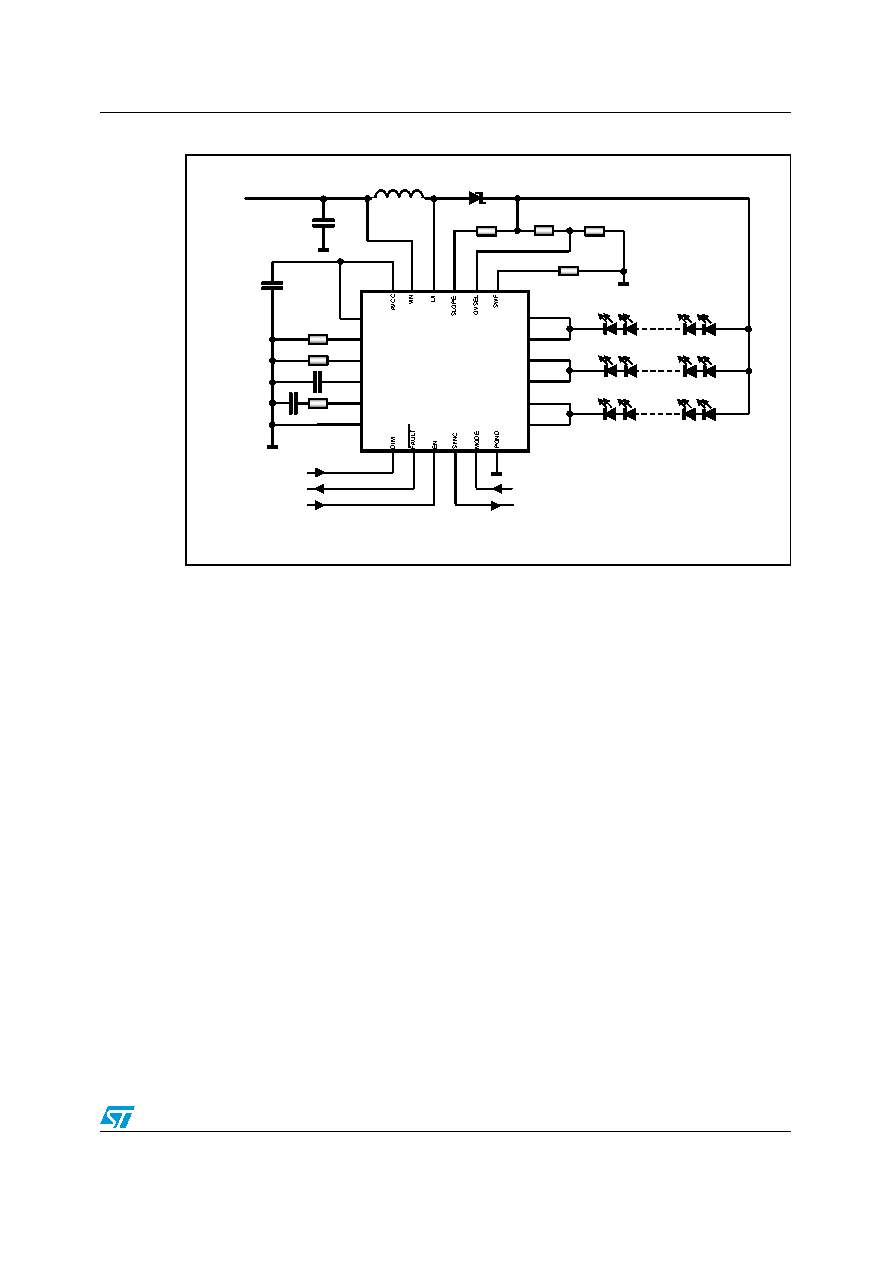

Figure 14.
Rows parallelism for higher current
ROW0
ROW1
ROW2
ROW3
ROW4
ROW5
VCC
BILIM
RILIM
SS
SGND
VIN
COMP
High Current WLEDs
Enable
Dimming
Fault
LED7707
Sync Output
Faults Management Selection
AM00591v1
